User Manual
Aolynk DR814Q ADSL2+ Broadband Router
5 Advanced Configuration
66
In this way, all applications provided by NetMeeting can be used normally after a LAN
user calls the Internet user and you can just add the access policy suitable for packets
on the TCP 1720 port on the corresponding page (see Figure 5-19).To make the
Internet users call LAN users and use NetMeeting normally, you can just configure the
virtual server on the TCP 1720 port on the corresponding page (see Figure 5-15) and
combine it with the port trigger mentioned previously.
5.2.4 IDS
IDS protects the current network from the following attacks:
z Denial of Service (DoS).
z Port scanning.
z Web spoofing.
IDS also implements the blacklist function. It stops external hosts that try to invade the
network from accessing the DR814Q within a specific time limit.

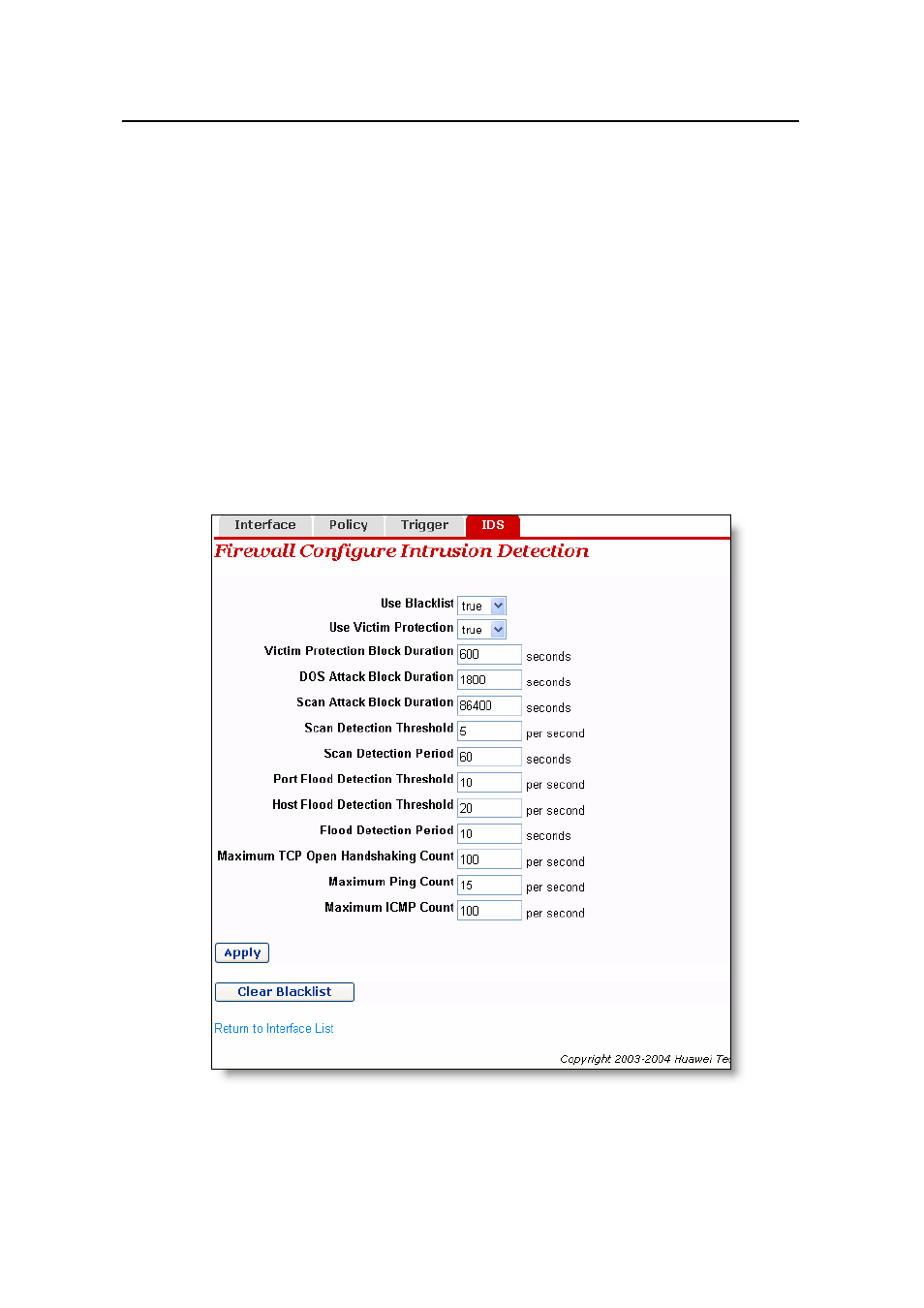

Figure 5-31 IDS configuration
