User Manual
Aolynk DR814Q ADSL2+ Broadband Router
5 Advanced Configuration
71
IV. Configure a DMZ host in the same segment with a DMZ zone
Make sure that the IP address of the DMZ host is in the same segment as that of the
above configured virtual interface. For example, configure the IP address to
172.16.1.100, the mask to 255.255.0.0, and enable the corresponding Internet service,
and then connect this DMZ host to the LAN port of the DR814Q.
V. Configure the corresponding virtual server
To configure the corresponding virtual server, refer to section 5.2.1 IV. 2) ”Virtual
server”.
Configure the DMZ host as a virtual server to provide the Internet services, such as http,
ftp and telnet.
Thus, the entire DMZ is configured completely and securely.
5.4 Route Configuration
The static route configuration makes the DR814Q to communicate with PCs on
different network segments. This option allows you to create static IP routes to
destination addresses by an IP interface name or a gateway address.
To access the DR814Q configuration page, follow either of these steps:
z Click [WAN Setup] in the navigation bar to enter the [WAN Connections] page, and
then click .
z Click [LAN Setup] in the navigation bar to enter the [LAN Connections] page, and
then click .
z Click [Status] in the navigation bar to enter the [Status] page, and then click
.

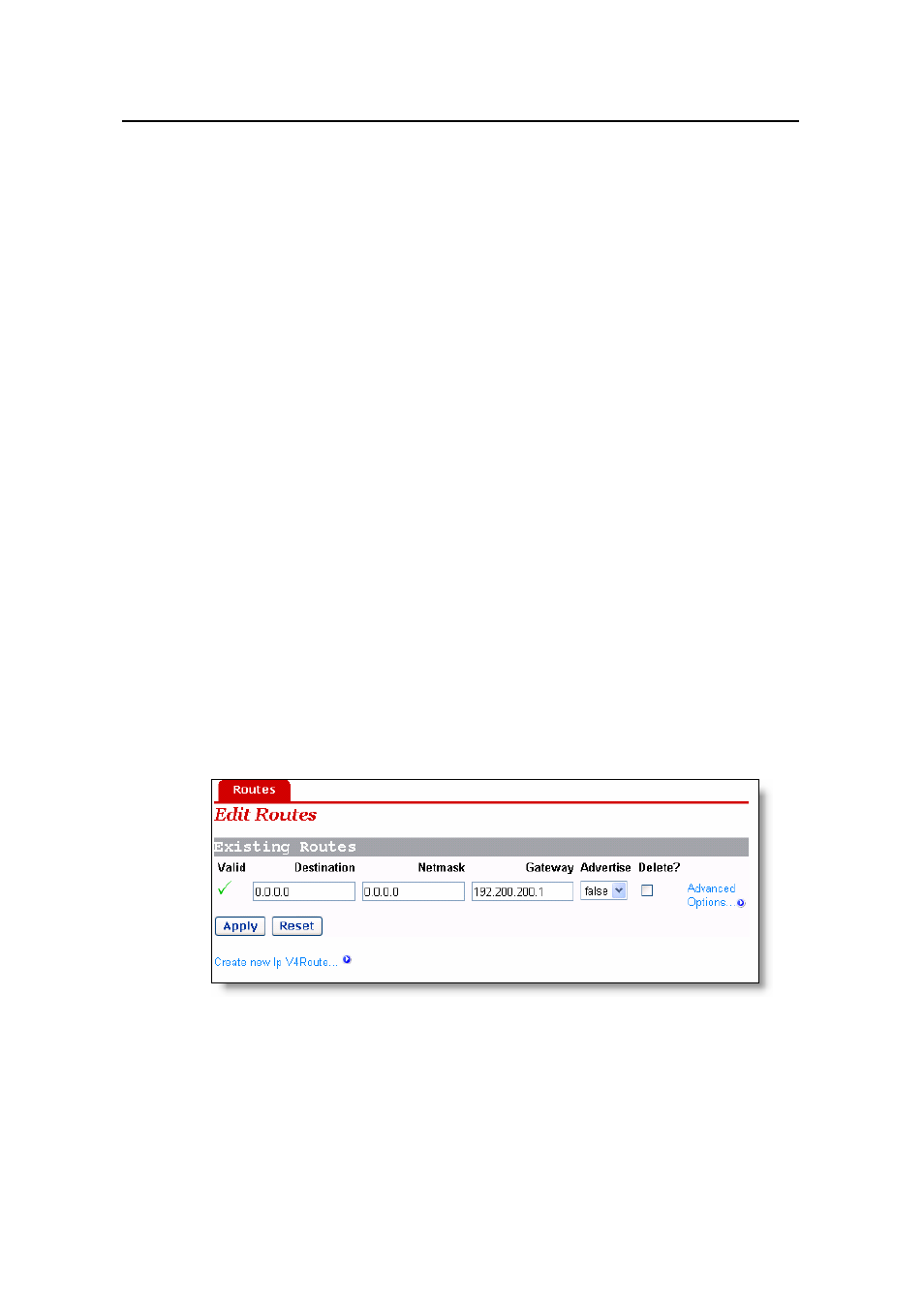

Figure 5-35 Route configuration
This page allows you to:
z View the information about existing routes
z Modify the route information in the route list
z Add a new route
