Huawei DR814Q - Manual (Page 30)

User Manual
Aolynk DR814Q ADSL2+ Broadband Router
4 Web-based Basic Configuration
25

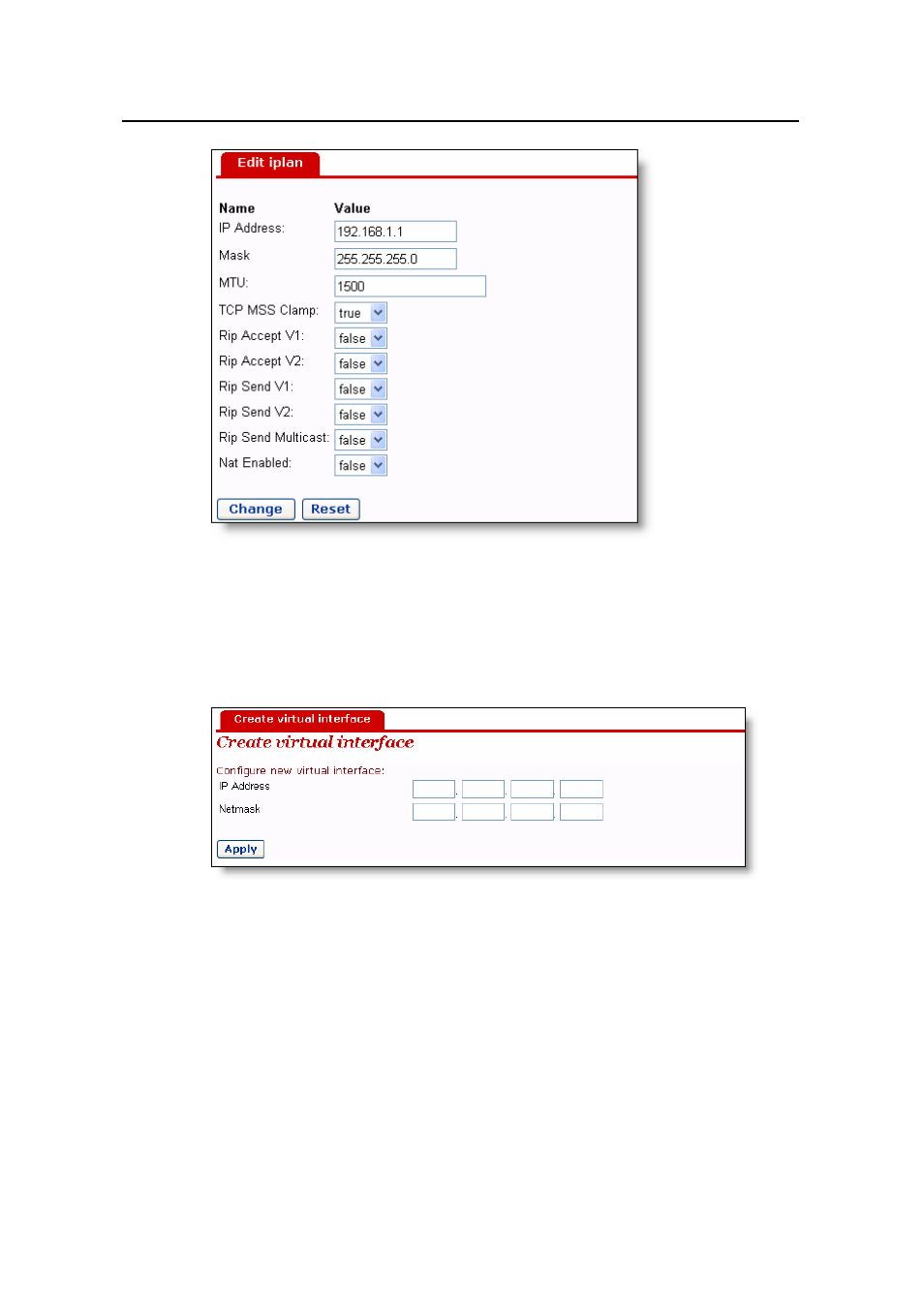

Figure 4-17 Modify the iplan interface
II. Create a new virtual interface
To create a new virtual interface, click on the [LAN
connections] page (see Figure 4-16) to enter the page as below.
Figure 4-18 Create a virtual interface
Type in the IP address and subnet mask (you cannot configure the IP address of the
virtual interface and that of the LAN port to be in the same subnet) and click .
The information on this virtual interface is displayed on the page as below.
