Bind other two LAN ports to PVC 0/100, and the PCs connecting to these ports
access the Internet through PPPoE dial-up connections.
z
Route the last LAN port to access the Internet and apply NAT-enabled PPPoE
service on this port. Bind it to PVC 8/35. The user name and password your ISP
assigns are username and myPassword respectively.
Follow these steps to achieve the settings on your DR814Q.
1) On the [Ethernet Port Attachment Setting] page (see Figure 5-2), select the
Attached to PVC1 option from the LAN1 drop-down list to bind LAN1 to PVC1
and bind LAN2 and LAN3 to PVC2 in the same way. Leave the LAN4 default
setting Attached to Router untouched. Click the
configuration.
2)
In the [PVC Setting] section, set 0/35 as the VPI/VCI value of PVC1, 0/100 as that
of PVC2.Click
you do not use PVC3 and PVC4 here, there is no need to specify VPI/VCI values
for them.

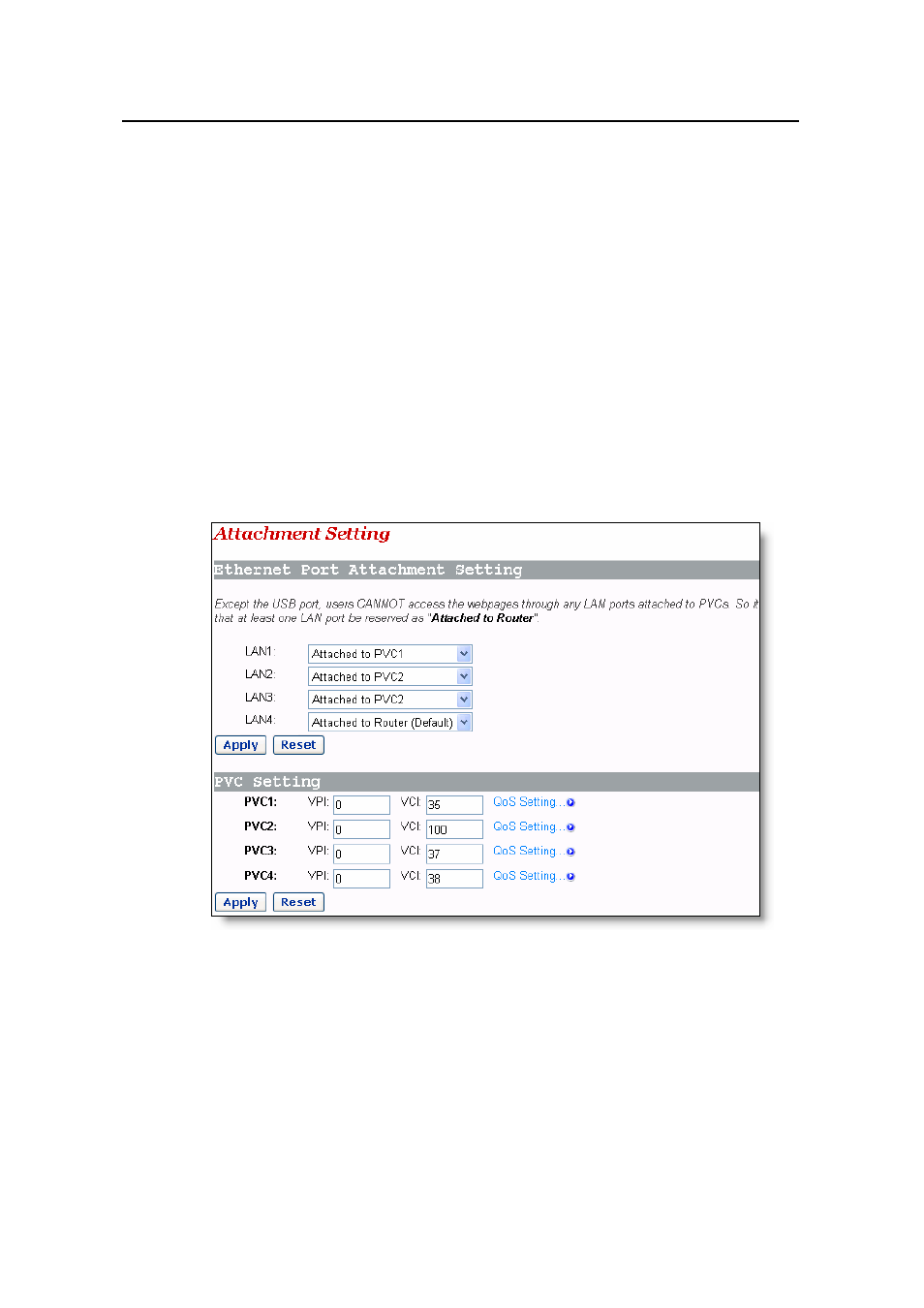

Figure 5-2 Actual configuration on the Attachment Setting page
3)
Click
the [WAN Connections] page. Set the values of VPI and VCI to 8 and 35
respectively, type userName, myPassword, and myPassword in the PPPoE
Username, PPPoE Password, and PPPoE Password (confirm) text boxes
respectively and then click
