Huawei DR814Q - Manual (Page 68)

User Manual
Aolynk DR814Q ADSL2+ Broadband Router
5 Advanced Configuration
63
5.2.3 Trigger
A security trigger is used to deal with application protocols that set up separate
sessions. Some application protocols, such as NetMeeting, open the primary sessions
and secondary connections at the same time during the normal operations. The trigger
tells the security mechanism to handle these secondary sessions and instruct it how to
handle them. The trigger handles the situation dynamically, allowing the secondary
sessions only when appropriate. These newly triggered sessions are not restricted by
the firewall.

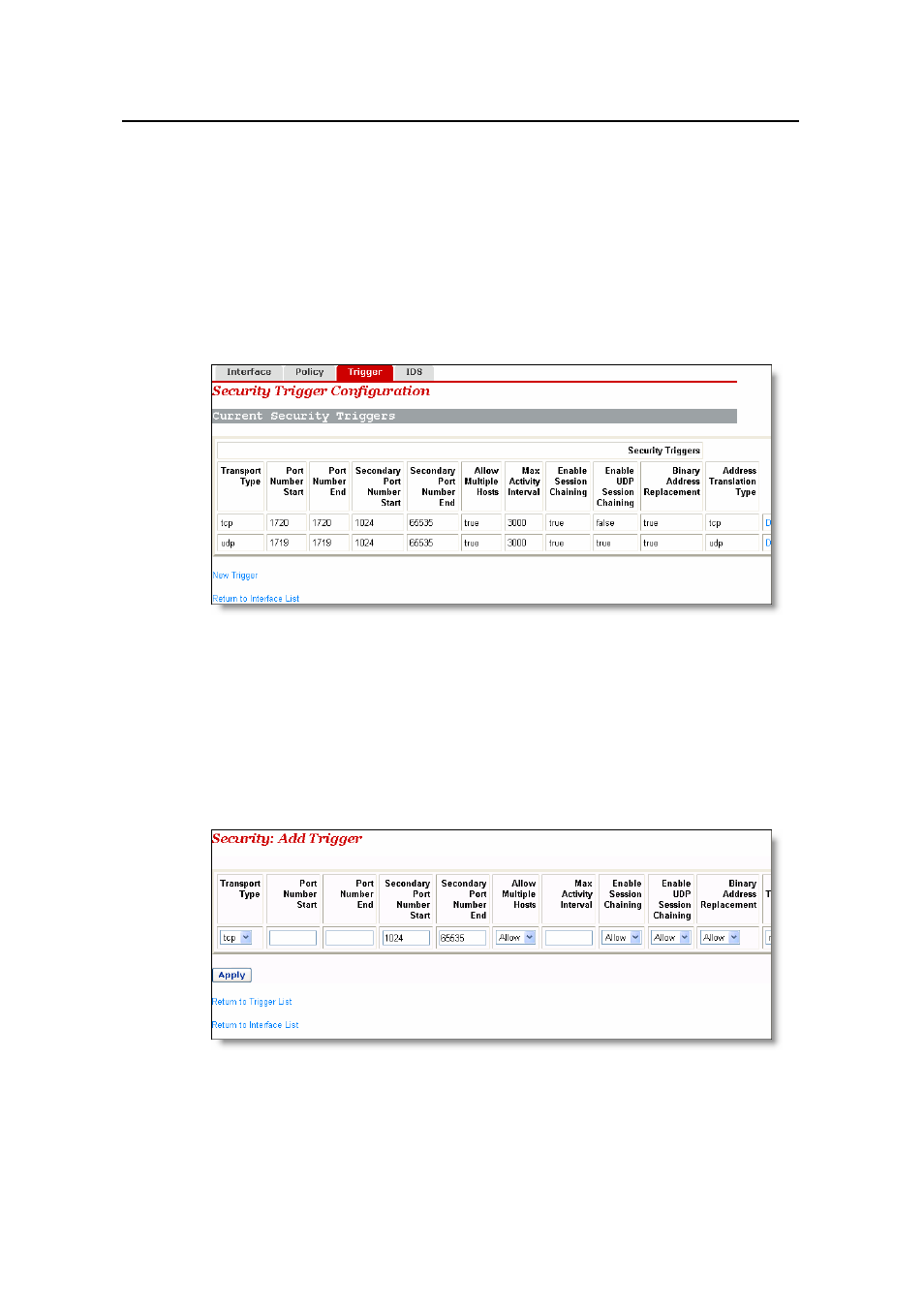

Figure 5-27 Security trigger
This page allows you to:
z View the information in the current security trigger list.
z Create a new security trigger and add it to the current security trigger list.
z Delete an existing security trigger.
To create a new security trigger, click to enter the page as below.
Figure 5-28 Add a security trigger
