User Manual
Aolynk DR814Q ADSL2+ Broadband Router
4 Web-based Basic Configuration
13

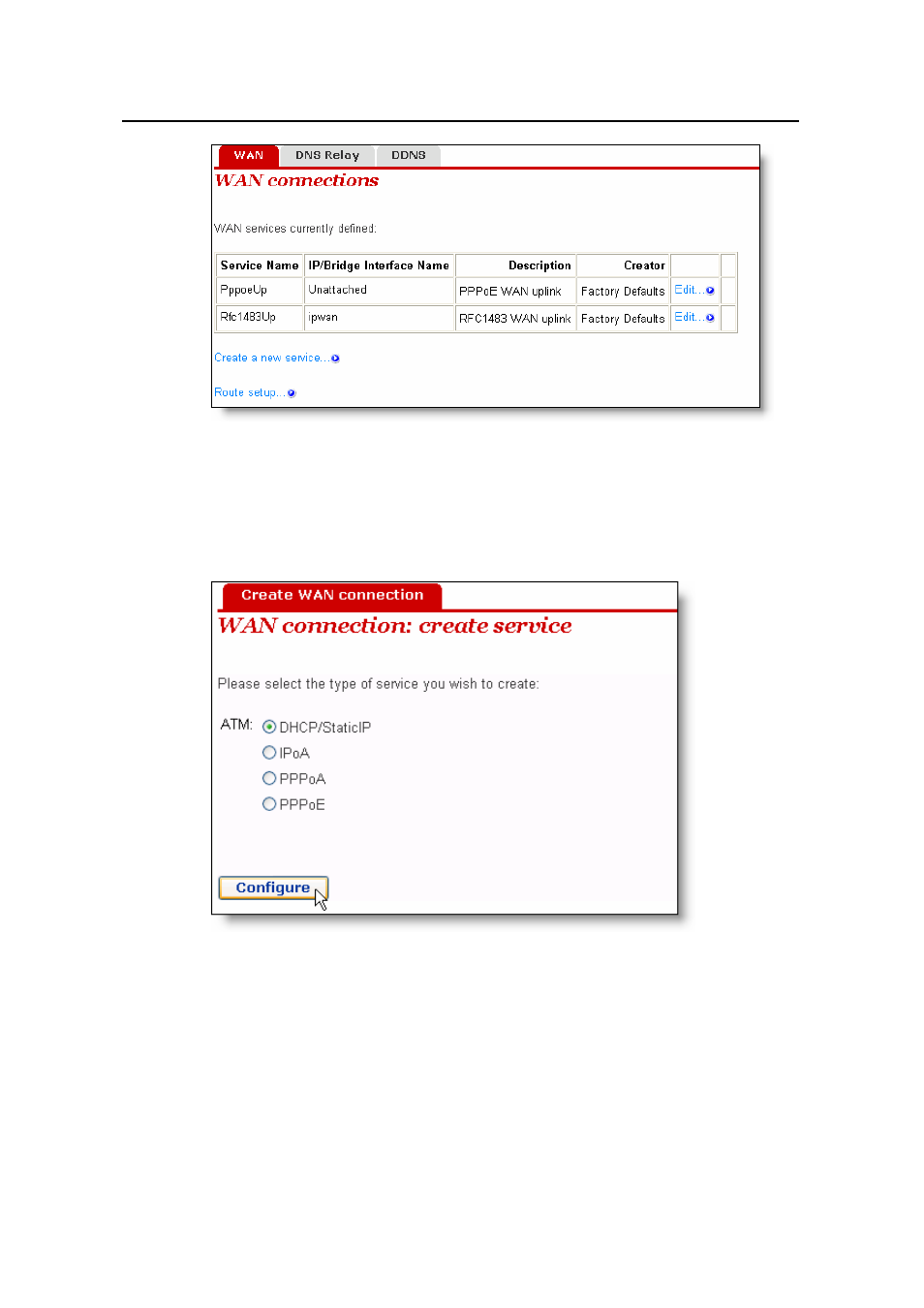

Figure 4-3 WAN
I. Create a new service
To create a new service, click
create service] page (see Figure 4-4).
Figure 4-4 Create a WAN service
This page provides four modes for WAN connection: DHCP/StaticIP, IPoA, PPPoA and
PPPoE. The following introduces their configurations respectively.
1) DHCP/Static
IP
The IP address in this mode can be manually specified or automatically assigned by
your ISP. The former requires you to manually specify the DNS server address on the
[DNS Relay] page. For details, refer to section 4.2.2 “DNS Relay”.
