User Manual
Aolynk DR814Q ADSL2+ Broadband Router
5 Advanced Configuration
48
2) Select
the
VBR-rt option from the ATM Traffic Class drop-down list.
3) Set Peak Cell Rate to 2000 (approximately 800 Kbps), Max Burst Size to 6000,
and Sustainable Cell Rate to 1000 (approximately 400 Kbps).
4)
Click

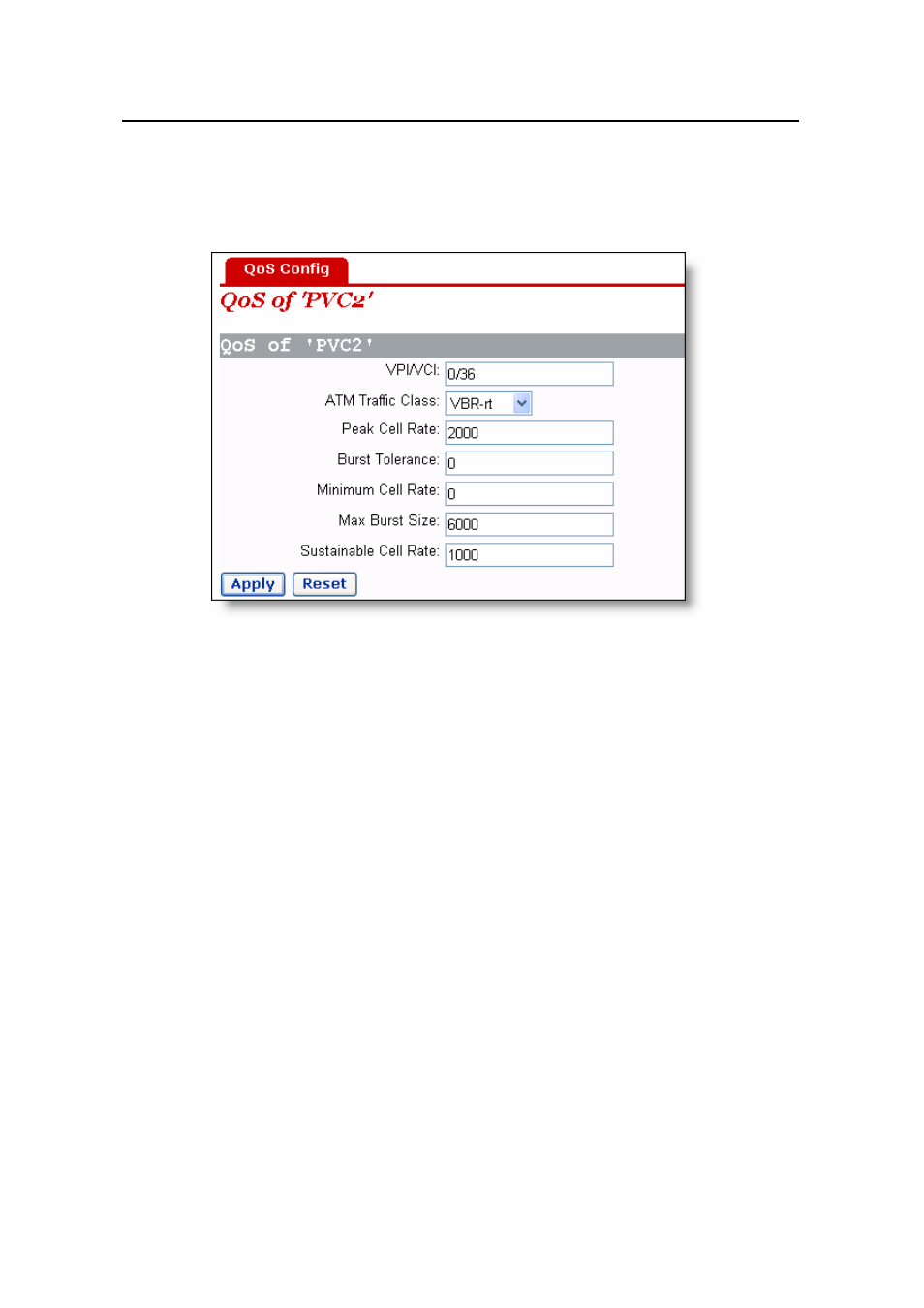

Figure 5-6 QoS configuration
For PVC1, keep the default UBR settings unchanged. Thus, PVC1 can occupy all the
upstream bandwidth when there is no traffic on PVC2, and PVC2 can always be
guaranteed with an average bandwidth of 400 Kbps for audio and video services over it.
This ensures normal upload over PVC1 and non-interrupted real-time communication
over PVC2.
5.2 Security
Click [Security] in the navigation bar to enter the corresponding page where four tabs
are available: Interface, Policy, Trigger and IDS. Click any tab to enter your desired
configuration page.
5.2.1 Interface
Every firewall policy is intended for access between security interfaces. This page
allows you to enable the security function and configure security interfaces.
