Chapter Three: Using Modem Monitor Status Viewer 45
Status Viewer

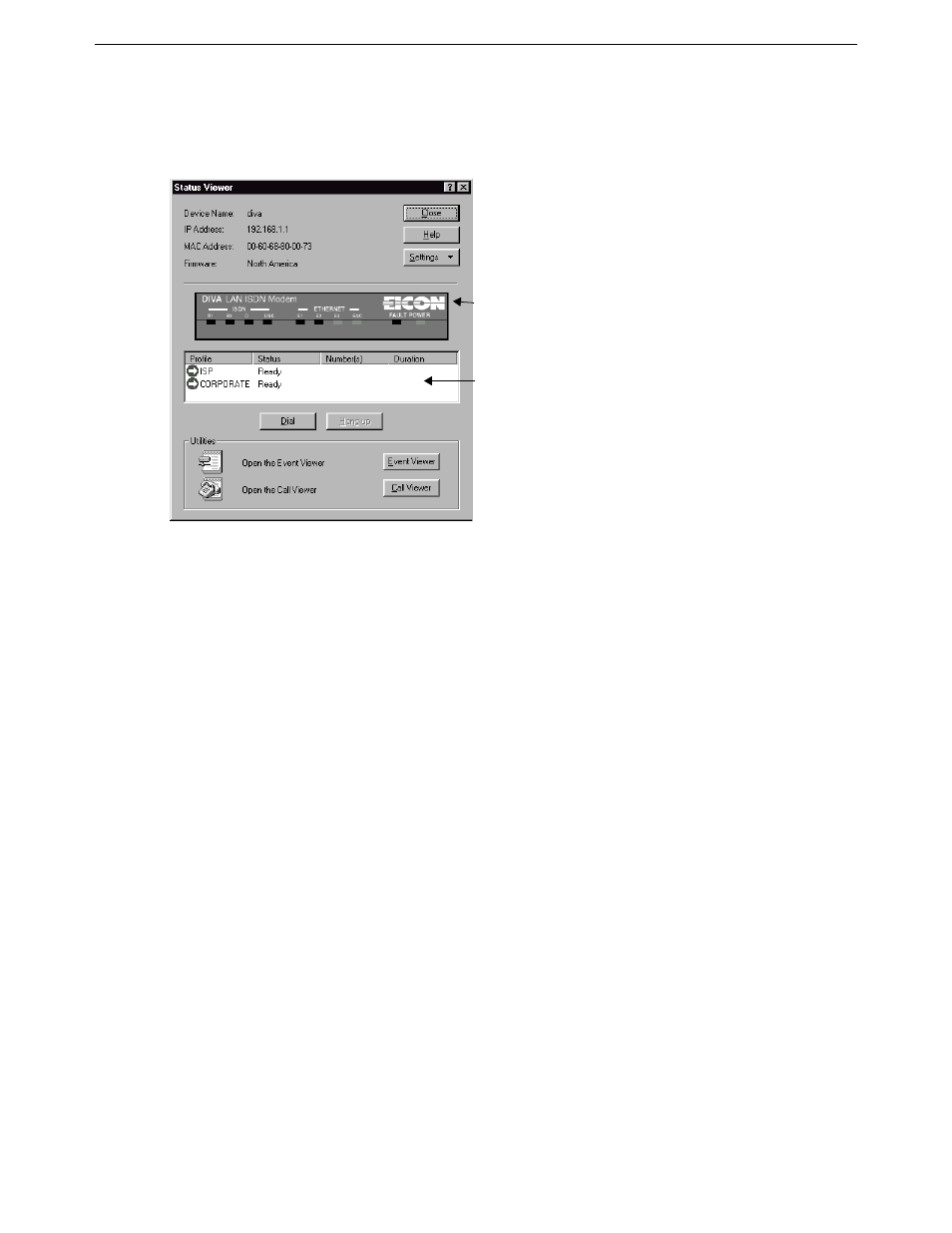

Lets you view the operational status of the DIVA LAN ISDN Modem and manually manage your connections.
• Device name: Name assigned to the DIVA LAN ISDN Modem.
• IP address: IP address assigned to the DIVA LAN ISDN Modem.
• MAC address: Ethernet address assigned to the DIVA LAN ISDN Modem.
• Firmware: Displays the version of the current firmware loaded on the DIVA LAN ISDN Modem.
Profile table
• Profile: Name of the profile.
• Status: Status of the profile.
• Number(s): If a profile is active, this is the number that was dialed.
• Duration: Length of time the profile has been connected.
• Dial: Use this button to manually connect a profile.
• Hangup: Use this button to manually disconnect a profile.
Utilities
• Event Viewer: Starts the Event Viewer, which lets you view the list of messages recorded in the log file.
• Call Viewer: Starts the Call Viewer, which lets you view information for all incoming and outgoing calls.
Displays the list of
connection profiles.
Shows the state of
the front panel LEDs
in real time.
