Chapter Ten: Other Configuration Tools Configuration options 141
Configuration options
Local configuration

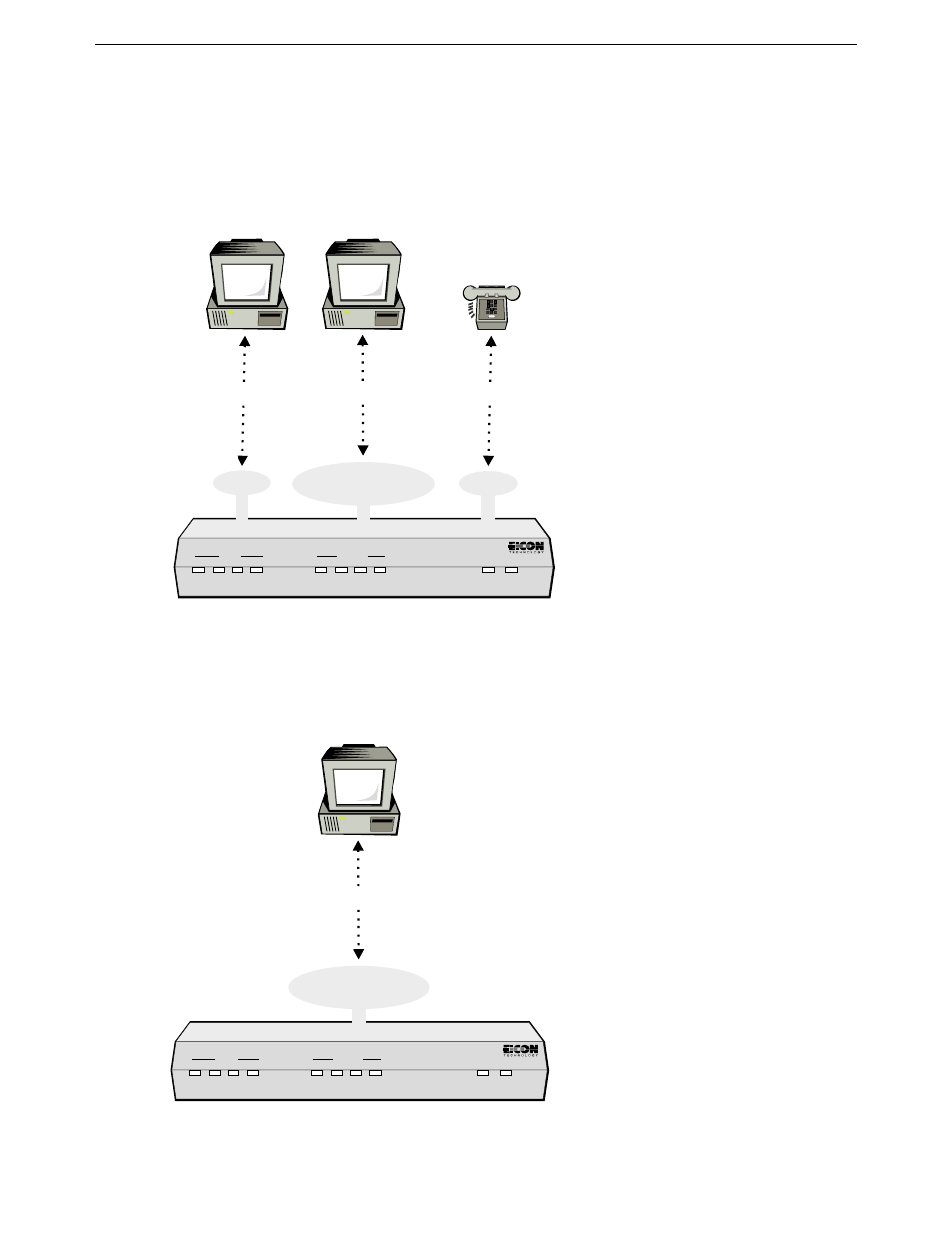

The following diagram illustrates the configuration interfaces that are accessible locally.
Remote configuration
The following diagram illustrates the configuration interfaces that are accessible remotely, using the ISDN line
to call in.
Note Telnet software is required to access the CLI interface.
IP via Ethernet
FAULT POWER
LAN ISDN Modem DIVA
ISDN
E4/C E1 E2 E3 LINK
Ethernet
B1 B2 D
®
via serial cable via phone cable
Local
Touch-Tone
Phone
Local
Computer
Local
Computer
CLI CLI TFTP Web DTMF
CLI TFTP Web
IP via ISDN
FAULT POWER
LAN ISDN Modem DIVA
ISDN
E4/C E1 E2 E3 LINK
Ethernet
B1 B2 D
®
Remote
Computer
