Preliminar y – Extron electronic VGA MATRIX SWITCHERS MVX PLUS 128 User Manual
Page 93
5-5
MVX Plus 128 VGA Matrix Switchers • Matrix Software
PRELIMINAR
Y
4
.

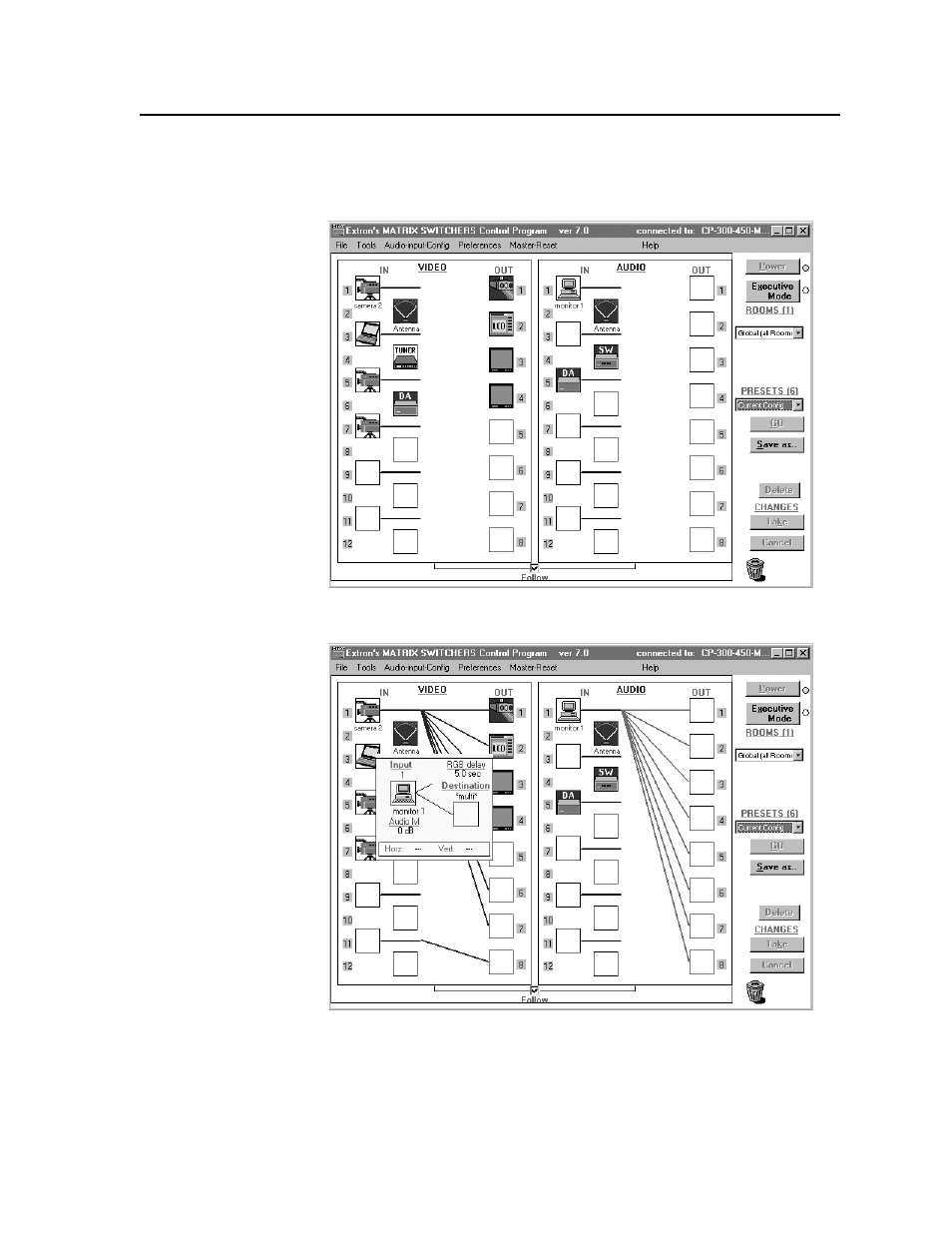

The Extron Matrix Switcher+ Control Program window (fi gure 5-3 and
fi gure 5-4) appears. The window displays the current confi guration of the
attached matrix.
Figure 5-3 — Extron Matrix Switcher+ Control Program window (blank)
Figure 5-4 — Sample program window (complete)
