3-17 MVX Plus 128 VGA Matrix Switchers • Operation
PRELIMINAR
Y
I/O grouping
I/O grouping is a matrix switcher feature that allows you to subdivide the front
panel control of the matrix into four smaller functional sub-switchers and limit tie
creation from the front panel only. Inputs and outputs can be assigned to one of
four groups or not assigned to any group.
When you are creating ties on the front panel, inputs and outputs that are assigned
to a group can be tied only to other outputs and inputs within the same group. For
example, a front panel operator cannot tie an input that is assigned to group 1 to an
output that is assigned to group 2. Ungrouped inputs and outputs can be switched
to outputs and inputs in any group. Ties between groups (an input in group 1 tied
to an output in group 2) can be created under RS-232/RS-422 or Ethernet control.
Suggested applications for the I/O grouping feature include:
• Segregating specifi c video formats to prevent an input in one video format
from being inadvertently applied to an output device that supports another
video format (fi gure 3-27)
• Segregating input and output devices that are in separate rooms
• Isolating video from being displayed on specifi c output devices for
operational security reasons
VSC 700 SCAN CONVERTER SIZE MIN/MAX NEXT MENU FREEZE
RESET IR
CENTER/PAN/SIZE
USP 405 UNIVERSAL SIGNAL PROCESSOR
ADJUST MENU
NEXT FREEZE 1 2 3 4 5
PICTURE ADJUSTMENTS CENTER SIZE BRT/CONT COL/TNT ZOOM DETAIL INPUTS RGB UNIVERSAL FREEZE COMPOSITE S-VIDEO SDI
INPUTS
1 2 3 4 5 6 7 8 9 10 11
OUTPUTS
1 2 3 4 5 6 7 8
4 input, 2 output
composite video matrix
Camera #1
Camera #4
Monitor
Projector
VSC 700 Computer #1
Computer #3
3 input, 2 output
S-video matrix
VCR
DVD
Monitor
Monitor
Document Camera
Group 1 Group 2
Group 1 Group 2 Group 3
3 input, 4 output
RGBHV matrix
5
6
7
8
8 9 10
Input
Output
1 2 3
Input
1
2
4
Output
3
4
5 6 7
Input
Output
Group 3
Monitor
USP 405

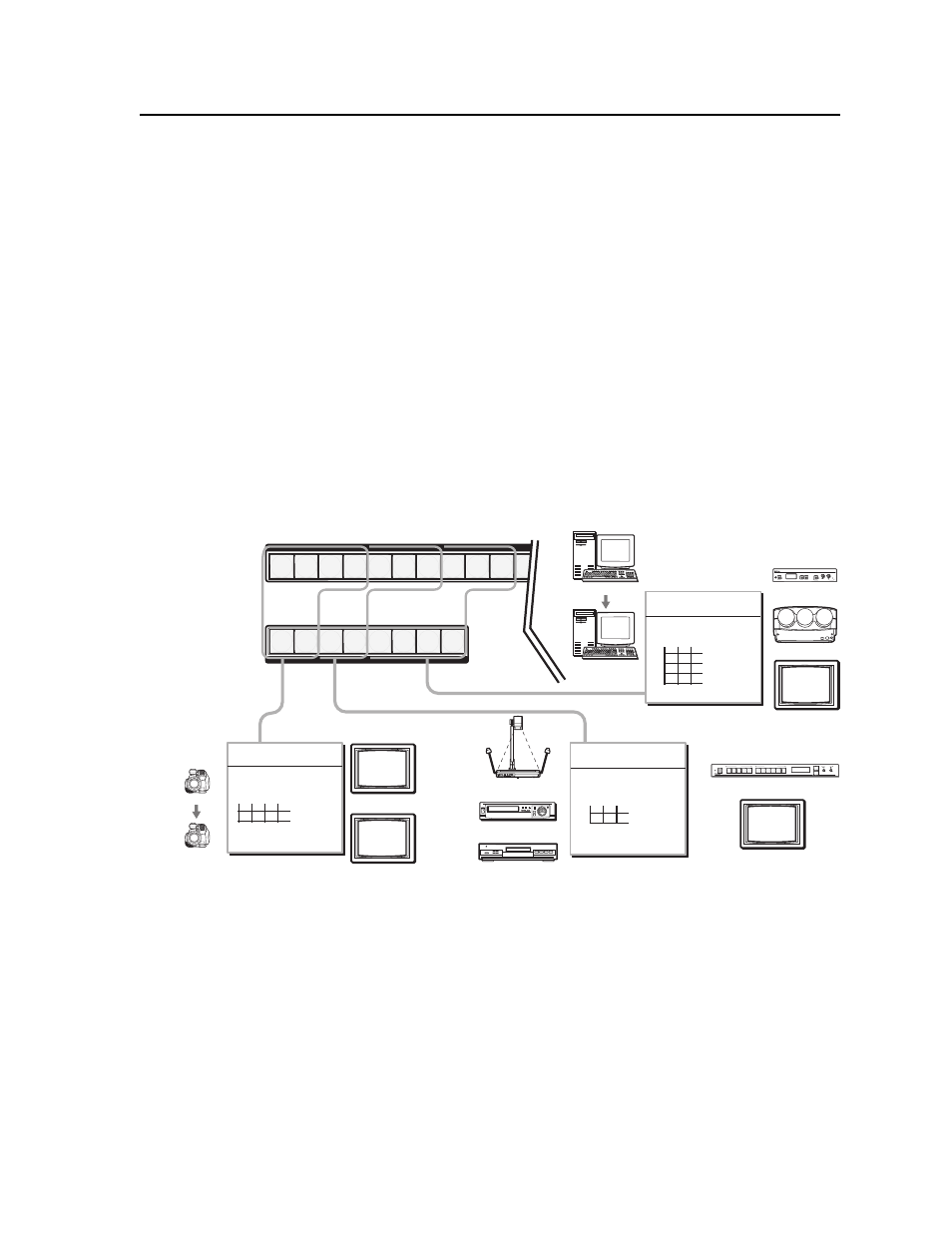

Figure 3-27 — I/O grouping of incompatible video formats
