6-15 MVX Plus 128 VGA Matrix Switchers • HTML Operation
PRELIMINAR
Y
Muting and unmuting one or all outputs
Mute one or all outputs as follows:
1 . To select an individual output to mute or unmute , click the Output drop box.
A drop down scroll box appears (fi gure 6-14).

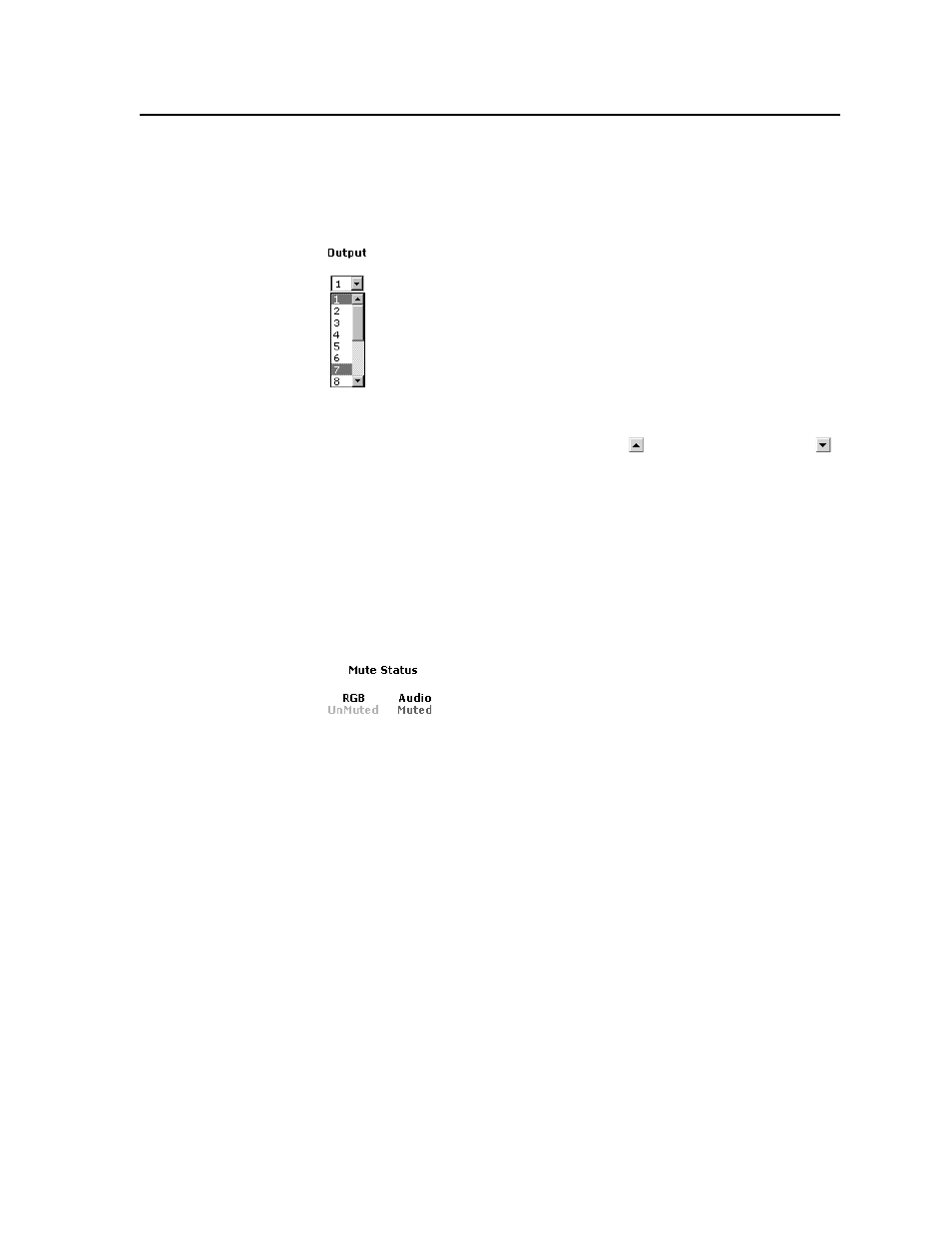

Figure 6-14 — Output selection drop box
2 . Click and drag the slider or click the scroll up button or the scroll down
button until the desired output is visible.
3 . Click the desired output.
4 . Click the Video, Audio, or Follow button to select video, audio, or both for
muting or unmuting. Each mouse click on a button toggles the other two
buttons off.
5 . Click the Mute or UnMute button to mute or unmute the selected output.
Click the Mute All or UnMute All to mute or unmute all of the outputs.
Observe the Mute status indications on the page (fi gure 6-15). Unmuted is
displayed in green and muted is displayed in red.
Figure 6-15 — Mute status indications
