Matrix Software, cont’d

MVX Plus 128 VGA Matrix Switchers • Matrix Software

5-14

PRELIMINAR

Y

Uploading HTML fi les

You can create customized HTML pages for the switcher to display. The HTML
Files List window (fi gure 5-8) provides a way to view the contents of the switcher’s
fi le system and to upload custom HTML pages to the switcher.

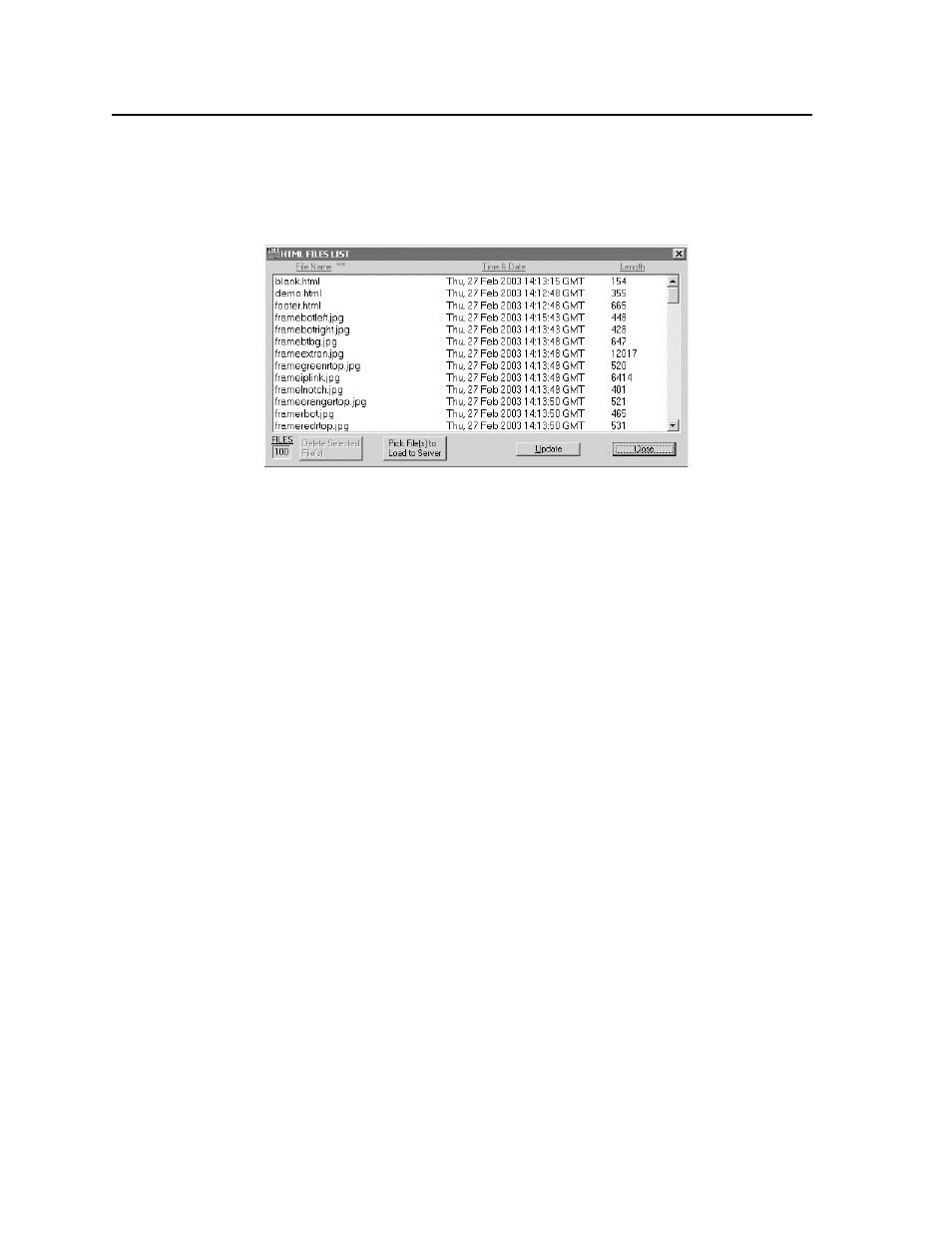

Figure 5-8 HTML Files List window

Upload HTML pages as follows:

N The

fi les listed in fi gure 5-8 are shown for example only and may not be present

on your switcher.

N The HTML Files List window is for inserting your own HTML pages. This is

not

the window to replace the fi rmware that controls all switcher operation.

See Updating fi rmware, earlier in this chapter, to replace the fi rmware.

N The following characters are invalid in fi le names:

{space} + ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

1

.

Connect the PC to the MVX Plus 128 switcher via the switcher’s
RS-232/RS-422 port or Ethernet port.

2

.

Start the Matrix Switcher+ Control Program and connect to the MVX Plus 128
switcher. See Using the software in this chapter, steps 1 through 4, starting on
page 5-3.

3

. Click

on

Tools > HTML File Manager.

4

. Click

the

Pick File(s) to Load to Server button. An open fi le window appears.

5

.

Navigate to the folder where you saved the HTML fi le(s). Select the fi le(s).

N To select multiple fi les, hold the Ctrl key while you select the desired fi les.

N If you want one of the HTML fi les that you created to be the default start-up

page, name the fi le “index.html”. The MVX Plus 128 switcher looks for that fi le
name when you fi rst connect to it using an Internet browser.

6

. Click

the

Open button. The fi le(s) upload to the MVX Plus 128 switcher may

take a few minutes.

7

. Click

the

Update button to confi rm the upload.

8

. Click

the

Close button to exit the HTML Files List window.
