3-45

MVX Plus 128 VGA Matrix Switchers • Operation

PRELIMINAR

Y

Worksheet example 2: Daily confi guration

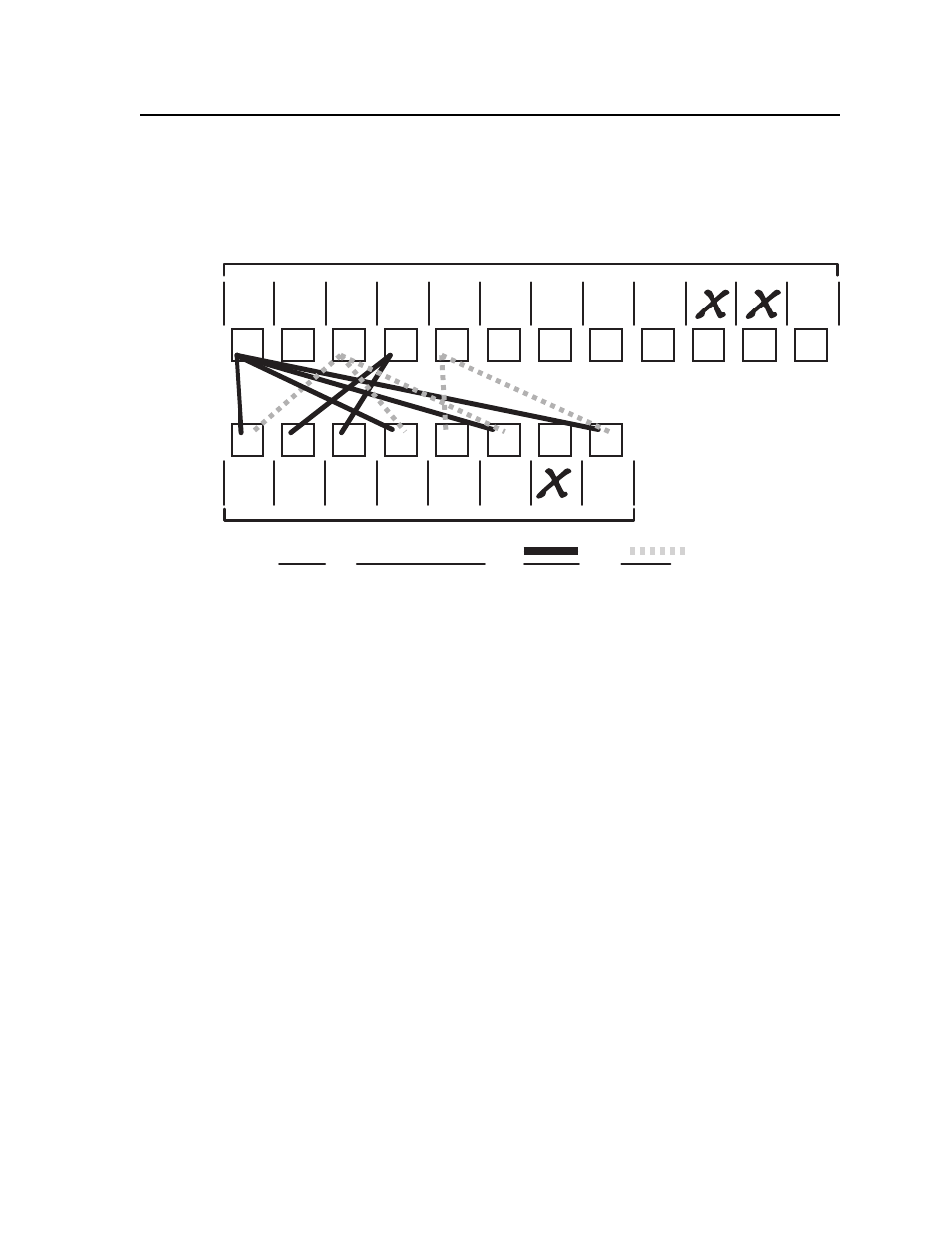

Figure 3-73 continues from worksheet example 1 by showing the video and audio
ties that make up the confi guration of preset 1. Solid ink lines shows video ties and
dashed pencil lines show the audio ties.

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

9

10

11

12

Preset #

Title:

Video:

Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines.
Indicate if the configuration is for Video, Audio, or both.

Classroom

#1 VCR

USP 405

Audio

CD

PC 2

RGB 202

PC 1

RGB 202

Weekly status mtg

3

Camera

#2

Camera/

mic - Main

podium

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

#1

Sound

system

#2

VCR

(VSC 500)

Lobby

monitor

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD

(USP 405)

VTG 300

Input sources

Output destinations

Figure 3-73 — Worksheet example 2: Daily confi guration

In this example:

• The image of the presenter, from the main podium camera (input 1), is:

Displayed in the main hall (output 1)

Displayed in the conference room (output 4) to the overfl ow crowd

Displayed in the lobby (output 8)

Tied to the VCR (output 6)

• The presenter has a presentation on her laptop computer (input 4) that is:

Displayed in the main hall (output 2)

Displayed locally on the podium (output 3)

• The audio from her microphone (input 3) is:

Played in the hall (output 1)

Played in the conference room (output 4)

Sent to the VCR (output 6)

• Classical music from the CD player (input 5) is:

Played in the background in the main hall on sound system #2 (output 5)

Played in the lobby (output 8)
