3-25 MVX Plus 128 VGA Matrix Switchers • Operation
PRELIMINAR
Y
4 . Press and release the Enter button (fi gure 3-43). The current confi guration is
now stored in the selected memory location.
C O N T R O L
PRESET ENTER ESC VIEW
The Enter and Preset
buttons return to unlit or
background illumination.
Press the Enter button to
save the preset.
All input buttons and output
buttons return to unlit or
background illumination.

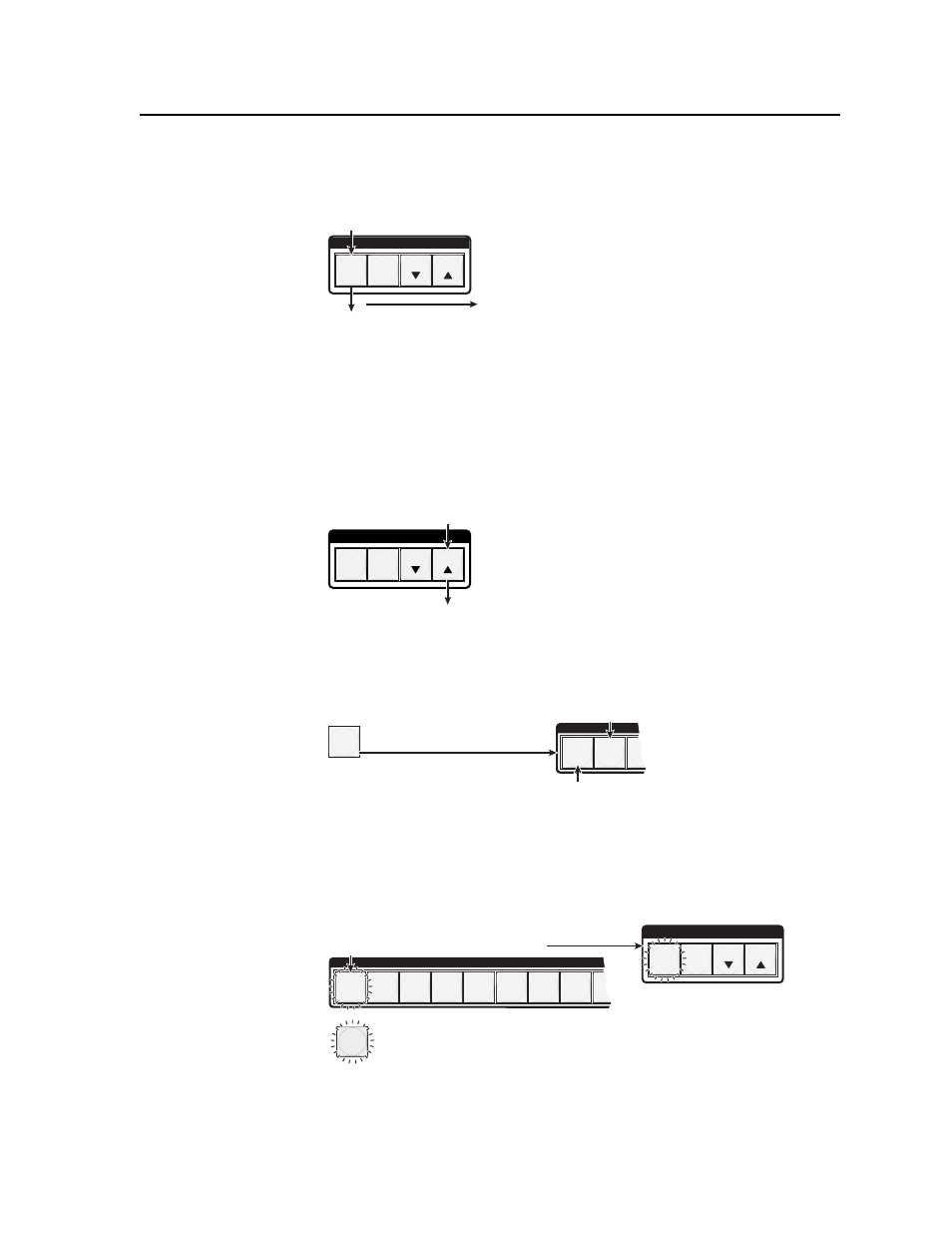

Figure 3-43 — Press the Enter button
Example 8: Recalling a preset
In the following example, a preset is recalled to become the current confi guration.
The steps show the front panel indications that result from your action.
1 . Press and release the Esc button (fi gure 3-44).
C O N T R O L
PRESET ENTER ESC VIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-44 — Clear all selections
2 . Press and release the Preset button (fi gure 3-45).
PRESET
1 2 3
Press and release the Preset button.
The Preset button lights.
All input buttons with
assigned presets light red.
Red
(Preset Assigned)
Unlit
(No Preset Assigned)
Figure 3-45 — Enter Recall Preset mode
3 . Press and release the input or output button for the desired preset
(fi gure 3-46).
C O N T R O L
PRESET ENTER ESC VIEW
INPUTS
1 2 3 4 5 6 7 8 9
Press and release the Input 1 button.
The button blinks red to indicate that this
preset number is selected but not recalled.
The Enter button blinks
to indicate the need to
recall the preset.
= Blinking button
Figure 3-46 — Select the preset
