3-13 MVX Plus 128 VGA Matrix Switchers • Operation
PRELIMINAR
Y
5 . Press and release the Enter button (fi gure 3-19).
ENTER All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to
confirm the configuration
change.
The Enter button returns to
unlit or background
illumination.

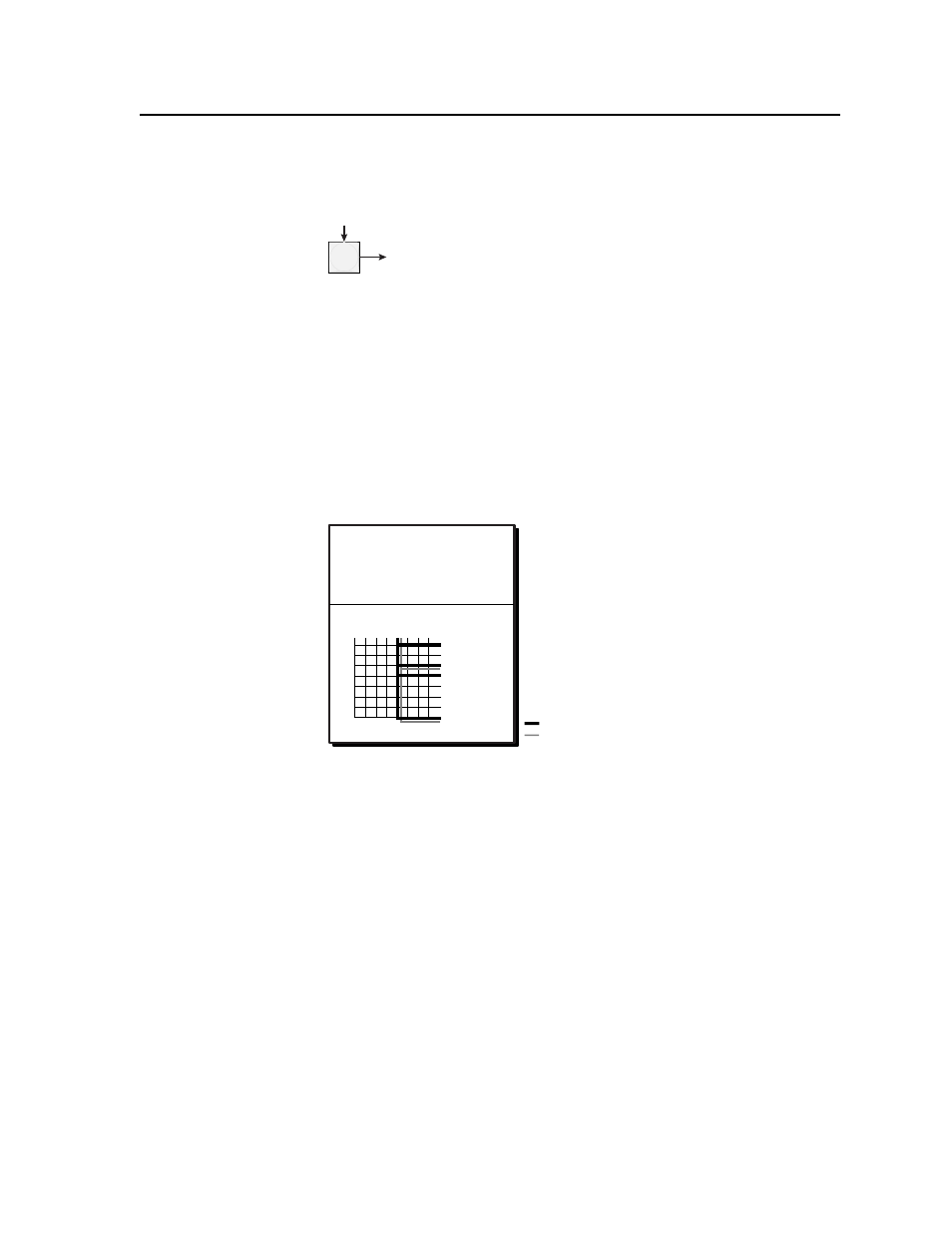

Figure 3-19 — Press the Enter button
The current confi guration (fi gure 3-20) is now:
• Video —
(Video only models) — Input 5 tied to output 1, output 3, and output 8
(Video and audio models) — Input 5 video tied to output 1, output 3,
output 4, and output 8
• Audio — Input 5 audio tied to output 3 and output 8
Input 5 video tied
to outputs 1, 3, 4, and 8.
Input 5 audio tied
to outputs 3 and 8.
Input
Output
1
3
4
8
5
Video
Audio
Figure 3-20 — Example 3, fi nal confi guration, audio switcher
