3-19 MVX Plus 128 VGA Matrix Switchers • Operation
PRELIMINAR
Y
Example 5: Grouping inputs and outputs
In the following an example, several switcher inputs and outputs are assigned to
groups. The steps show the front panel indications that result from your action.

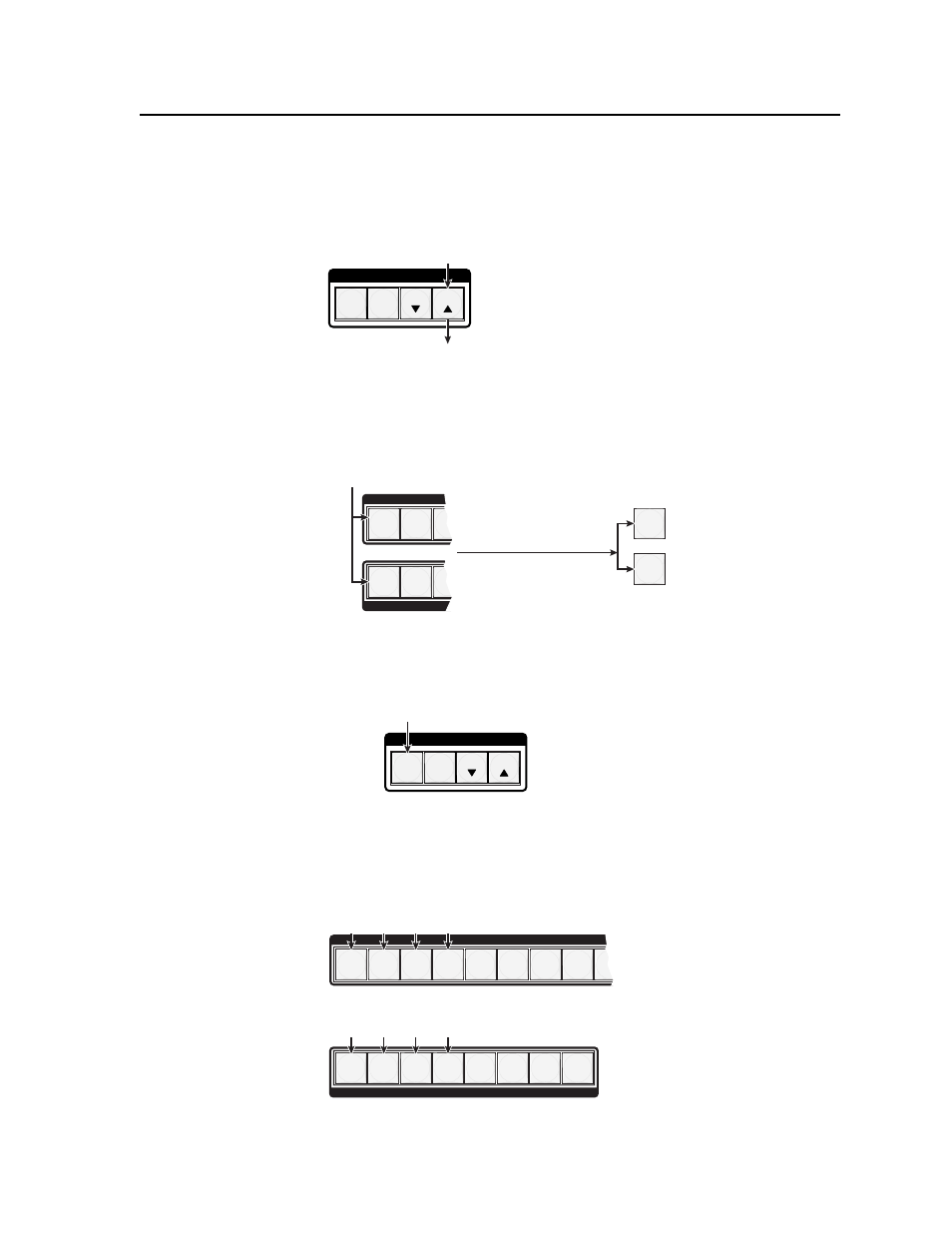

1 . Press and release the Esc button (fi gure 3-28).
C O N T R O L
PRESET ENTER ESC VIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-28 — Clear all selections
2 . To enter I/O Group mode, press and hold the Input 1 and Output 1 buttons for
approximately 2 seconds and then release the buttons (fi gure 3-29).
1
1 1 2 3
3 1 2 3
Press and hold the Input 1
button and Output 1 button.
Release the Input 1 button
and Output 1 button.
Ungrouped input and
output buttons light.
2 seconds
Figure 3-29 — Select I/O Group mode
3 . Press and release the Enter button to select group 1 (fi gure 3-30).
C O N T R O L
PRESET ENTER ESC VIEW
Press and release the Enter button to select group 1.
The button lights amber to indicate the selection.
1 3 2 4 Group #
Figure 3-30 — Select an I/O group
4 . Press and release the input 1 through 4 and output 1 through 4 buttons
(fi gure 3-31).
INPUTS
1 2 3 4 5 6 7 8 9
OUTPUTS
1 2 3 4 5 6 7 8
Press and release the Input 1 through Input 4 buttons.
The selected buttons light.
Press and release the Output 1 through Output 4 buttons.
The selected buttons light.
Figure 3-31 — Assign inputs and outputs
