Operation, cont’d

MVX Plus 128 VGA Matrix Switchers • Operation

3-24

PRELIMINAR

Y

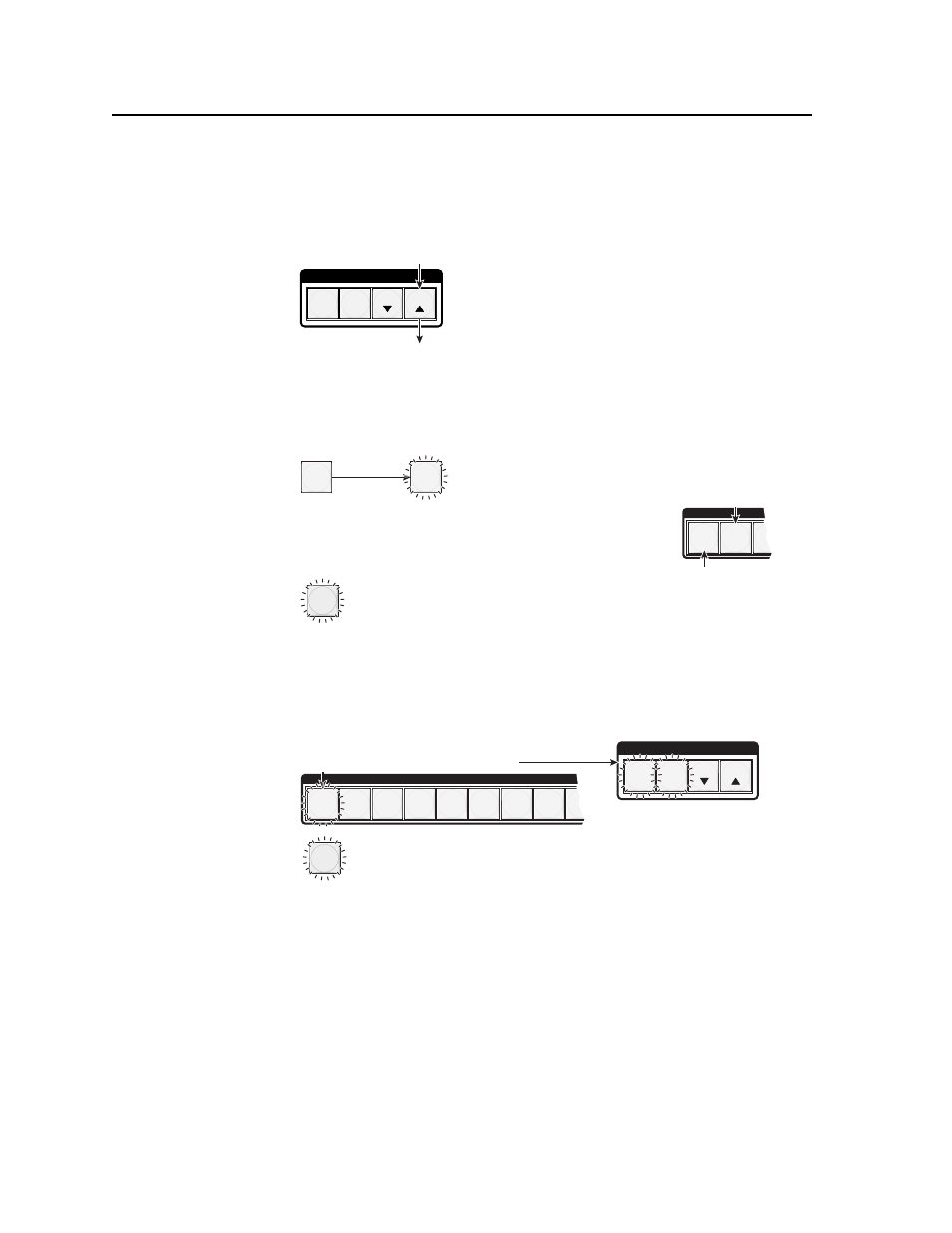

Example 7: Saving a preset

In the following example, the current confi guration is saved as a preset. The steps
show the front panel indications that result from your action.

1

.

Press and release the Esc button (fi gure 3-40).

C O N T R O L

PRESET

ENTER

ESC

VIEW

Press the Esc button to clear all selections.

The button flashes once.

Figure 3-40 — Clear all selections

2

. Press

and

hold

the Preset button for approximately 2 seconds until it blinks

(fi gure 3-41).

PRESET

PRESET

1

2

3

Press and hold the Preset button until it blinks.

2 seconds

= Blinking button

All input buttons with assigned presets light red.
If you then save the configuration to a lit preset number,
the configuration data at that preset location will be overwritten.

Red

(Preset Assigned)

Unlit

(No Preset Assigned)

Figure 3-41 — Enter Save Preset mode

3

.

Press and release the input or output button for the desired preset
(fi gure 3-42).

C O N T R O L

PRESET

ENTER

ESC

VIEW

INPUTS

1

2

3 4

5 6

7 8

9

The Enter button blinks to
indicate the need to save the
preset.
The Preset button continues
to blink.

= Blinking button

Press and release the Input 1 button.

The button blinks red to indicate that this
preset number is selected but not saved.

Figure 3-42 — Select the preset
