Operation, cont’d
MVX Plus 128 VGA Matrix Switchers • Operation
3-46
PRELIMINAR
Y
Worksheet example 3: Test confi guration
The A/V system in our fi ctional organization needs to be fi ne tuned on a regular
basis. Figure 3-74 shows a typical test confi guration, with an Extron video test
generator (input 12) generating a test pattern to all monitors (outputs 1, 2, 3, 4,
and 8). Sound checks are run from the CD player (input 5) to all audio systems
(outputs 1, 2, 3, 4, and 8).
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
Preset #
Title:
Video:
Audio:
Fill in the preset number and use colors, or dashes, etc. to make connecting lines.
Indicate if the configuration is for Video, Audio, or both.
Classroom
#1 VCR
USP 405
Audio
CD
PC 2
RGB 202
PC 1
RGB 202
Weekly status mtg
3
Camera
#2
Camera/
mic - Main
podium
Main hall
FP #1
Main hall
FP #2
Podium
monitor
Sound
system
#1
Sound
system
#2
VCR
(VSC 500)
Lobby
monitor
Classroom
#2 VCR
USP 405
Laptop
RGB 202
Rack DVD
(USP 405)
VTG 300
Input sources
Output destinations

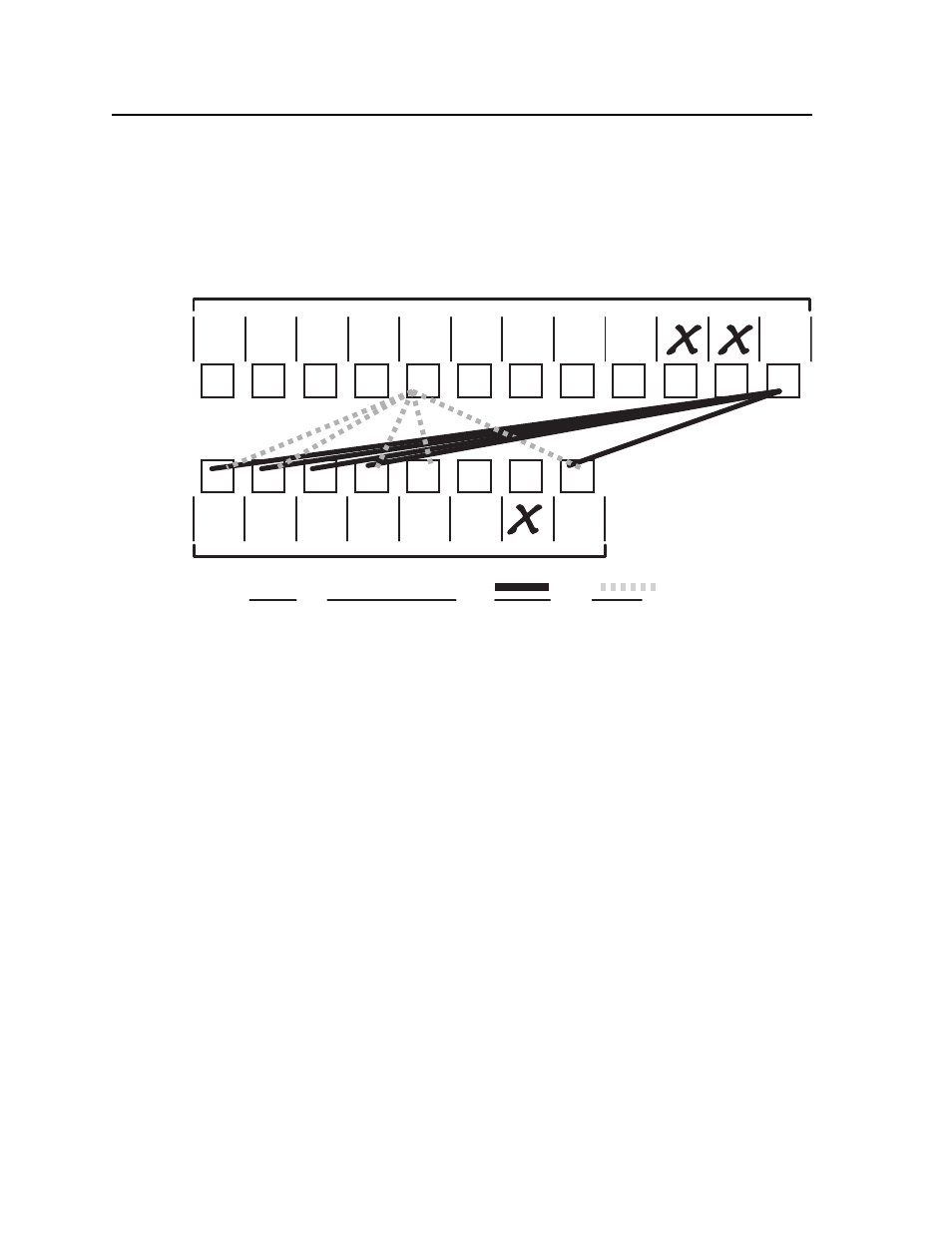

Figure 3-74 — Worksheet example 3: Test confi guration
