11
1. Introduction

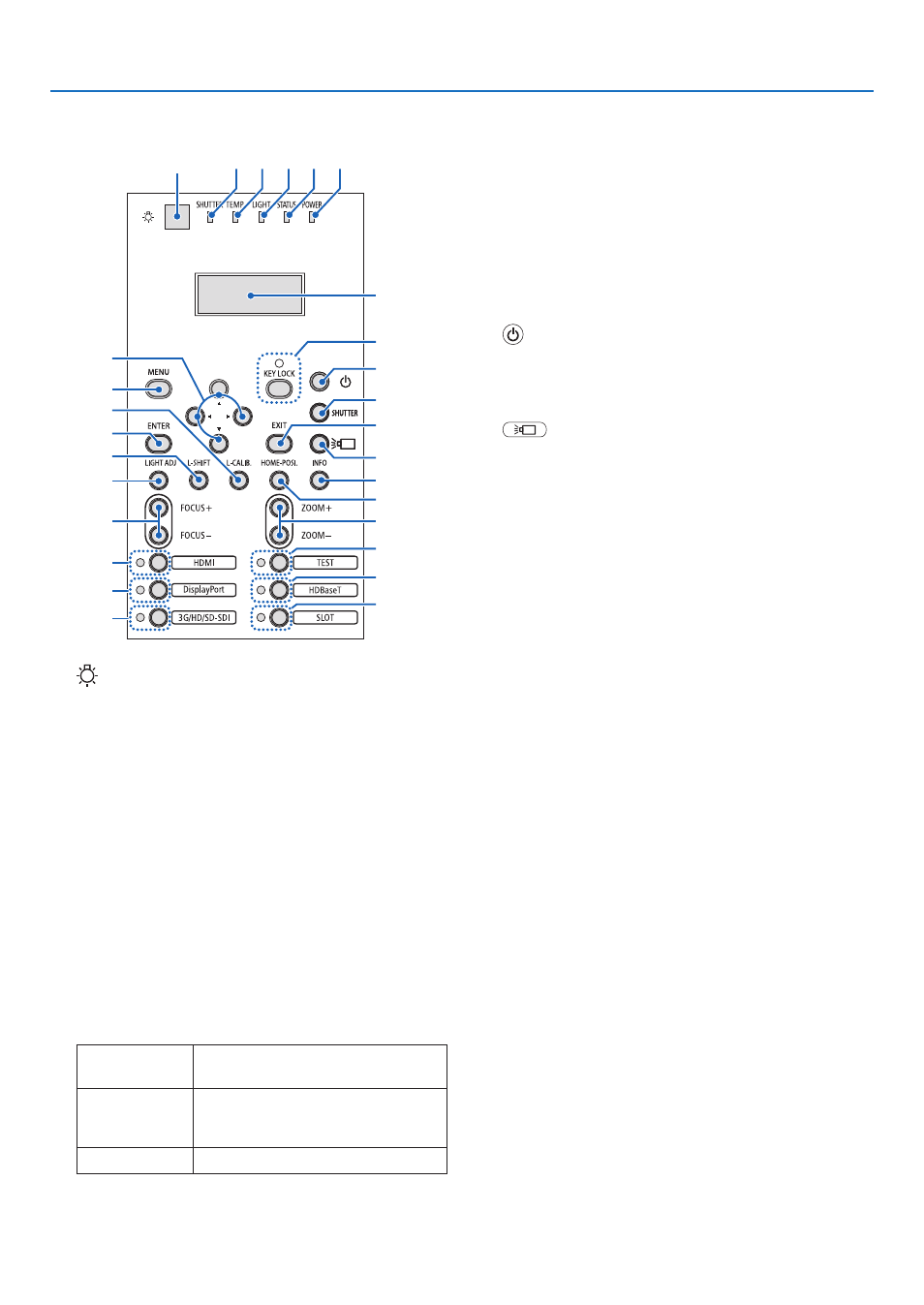

Controls/Indicator Panel
8
3 2 1 4 5 6
11
7
9
10
12
16
21
23
24
25
20
17
13
14
15
18
19
22
26
27
28
1. (Light) button
Illuminates the control panel and the indicator panel.
2. SHUTTER Indicator
(
→ page 36 , 169 )
3. TEMP. Indicator
(
→ page 169 )
4. LIGHT Indicator
(
→ page 36 , 169 )
5. STATUS Indicator
(
→ page 168 )
6. POWER Indicator
(
→ page 22 , 34 , 168 )
7. Liquid crystal indicator panel
The projector displays its status, input signal info, and
error info whenever connected to a power source.
Information displayed
Projector status power on/off, light source, tempera-
ture, AC in voltage, IP Address
Input signal info input terminal, entry list number,
source name, horizontal frequency,
vertical frequency
Error info error code, error description
8. ▲▼◀▶ Buttons
( → page 30 , 71 )
9. MENU Button
(
→ page 71 )
10. ENTER Button
(
→ page 71 )
11. EXIT Button
(
→ page 71 )
12. KEY LOCK Button / KEY LOCK Indicator
(
→ page 36 )
13. (POWER) Button
( → page 22 , 34 )
14. SHUTTER Button
(
→ page 36 )
15. (light source) Button
( → page 36 )
16. LIGHT ADJ Button
(
→ page 41 )
17. L-SHIFT Button
(
→ page 30 )
18. INFO Button
• Press the switch briefly to change the contents
displayed in the liquid crystal indicator panel.
• Press and hold the switch (for 2 seconds or more)
to display the INFORMATION screen. ( → page 135 )
19. HOME-POSI. Button
(
→ page 30 )
20. L-CALIB. Button
(
→ page 23 )
21. FOCUS +/− Button
(
→ page 32 )
22. ZOOM +/− Button
(
→ page 33 )
23. HDMI Button / HDMI Indicator
(
→ page 25 )
24. DisplayPort Button / DisplayPort Indicator
(
→ page 25 )
25. 3G/HD/SD-SDI Button / 3G/HD/SD-SDI Indicator
(
→ page 25 )
26. TEST Button / TEST Indicator
TEST Indicator always lights up in white.
( → page 28 , 32 )
27. HDBaseT Button / HDBaseT Indicator
(
→ page 25 )
28. SLOT Button / SLOT Indicator
(
→ page 25 )
