NEC Solutions (America), Inc.
Visual Systems Division
NP1000/2000 Installation Guide
Desktop and Ceiling Mount v 1.3
www.necvisualsystems.com NP1000/2000 Page 1 of 9
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas _________________________________
Pg 1
Diagrams & Distance Charts; 4:3 _______ __ Pg 2
16:9___ Pg 3
Lens Shift Adjustable Range _______ __ Pg 4
Cabinet Dimensions_____________ ________ Pg 5
Lens Dimensions_______________ _______ Pg 6
Ceiling Mount Dimensions________ _______ Pg 7
Ceiling Mount Dimensions________ _______ Pg 8
Input Panel and Control Codes ______ Pg 9

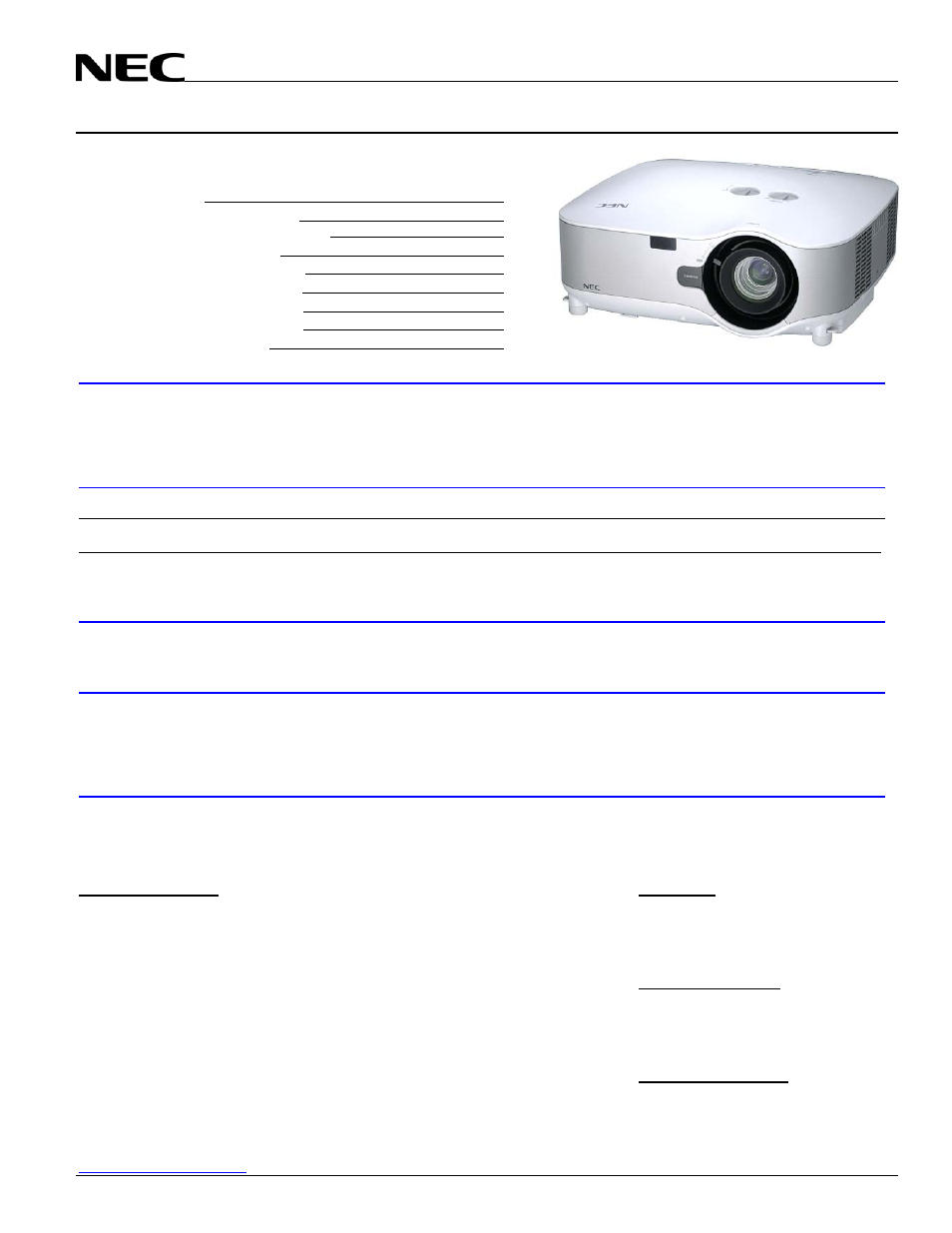

Product Description
Type: 3 panel LCD projector, Dimensions: 15.7”(W) x 5.9”(H) x 14.1”(D)
0.8 p-Si TFT w/MLA Weight: 16.1 lbs
Resolution: 1024 x 768 (4:3) / 1024 x 576 (16:9) Brightness: NP1000 – 3500 ANSI Lumens
NP2000 – 4000 ANSI Lumens
Network Ready, integrated wired/optional wireless Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP01FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm NP03FL: Throw Ratio:~1.94 - 3.07:1 Focal Length:31.6 – 50.2mm
Screen Sizes: 40”-150” F/#:2.3 Screen Sizes: 40” - 500” F/#:2.2 _____________
NP02FL: Throw Ratio: ~1.18 - 1.54:1 Focal Length: 19.42 - 25.26mm NP04FL: Throw Ratio:2.98 -4.77:1 Focal Length:48.8 - 77.6mm
Screen Sizes: 30” - 500” F/#:2.2 _________ Screen Sizes: 60” - 500” F/#:2.2____ _________ _
Standard: Throw Ratio:~1.5 - 2.0:1 Focal Length:24.4 - 32.5mm NP05FL: Throw Ratio:4.62 - 7.02:1 Focal Length:76.6 - 116.5mm
Screen Sizes: 30” – 500 ” F/#:1.7 Screen Sizes: 80” - 500” F/#:2.2
Screen/Aspect Ratio
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
ƒ For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
•
All calculations are based on 4:3 aspect ratio.
•
Distances are in inches, for millimeters multiply by 25.4.
•
Distances may vary
±5%.
Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas:
Definitions:
NP01FL: C = 0.8325W – 1.33 W = Image Width
NP02ZL: C(Wide) = 1.2220W – 1.798 --------- C(Tele) = 1.5894W – 1.795 H = Image Height (size)
Standard: C(Wide) = 1.5455W – 2.022 --------- C(Tele) = 2.0555W – 2.015 C = Throw distance
NP03ZL: C(Wide) = 2.0069W – 2.830 --------- C(Tele) = 3.1710W – 2.840
NP04ZL: C(Wide) = 3.0537W – 4.830 --------- C(Tele) = 4.8860W – 4.850 4:3 Screen Formulas:
NP05ZL: C(Wide) = 4.8275W – 7.625 --------- C(Tele) = 7.3379W – 7.645 W = H x 4/3
H = W x 3/4
Diagonal = W x 5/4
16:9 Screen Formulas:
W = H x 16/9
Note: Tilting the front of the projector from level up or down by H = W x 9/16
more than 45° could reduce lamp life up to 20%. Screen Diagonal = W x 18.358/16
