The current input is protected against current overload by a resettable
fuse. The display may or may not show a fault condition depending on
the nature of the overload.
The fuse limits the current to a safe level when it detects a fault condi-
tion, and automatically resets itself when the fault condition is removed.
- + +
Voltage
Signal
mA+ P-
2 1 3 5 4
P+ V+ COM
INPUT SIGNAL
mA+ P-
2 1 3 5 4
P+ V+ COM
INPUT SIGNAL
3-Wire Voltage
Transducer
Signal
-

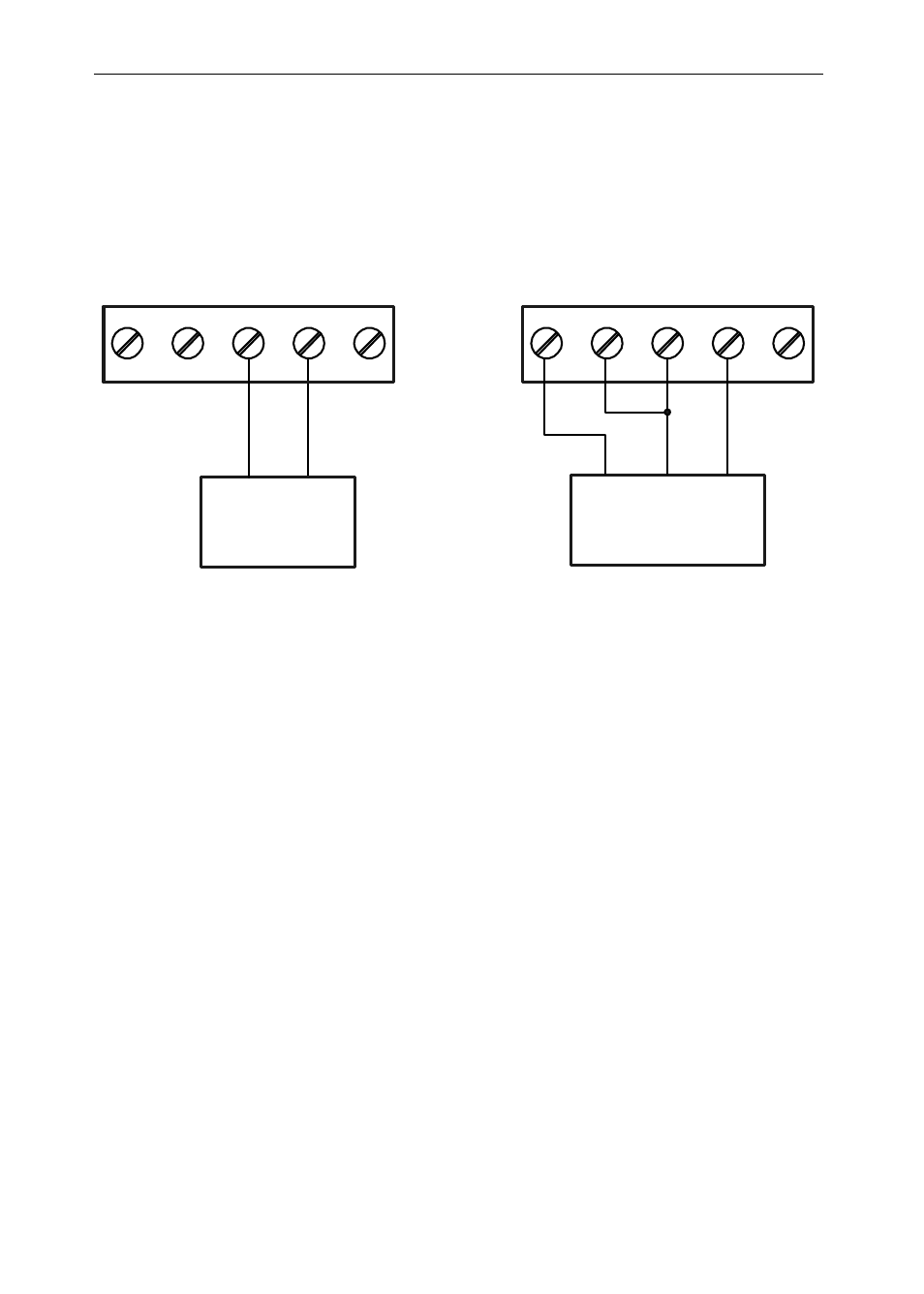

Figure 10: Voltage Input Connections
The controller is capable of accepting any voltage from -10 VDC to
+10 VDC.
