Model PD6210 & PD6310 Batch Controllers Instruction Manual
19
Mounting Dimensions
1.76"
(45 mm)
0.59"
(15 mm)
4.77"
(121 mm)
2.45"
(62 mm)
5.05"
(128 mm)

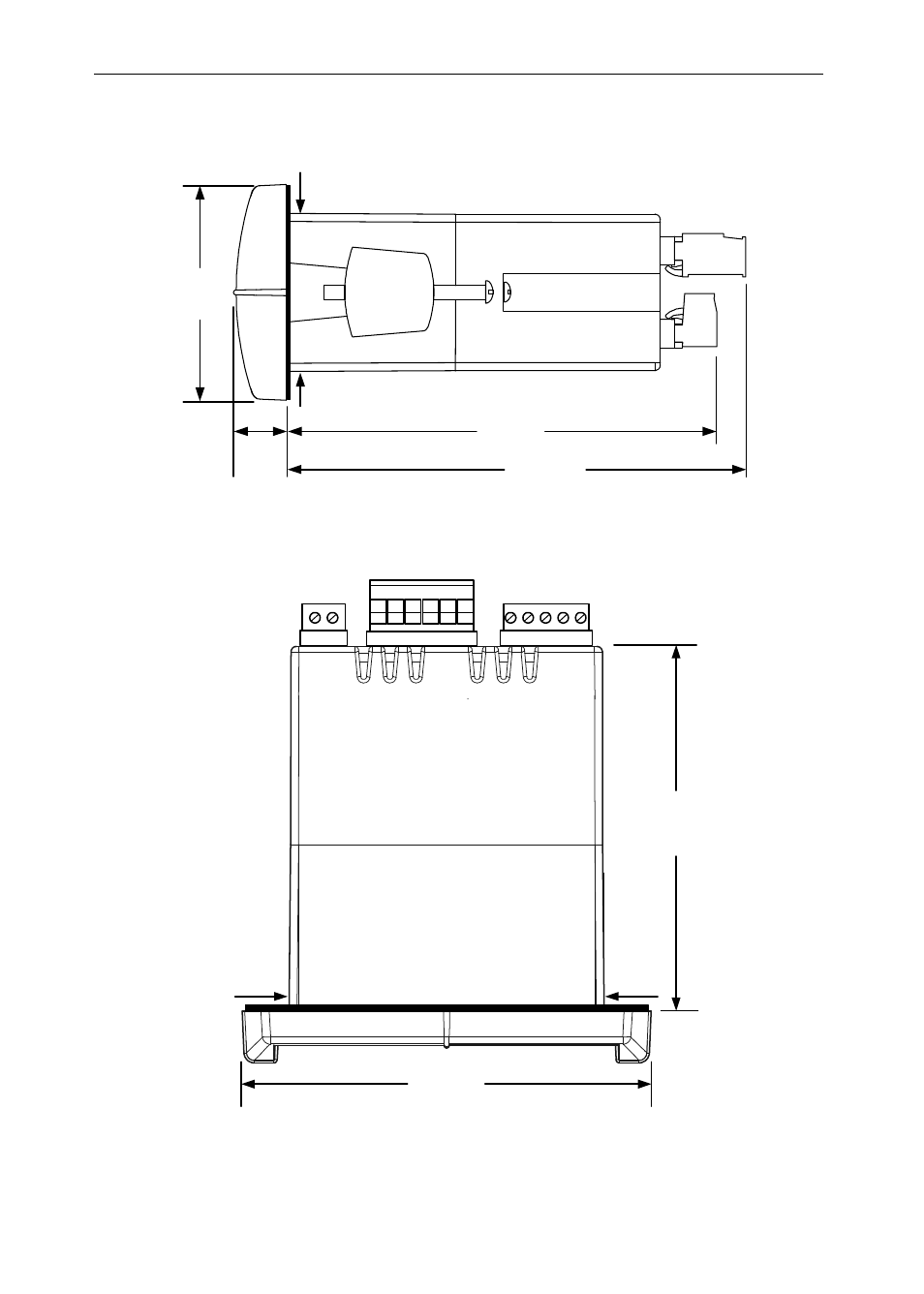

Figure 2: Controller Dimensions - Side View
3.61"
(92 mm)
4.17"
(106 mm)
4.68"
(119 mm)
Figure 3: Controller Dimensions - Top View
