HEIDENHAIN iTNC 530 37
1
.3 Mo
des o
f Oper
atio
n Programming and editing
In this mode of operation you can write your part programs. The
various cycles and Q-parameter functions help you with programming
and add necessary information. If desired, you can have the
programming graphics show the individual steps.
Soft keys for selecting the screen layout
Test Run
In the Test Run mode of operation, the TNC checks programs and
program sections for errors, such as geometrical incompatibilities,
missing or incorrect data within the program or violations of the work
space. This simulation is supported graphically in different display
modes.
Soft keys for selecting the screen layout: see “Program Run, Full
Sequence and Program Run, Single Block,” page 38.

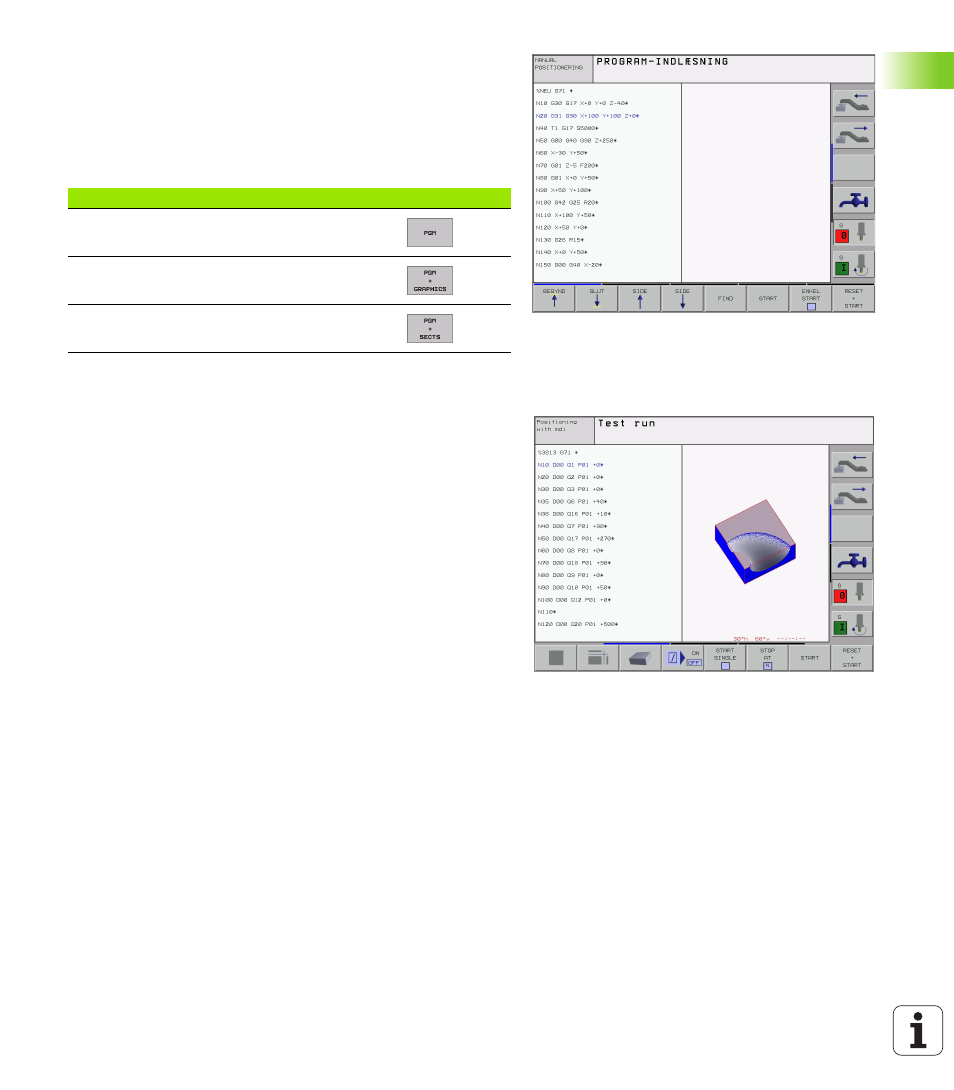

Screen windows Soft key
Program
Left: program, right: programming graphics
Left: program blocks, right: program structure
