224 DIN programming
4.7 F
ront and r
ear f
a
ce cont
ours

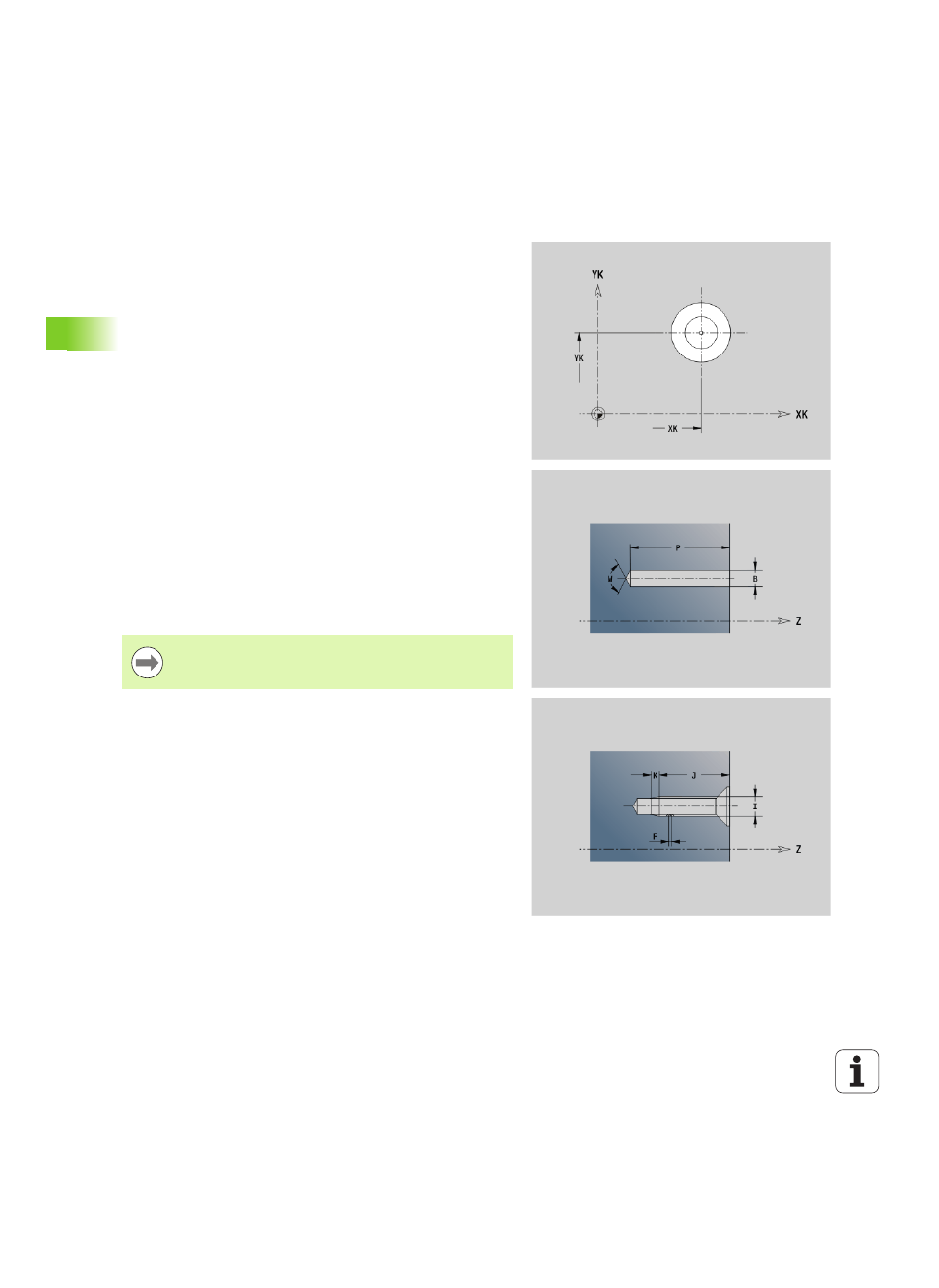

Bore hole on front/rear face G300-Geo
G300 defines a hole with countersinking and thread in a front or rear
face contour.
Parameters
XK
Center in Cartesian coordinates
YK Center in Cartesian coordinates
B Hole diameter
P Depth of hole (excluding point)
W Point angle (default: 180°)
R Sinking diameter
U Sinking depth
E Sinking angle
I Thread diameter
J Thread depth
K Thread runout length
F Thread pitch
V Left-hand or right-hand thread (default: 0)
 0: Right-hand thread
 1: Left-hand thread
A Angle to Z axis; angle of the hole
 Range for front face: –90° < A < 90° (default: 0°)
 Range for rear side: 90° < A < 270° (default: 180°)
O Centering diameter
Machine the G300 holes with G71...G74.
