4 working planes, Y-axis machining, G17 xy plane (front or rear face) – HEIDENHAIN SW 54843x-02 DIN Programming User Manual

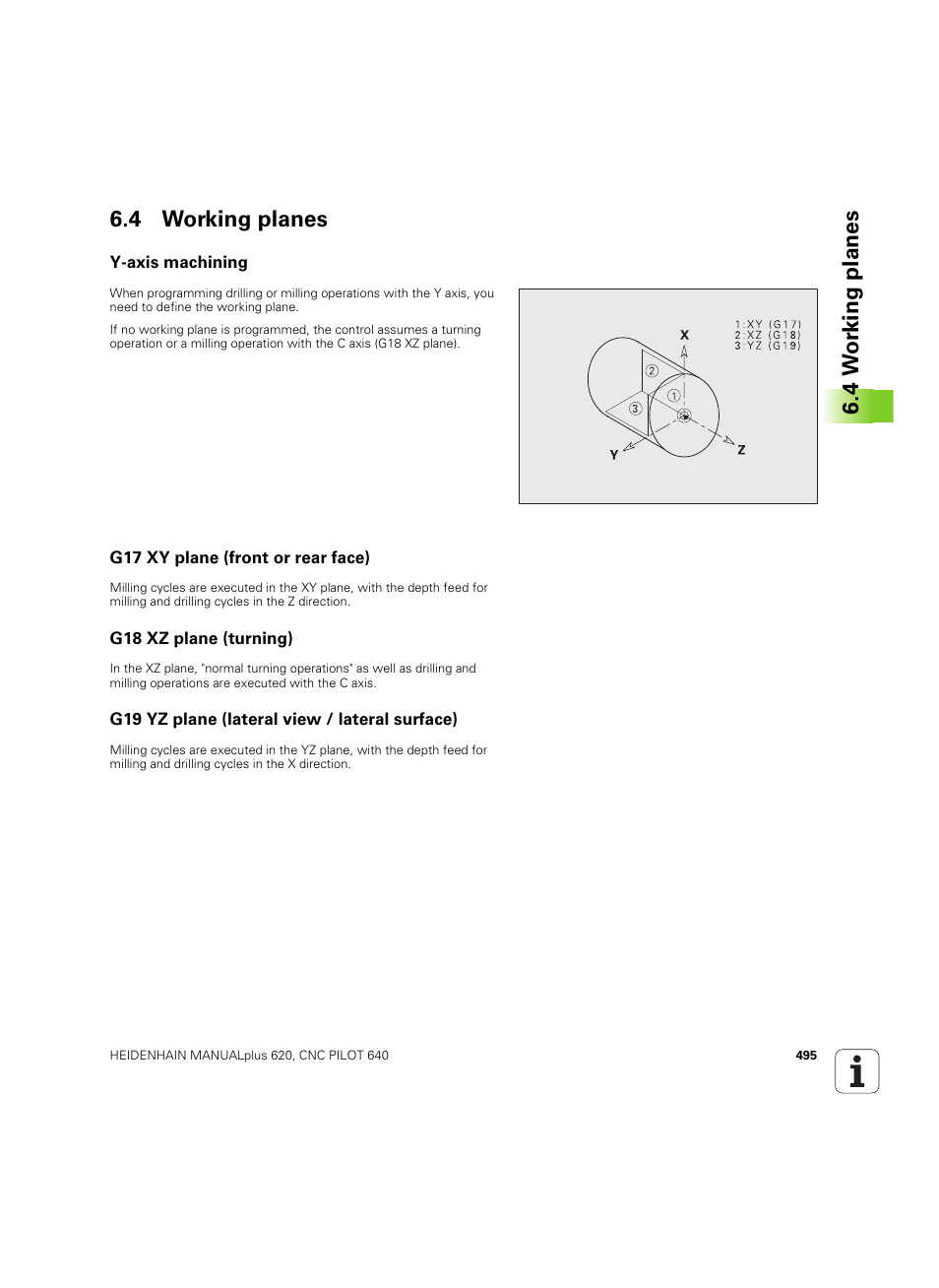

Page 495: G18 xz plane (turning), G19 yz plane (lateral view / lateral surface), 4 w o rk ing plan es 6.4 working planes
