Serial Digital Component Video Output Advanced
Profile Family 61
• Timing Adjustment sets the timing of each output with respect to the
Reference Genlock System Input Advance which, in turn, is set with respect
to the external reference input. With the Reference Genlock System Input
Advance set to the factory default of 0, the outputs have an adjustment range
of –2.5 lines to +148 lines of delay. The Fine delay is in nanoseconds and the
Line delay is in lines.
Serial Digital Component Video Output Advanced
Click the Advanced tab to view the Serial Digital Component Video Output
Advanced settings (Figure 33).

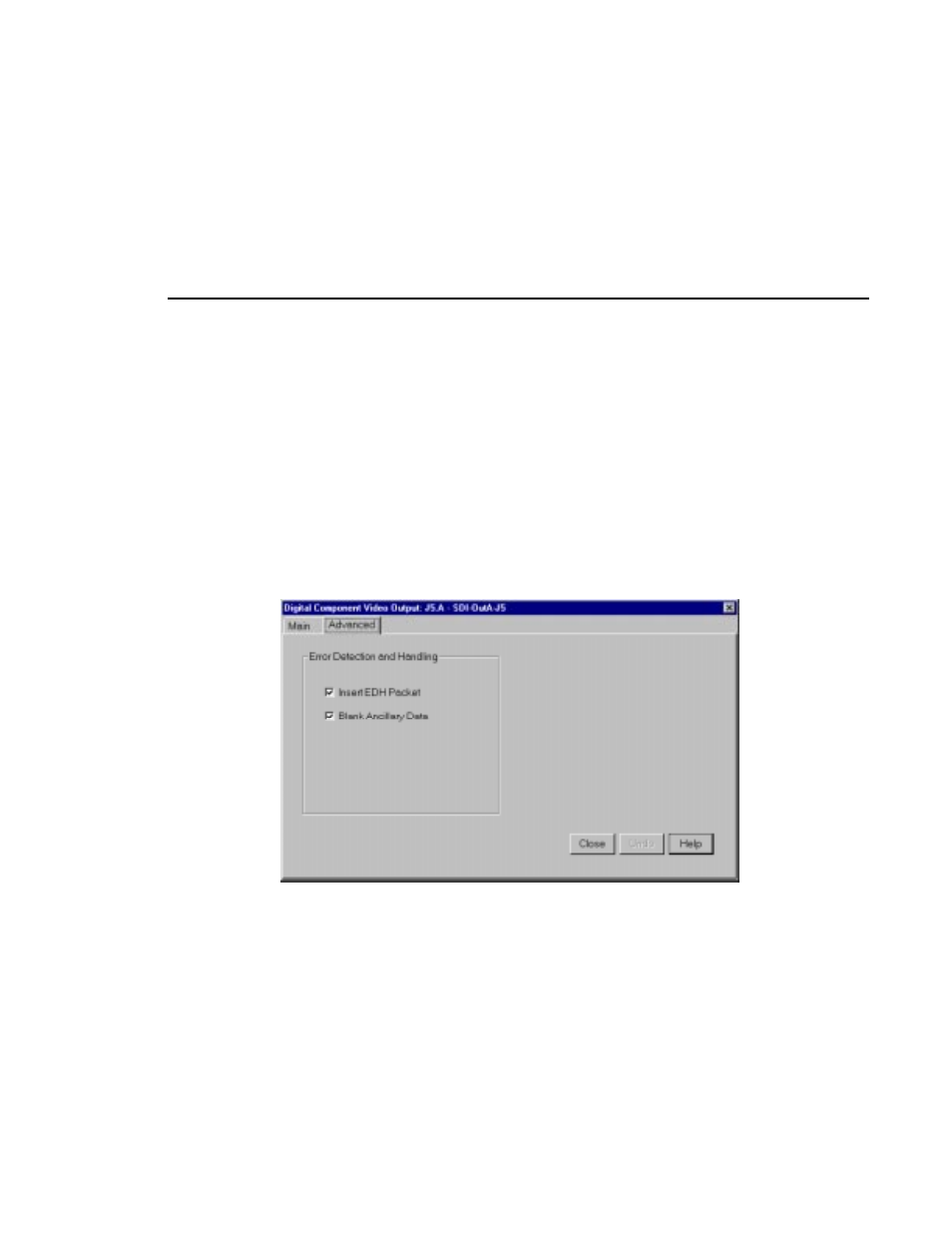

Figure 33. Serial Digital Video Output dialog box, Advanced tab
The Advanced tab allows you to set options for error detection and handling
(EDH). If Insert EDH Packets is checked, Full Frame CRC and Active Picture
CRC are inserted into the video stream. If Blank Ancillary Data is checked,
ancillary data information is inserted into the video stream.
