Chapter 4 Using VdrPanel
148 Profile Family

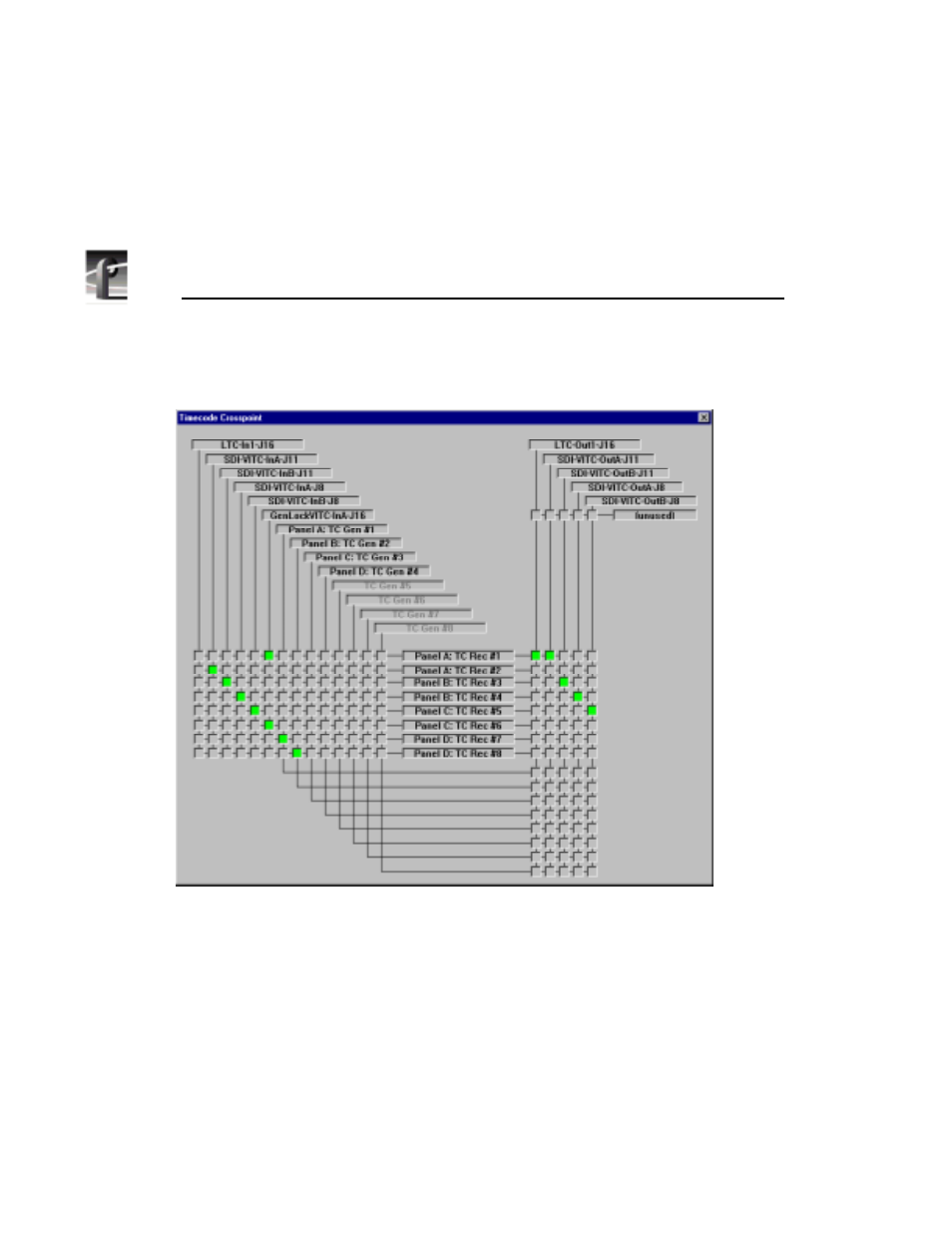

Figure 80. Timecode Crosspoint dialog box
2. To assign a crosspoint, click in the intersection between the signal and the
recorder channel. The selections turn green.
NOTE: A timecode recorder must be used by a panel to be available
as a timecode output.
3. Click the Close button when complete.
NOTE: To release a timecode output for use by another application,
click the box at the intersection of the output with the unused box.
