Chapter 10 Using TimeDelay
284 Profile Family
Marking Segments
To make a segment:
1. Start recording. On the censor channel, a clip name Original is added to the
clip window (Figure 150). The starting timecode is 00:00:00.00 and the
ending timecode is set to the Largest Delay value.

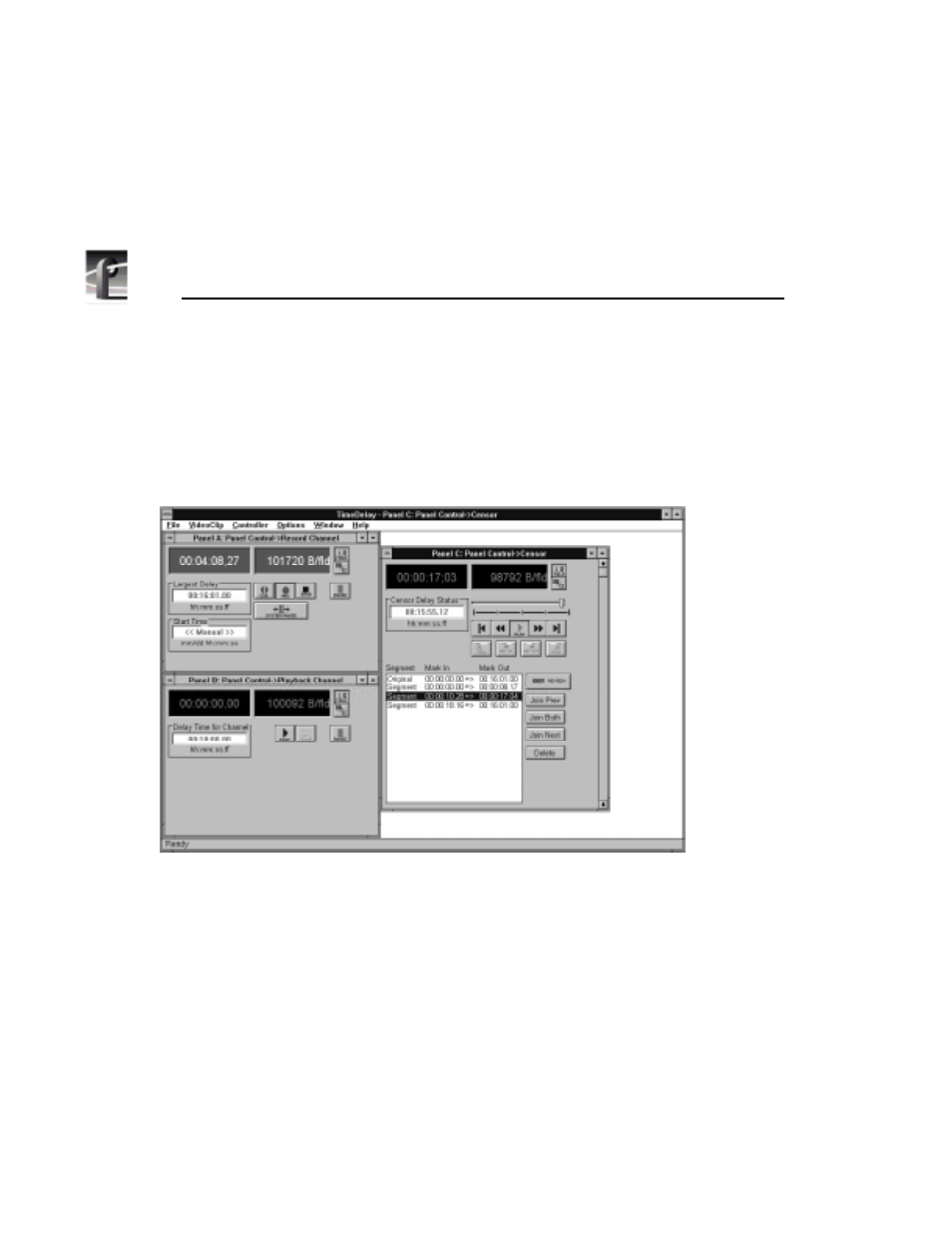

Figure 150. Censor channel
2. Watch the video input on Panel A and note reference points to facilitate
marking segments when they appear on the censor channel after the Censor
Delay Status time.
3. When the reference point is reached on the censor, click Set Out Mark .
- Set In Mark is activated
4. To end the current censor segment, click Set In Mark at the next reference
point.
- Set In Mark is inactivated
- a new segment is added in the clip window (starting at the Set In Mark
timecode)
5. Continue marking segments as needed.
