Chapter 2 Using the Profile Configuration Manager
34 Profile Family
Video Input
You may have analog composite, component analog (CAV), or serial digital
component video inputs installed in your Profile system. The steps to configure
video inputs follow.
Analog Composite Video Input
NOTE: If you have received a new PDR200 video file server from the
factory, you will have the new analog composite video input. If you
have an existing system and are upgrading to Profile system software
version 2.2, see “Analog Composite Video Input for Preexisting
Profile Units” on page 40.
To open the Analog Composite Video Input dialog box, select Video Input
from the configuration tree, and then click or double-click an analog composite
input from the list, such as Composite-InA-J5. This configuration has several
dialog boxes, each opened by clicking the appropriate tab. The Main tab is
displayed when the configuration is opened (see Figure 19). Click on the other
tabs to open the other controls.

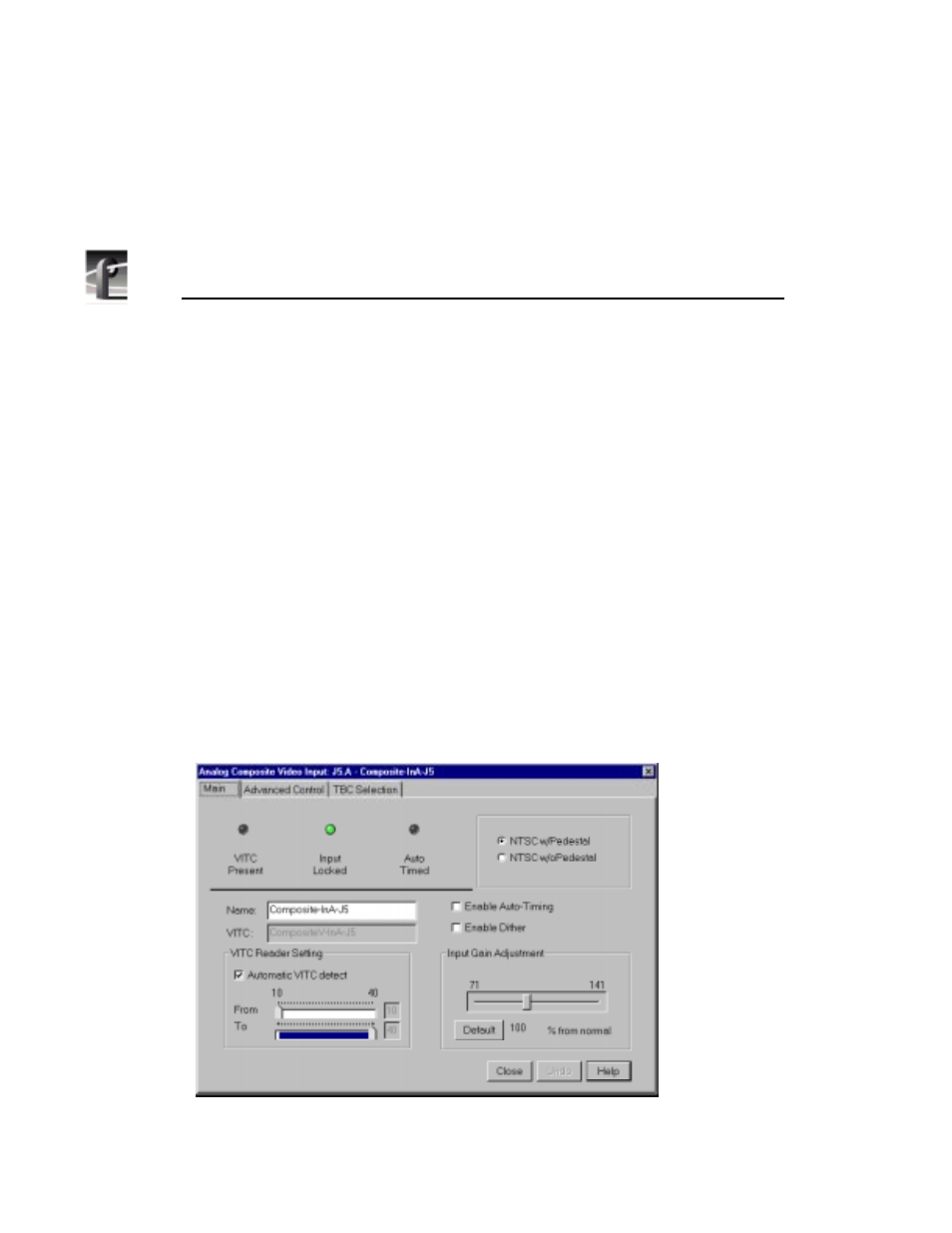

Figure 19. Analog Composite Video Input dialog box, Main tab
