Grass Valley PDR v.2.2 - Manual (Page 191)

Loading Microcode
Profile Family 173
Loading Microcode
To load microcode for your hard disks:
1. In the lower pane, select the drive or drives where you want to load
microcode.
2. Choose Disk Utilities | Load Microcode or click the Load Microcode
button to open this dialog box.

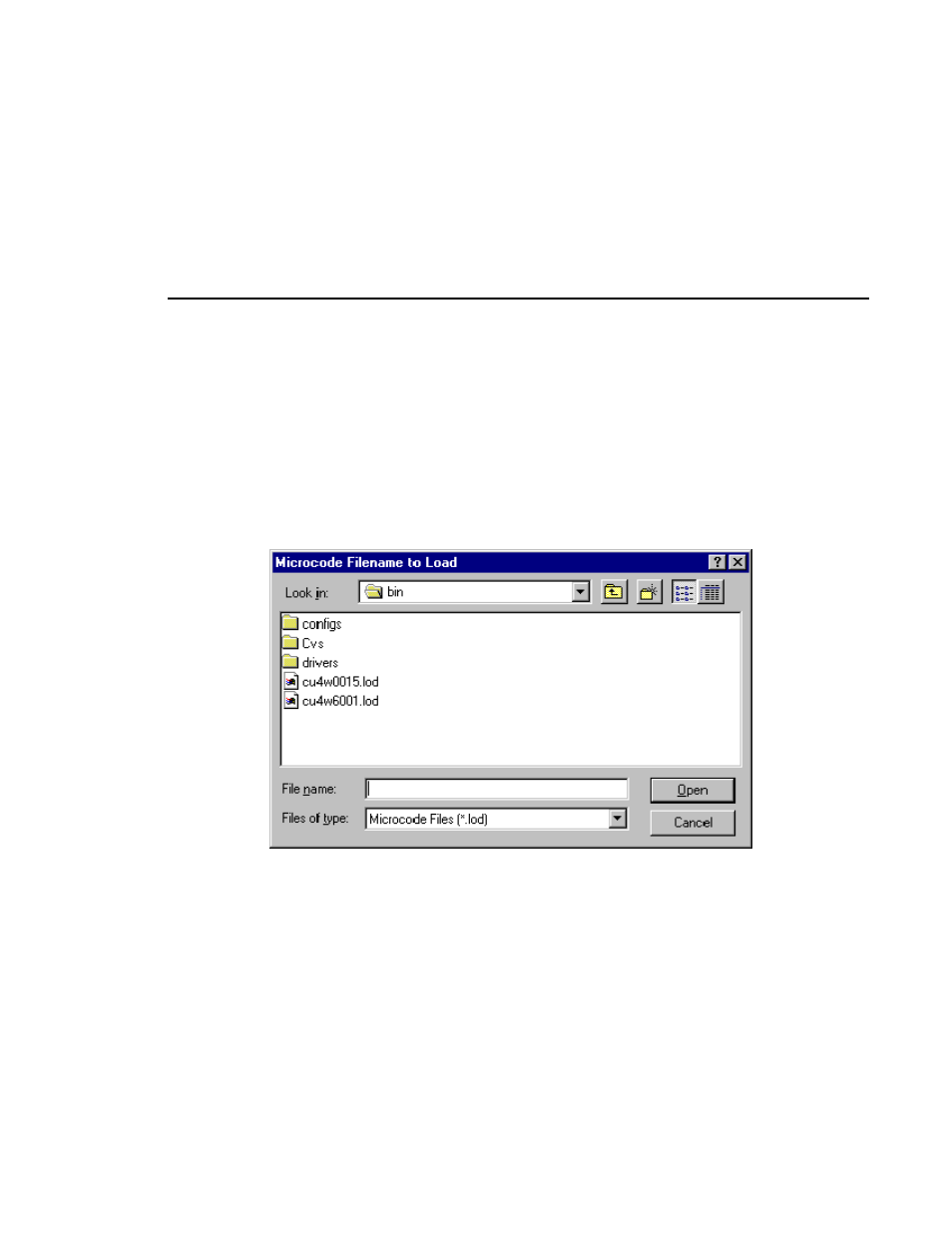

Figure 95. Microcode Filename to Load dialog box
3. Double-click on a filename or enter the name of the microcode (.lod) file in
the Filename box and click Open to load the microcode.
NOTE: Currently, the microcode file cu4w6001.lod is the most up-to-
date for 4 Gigabyte Seagate drives. The most up-to-date file for 9
Gigabyte Seagate drives is cu9w6004.lod. The file ibm9G_51.lod is
the most up-to-date for IBM drives. Check what make of drive you
have in the Vendor field of the lower pane in the Disk Utility window.
