You can display the timecode in one of four formats: black on white, white on
black, black on background, or white on background.
Serial Digital Component Video Output
To open the Serial Digital Component Video Output dialog box, select Video
Output from the configuration tree, and then click or double-click a digital
component output from the list, such as SDI-OutA-J5.

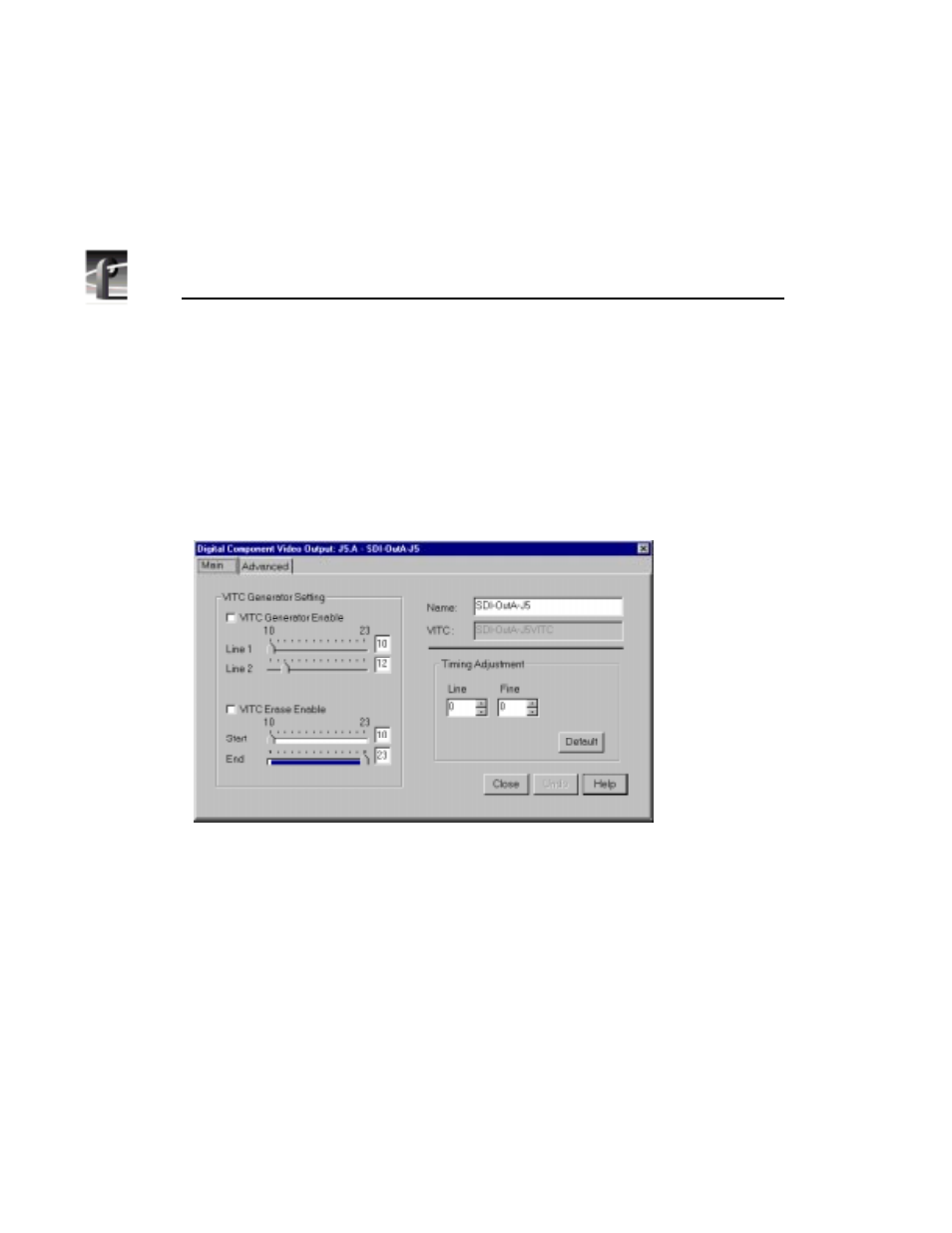

Figure 32. Serial Digital Component Video Output dialog box
• Name changes the signal name. For example, if the signal named SDI-OutA-
J13 is a dedicated signal to a main switcher, rename it Switcher_1. The VITC
name automatically tracks the signal name. Names can be up to 30
characters, and can include spaces. To return a renamed signal to the default,
delete all the characters in the text field, and press Enter.
• VITC Generator Setting places VITC on specified lines and/or erase lines
in the vertical interval.
- If VITC Generator Enable is selected, VITC is placed on the lines given
in VITC Generator Line 1 and 2. If you only want one line, use the same
number in both text boxes.
- If VITC Erase Enable is selected, it replaces lines (mostly vertical
interval, but into the active video) with black. The range of lines is given
in the Start and End sliders.
