B0 – Raw Measurements
‡
This message must be scheduled for output to view data. If not scheduled, select
Receiver > Messages > NCT output from the menu bar. The NCT Binary
Messages window opens. Add this message to the output list (see Figure 87).
3 1 2
4 5
6-13
14

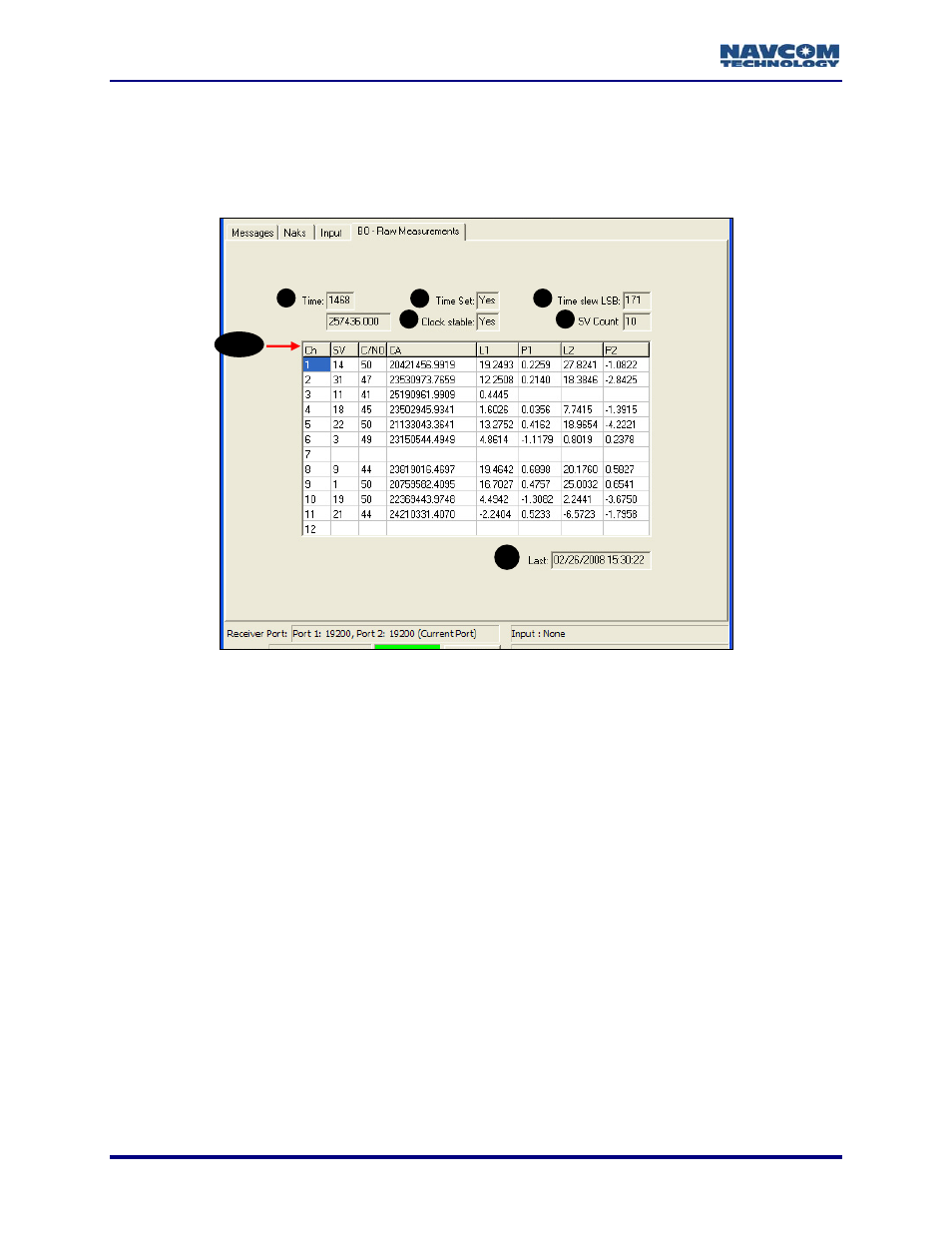

Figure 94: B0 – Raw Measurements
1. Time: GPS Week number and GPS Seconds into the week (Refer to the Technical
Reference Manual)
2. Time Set: The values are Ye
n.
6. hannel number of the receiver.
range
10 satellite and the receiver.
14
s or No.
3. Time slew LSB: The least significant bit for clock drift. The range is from 0 to 255.
4. Clock Stable: The values are Yes or No. The offset is less than 2 parts per millio
5. SV Count: The number of GPS satellites currently tracked by the receiver.
Ch: The c
7. SV: The GPS satellite number assigned to that particular channel. The valid GPS PRN
is 1-32.
8. C/NO: Carrier-to-noise ratio. The signal strength indictor.
9. CA: Coarse Acquisition code. The number of meters (range measurement) to the satellite.
. L1: The L1 frequency. The number of carrier cycles between the
11. P1: The P1 pseudorange.
12. L2: The L2 frequency. The number of carrier cycles between the satellite and the receiver.
13. P2: The P2 pseudorange.
. Last: Shows the MM:DD:YYYY and HH:MM:SS of the last 0xB0 message update.
