73

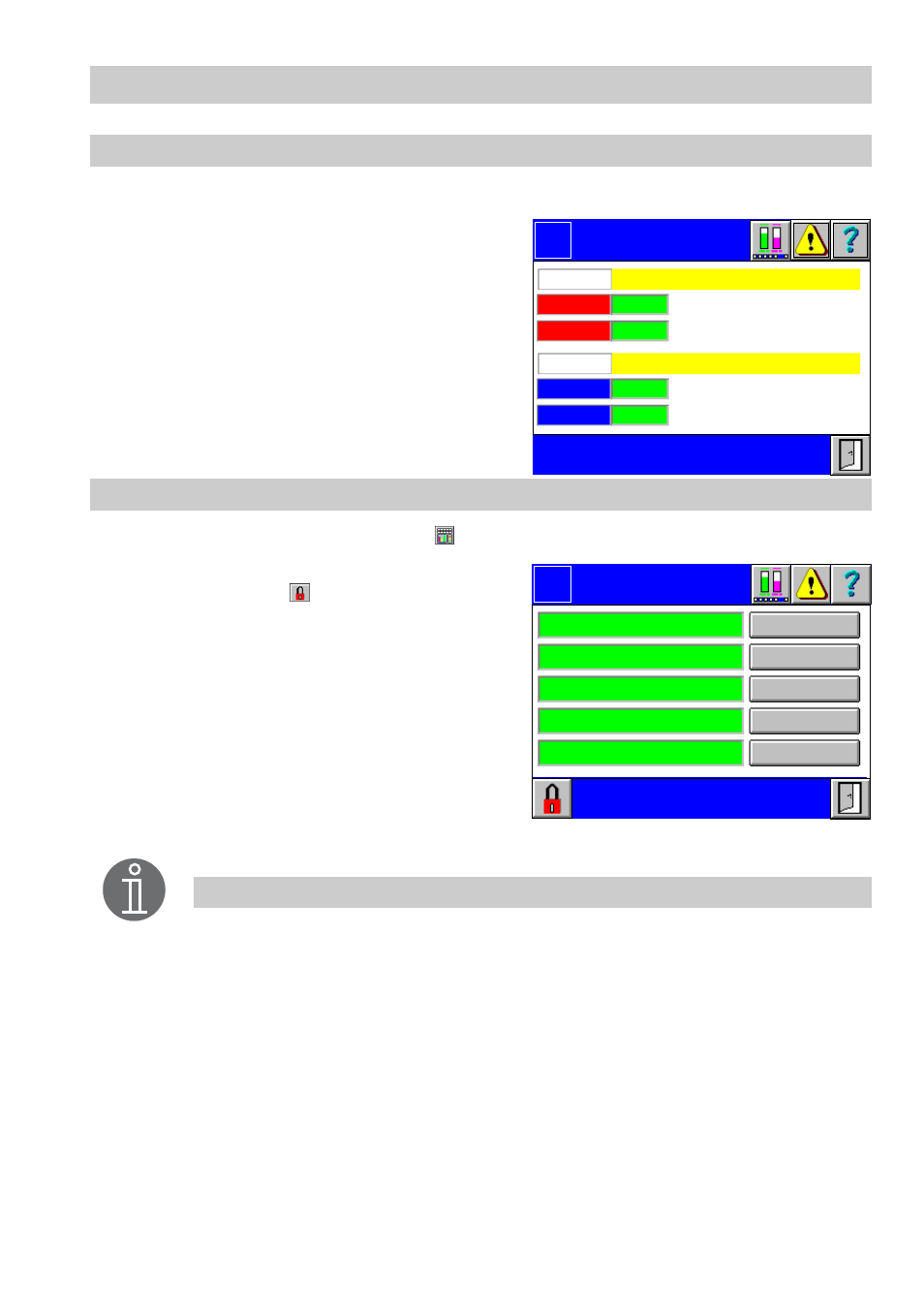

Burner Menu
– con tinued –
Datalog 1...5 range of representation
1. Press button Range of representation in the menu Edit datalog 1...5 .
2. Click in the green input fields to select the
characteristics of the min. and max. limit
values.
3. The current value appears in the input
mask. Use the on-screen keyboard to
overwrite or modify the value.
Flowrates
1. In the menu Burner press button .
2. The menu Flowrates is password protect-
ed. Press button and enter your pass-
word.
3. The green input fields list the designations
of the flowrates in question.
4. To configure a flowrate measurement,
press button
Setup Flowrate 1...5 .
5. To show the parameters of the flowrate
measurement click in the respective input
field. The menu
Flowrate 1...5 Parame-
ters pops up.
Datalog 1
Range of repr.
Logo
Signal 2:
Signal 1:
Max:
Min:
Max:
Min:
100
0
100
0
Flowrates Logo
Setup Flowrate 1
Setup Flowrate 2
Setup Flowrate 3
Setup Flowrate 4
Setup Flowrate 5
Note
Please observe the unit of the values. The unit must have the suffix
/h= per hour,
/m= per minute,
/s = per second.
