Menus of Inputs/ Outputs
– con tinued –
CAN 1..10 output
1. In the menu Inputs or Outputs press .

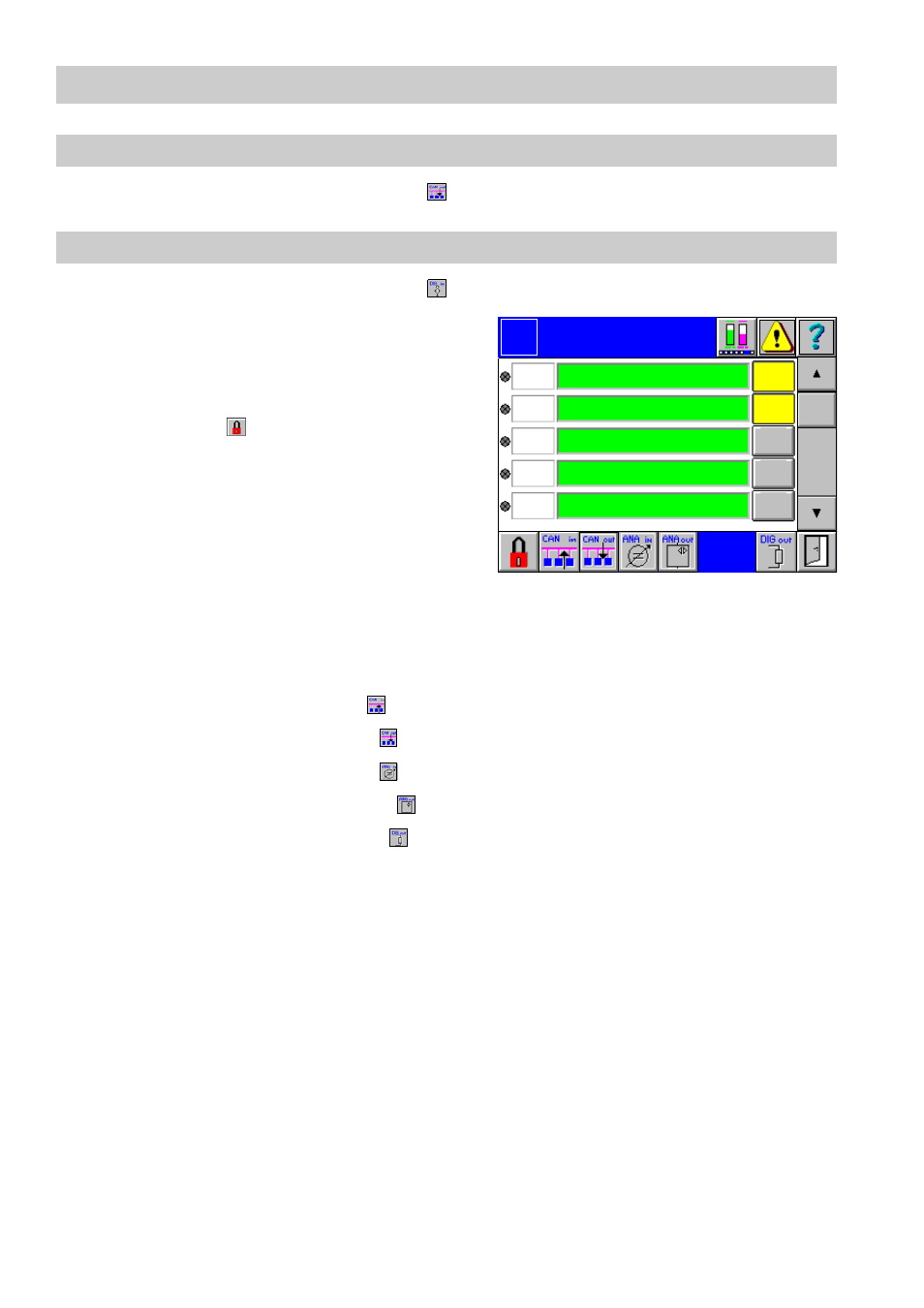

Digital inputs
1. In the menu Inputs or Outputs press .
2. The display field shows the connected
signals. Active connections are indicated
by a yellow signal at the left side.
3. The menu Digital Inputs is password pro-
tected. Press and enter your password.
4. To designate a signal click in the green in-
put field.
5. Use the on-screen keyboard to overwrite
or modify the value in the input mask.
6. The Alarm buttons feature three different
indicating functions:
Alarm with signal value 0 (OFF) (yellow)
Alarm with signal value 1 (ON) (yellow)
Alarm OFF (grey)
7. To go to the CAN input press .
8. To go to the CAN output press .
9. To go to the analog input press .
10. To go to the analog output press .
11. To go to the digital output press .
Digital
Inputs
Logo
Sig. 1 Designation
Sig. 2
Sig. 3
Sig. 4
Sig. 5
Designation
Alarm
with 0
Alarm
with 1
Alarm
Off
Alarm
Off
Alarm
Off
