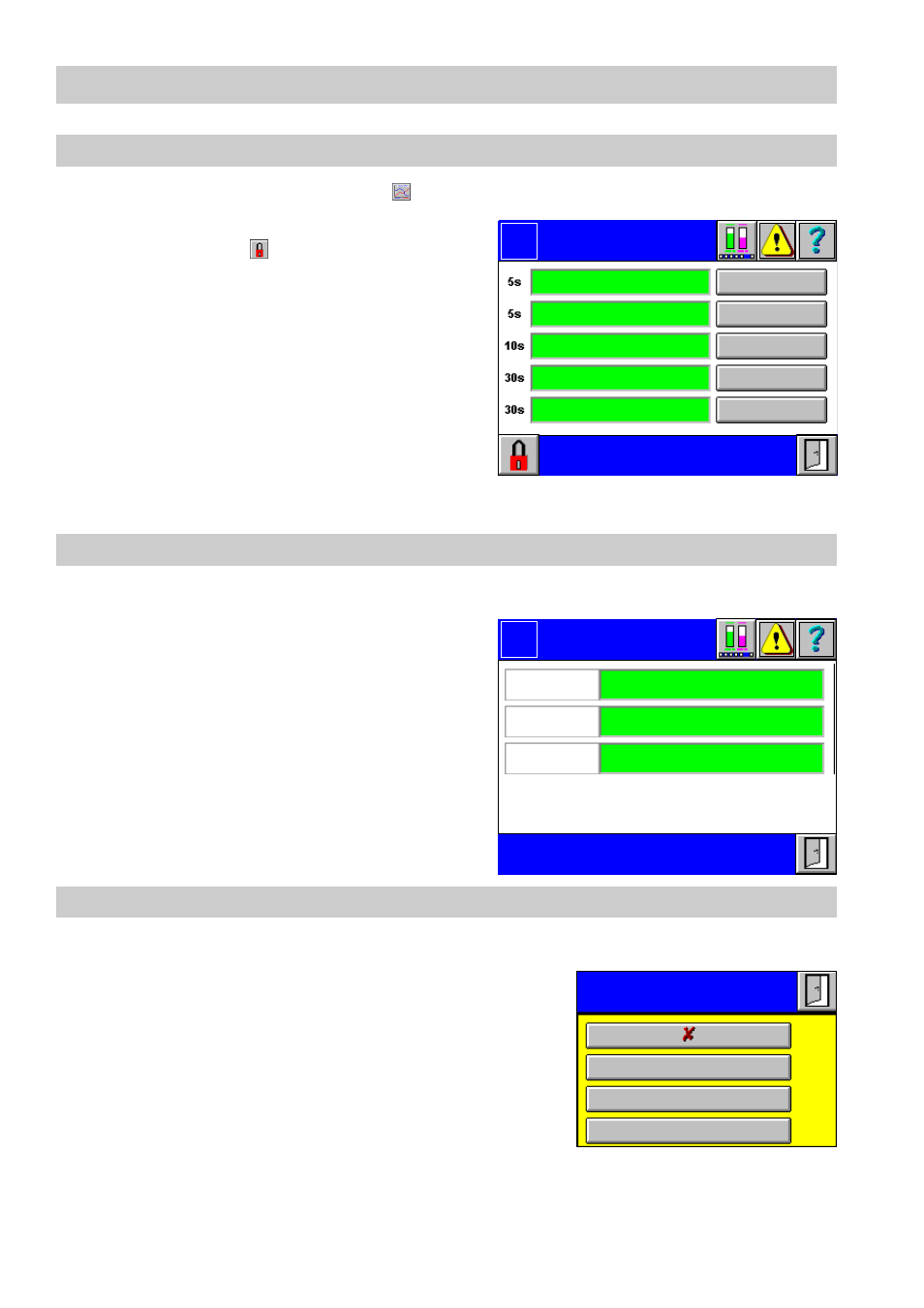

Datalogs
1.
In the menu
Boiler
press button
.
2.
The menu
Datalogs
is password protect-
ed. Press button
and enter your pass-
word.
3.
The green input fields list the designations
of the datalogs in question. The left col-
umn indicates the recording intervals.
4.
To configure a datalog, press button
Data-
log 1...5
.
5.
To show a datalog click in the respective
input field. The menu
Datalog 1...5
pops
up.
Datalog 1...5 setup
1.
Press button
Datalog 1...5
in the menu
Datalogs
.
2.
To name a datalog click in the input field
Name
.
3.
The current value appears in the input
mask. Use the on-screen keyboard to
overwrite or modify the value.
4.
To select a signal click in the green input
field. The menu
Select signal channel
1...2
pops up.
S elect signal channel 1...2
1.
Click in the respective input field of the menu
Datalog 1...2 Setup
.
2.
Select the signal that indicates the required param-
eters. Press one of the buttons to show all adjusted
signals.
For more information on the setup and configura-
tion of the equipment see menus CAN Input, Ana-
log Input or Burner.
