3-element controller
1.
Press button
in the menu
Controller
.
2.
The menu
3-element controller
is pass-
word protected. Press button
and enter
your password.
3.
The name of the controller is highlighted in
yellow.
4.

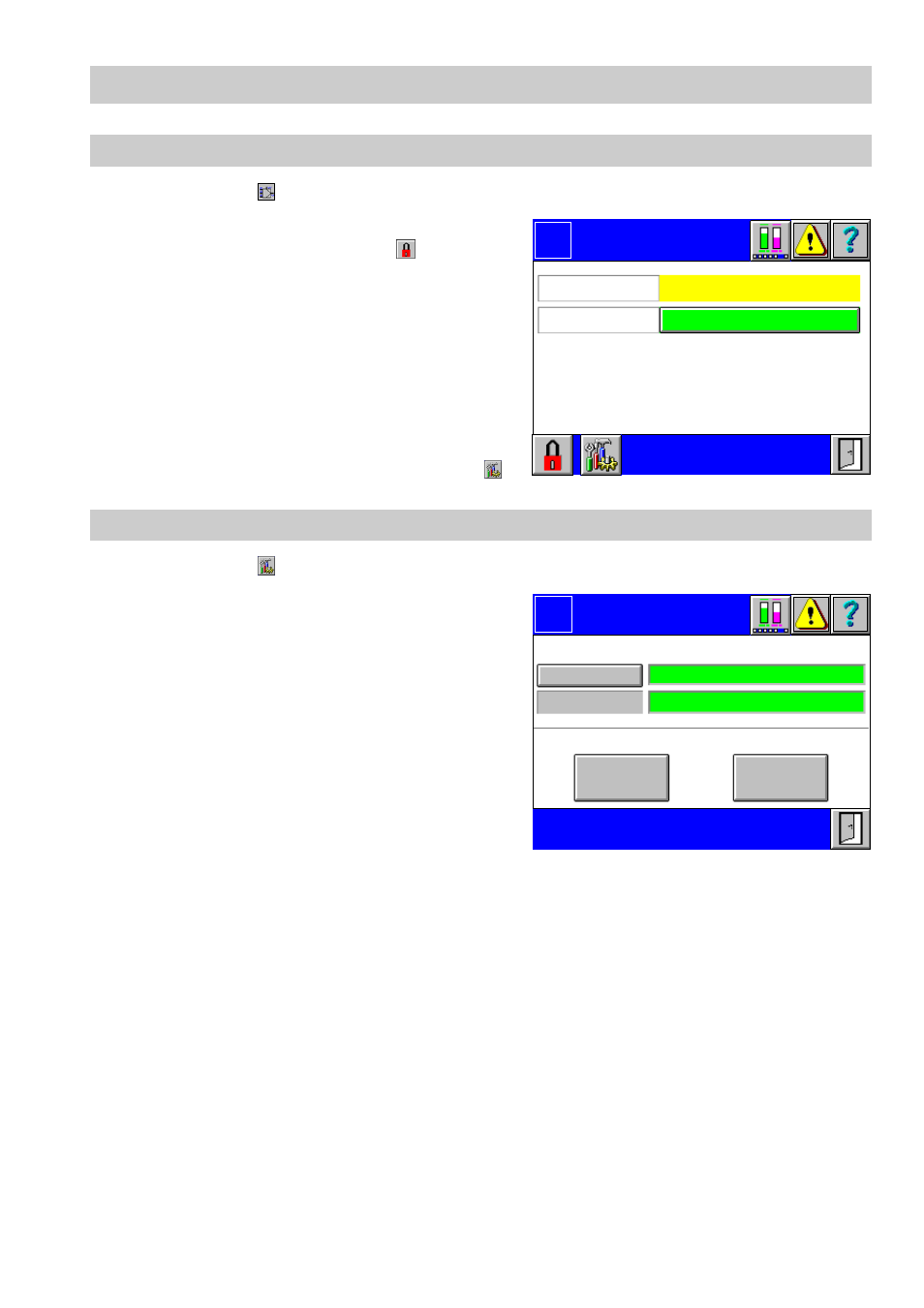

If a controller has been adjusted, the type
of controller will be indicated. Click in the
green input field to open the menu
3-ele-
ment ... controller
.
5.
To configure the controller press button
.
3-element controller setup
1.
Press button
in the menu
3-element controller
.
2.
The green input field at the top shows the
name of the controller in question. To
change the name of the controller click in
the input field.
3.
The current value appears in the input
mask. Use the on-screen keyboard to
overwrite or modify the value.
4.
The controller can be enabled or disabled
by a digital input. Click in the green input
field at the bottom to go to the selection
menu.
5.
Select the signal that shall enable (1) or disable (0) the controller. You will find more
information on equipment setup in the menu Digital Inputs. If no signal has been se-
lected, the acronym NC (not connected) is indicated. This means that the controller
is permanently enabled. The field
Enabled/disabled
indicates the status.
6.
Use the two controller buttons to activate the respective controller.
7.
Use button
Off
to de-activate the controller.
8.
If no controller type has been selected, the status indicator indicates
Off
. If a control-
ler has been selected, the respective button is highlighted in yellow and the status
indicator indicates
On
.
9.
To configure the controller press button
Continuous controller
or button
3-pos.
controller
.
3-Element
controller
Logo
not parameterised
Name:
Parameterised as:
3-element
controller
Logo
Controller name:
Status
Disabled
Off
Parameterised as:
Continuous
controller
3 pos.
controller
