70

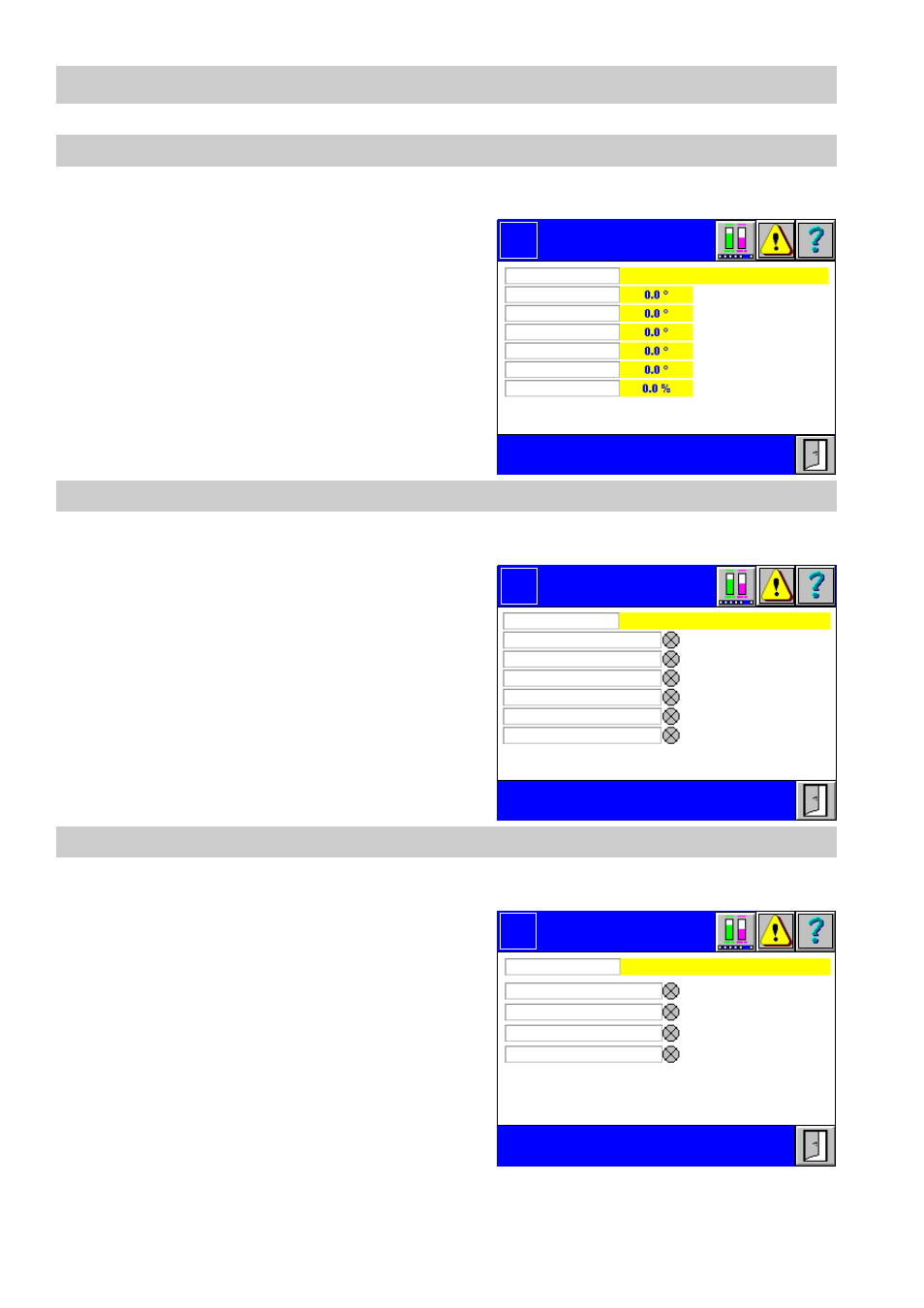

Burner Menu
– con tinued –
P osition of actuator
1. Press button Pos. of actuator in the menu Burner .
2. The menu shows the values of the burner
motors in the current operating phase.
Common inputs/outputs
1. Press button Com. inputs/outputs in the menu Burner .
2. The menu shows the values of the burner
control in the current operating phase. A
yellow signal indicates ON and a grey sig-
nal indicates OFF.
Controller
1. Press button Controller in the menu Burner .
2. The menu shows the values of the burner
controller in the current operating phase. A
yellow signal indicates ON and a grey sig-
nal indicates OFF.
Position
of actuator
Logo
Phase
Air actuator
Auxiliary actuator1
Frequency
Fuel actuator
Auxiliary actuator2
Auxiliary actuator3
Common
inputs/outputs
Logo
Phase
Start signal (A)
Fan contactor (E)
Safety chain (E)
Alarm
Air pressure (E)
Fan motor (A)
Controller Logo
Phase
Temperature controller
Ext. thermal requirement
Current setpoint
Current actual value
