Boiler Menu
Boiler
To enter boiler data press button in the menu Overview .

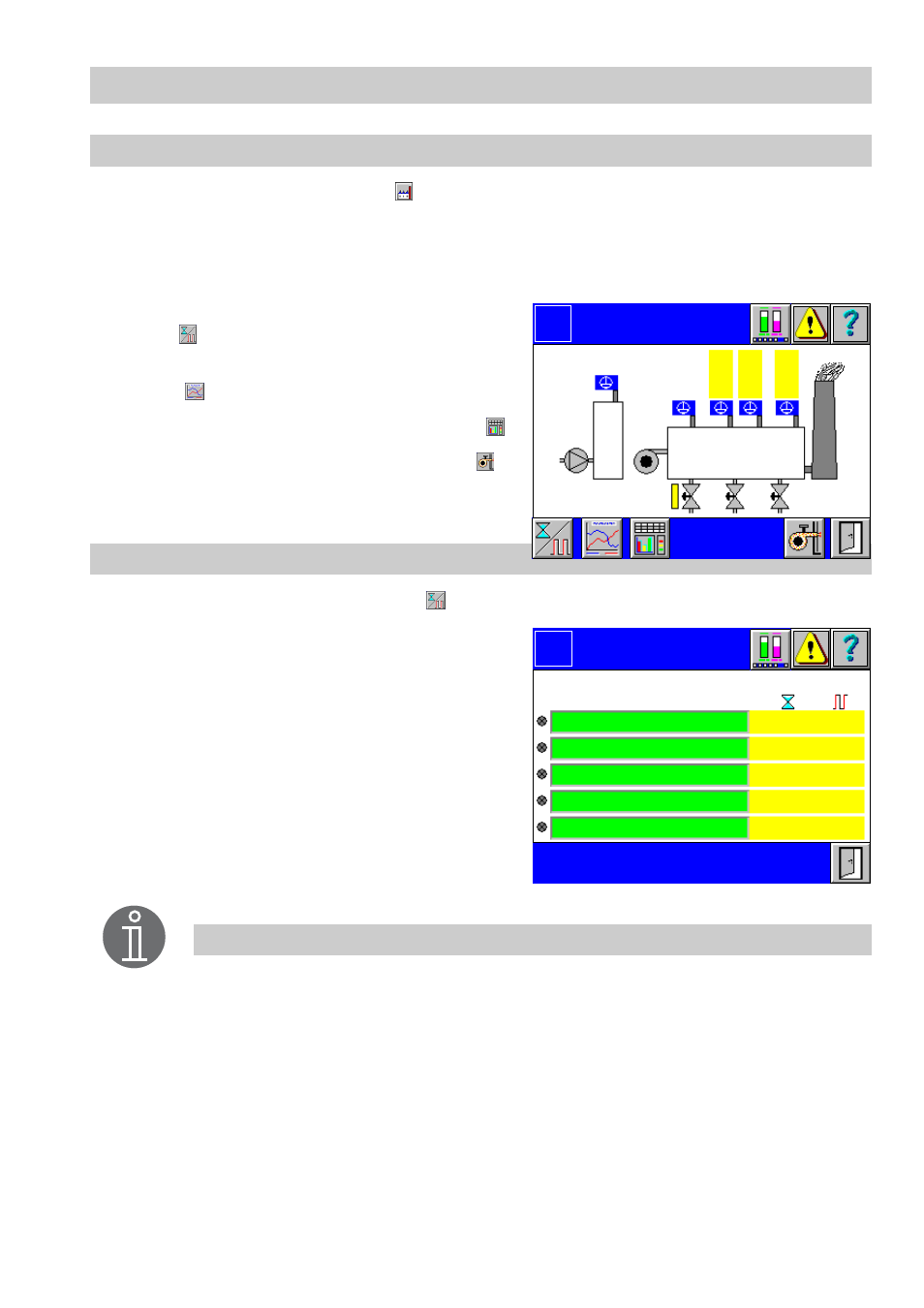

The graphical user interface is customized and corresponds to the schematic
representation of the boiler installation and its most important valves.
The following menu shows an example.
■ To enter or call up maintenance parameters
press .
■ To configure or evaluate the datalogs press
button .
■ To adjust or call up flowrates press button .
■ To go to the menu Burner press button .
Maintenance
1. In the menu Boiler press button .
2. The green input fields show the designa-
tions of the signals in question. The yellow
lamp at the left side indicates ON and the
grey lamp indicates OFF. The current op-
erating time (in min.) and the current
number of switching cycles for each signal
are highlighted in yellow. Currently active
alarms are directly indicated by red dots.
3. Click in the input field to establish or modify
the operating time and the switching fre-
quency.
Boiler Logo
N
W
1
0.00 %
0.0
µS
N
W
2
H
W
Maintenance Logo
Signal
0 : 00 0
Current values
Pump 1
0 : 00 0
0 : 00 0
0 : 00 0
0 : 00 0
Note
The on-times and switching frequencies of the selected digital inputs are
recorded by means of a cumulative time-meter.
