Maintenance 1...5 setup
1.
Click in the menu Maintenance in the green input field of the desired signal.
2.

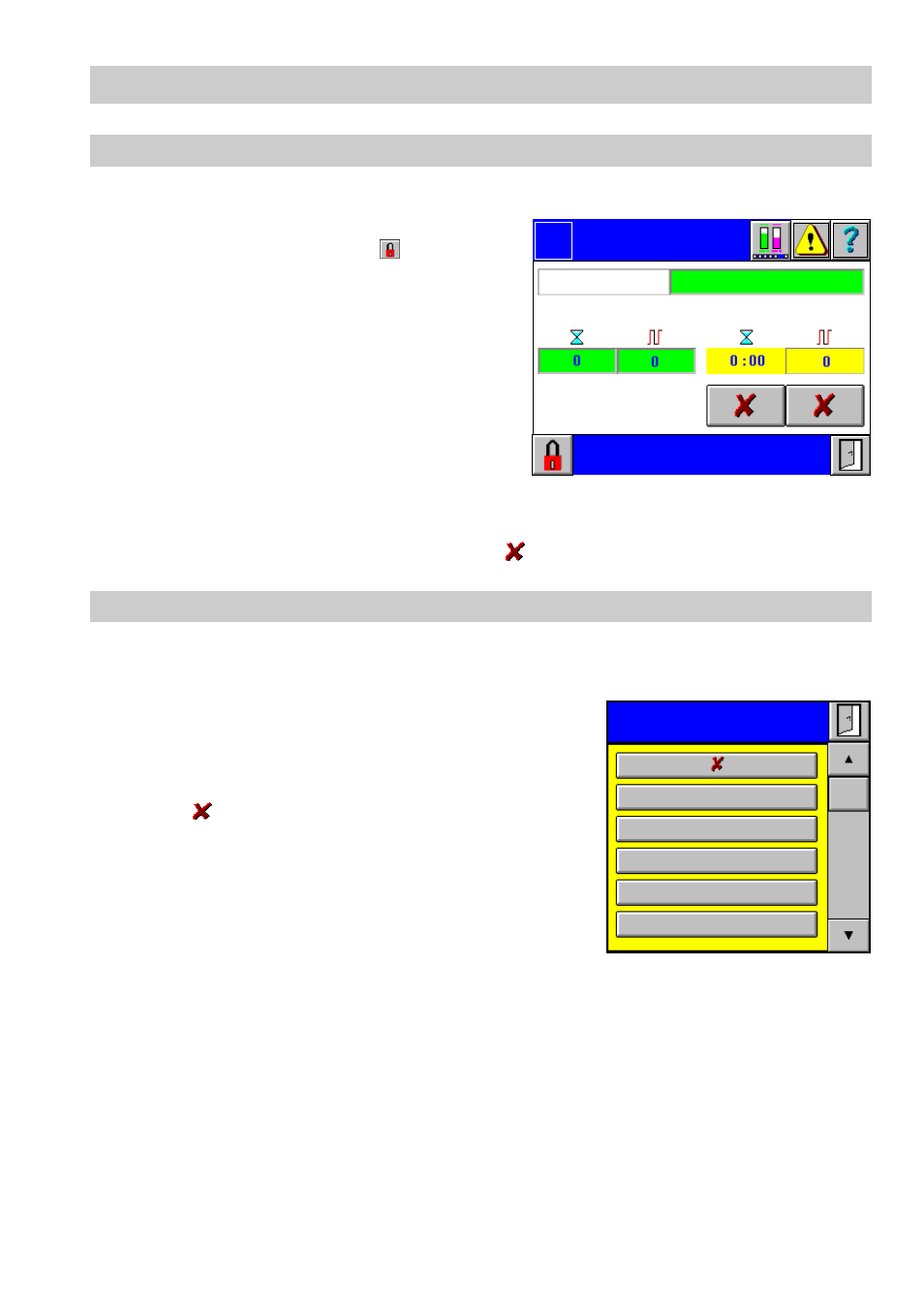

The menu
Maintenance 1...5 Setup
is
password protected. Press
and enter
your password.
3.
To enter or change a signal assignment
click in the green input field. The menu
Digital input signal assignment
pops up.
4.
To enter or modify run time limits or switch-
ing frequencies click in the input field that
you want to change.
5.
The adjusted value appears in the input
mask. Use the on-screen keyboard to
overwrite or modify the value.
6.
To delete the current values press button
below the value to be deleted.
Signal assignment of digital input
1.
Click in the menu
Maintenance 1...5 Setup
in the green input field for the signal as-
signment.
2.
To select the digital input press the respec-
tive button. If necessary use the vertical
scroll bar.
3.
To delete the currently adjusted signal
press
. Acknowledge the delete function
in the dialog box.
Maintenance
1...5 setup
Logo
Signal assignment
Current values
Limits
DI Signal Assignment
