54
Controller Menu
– continued –

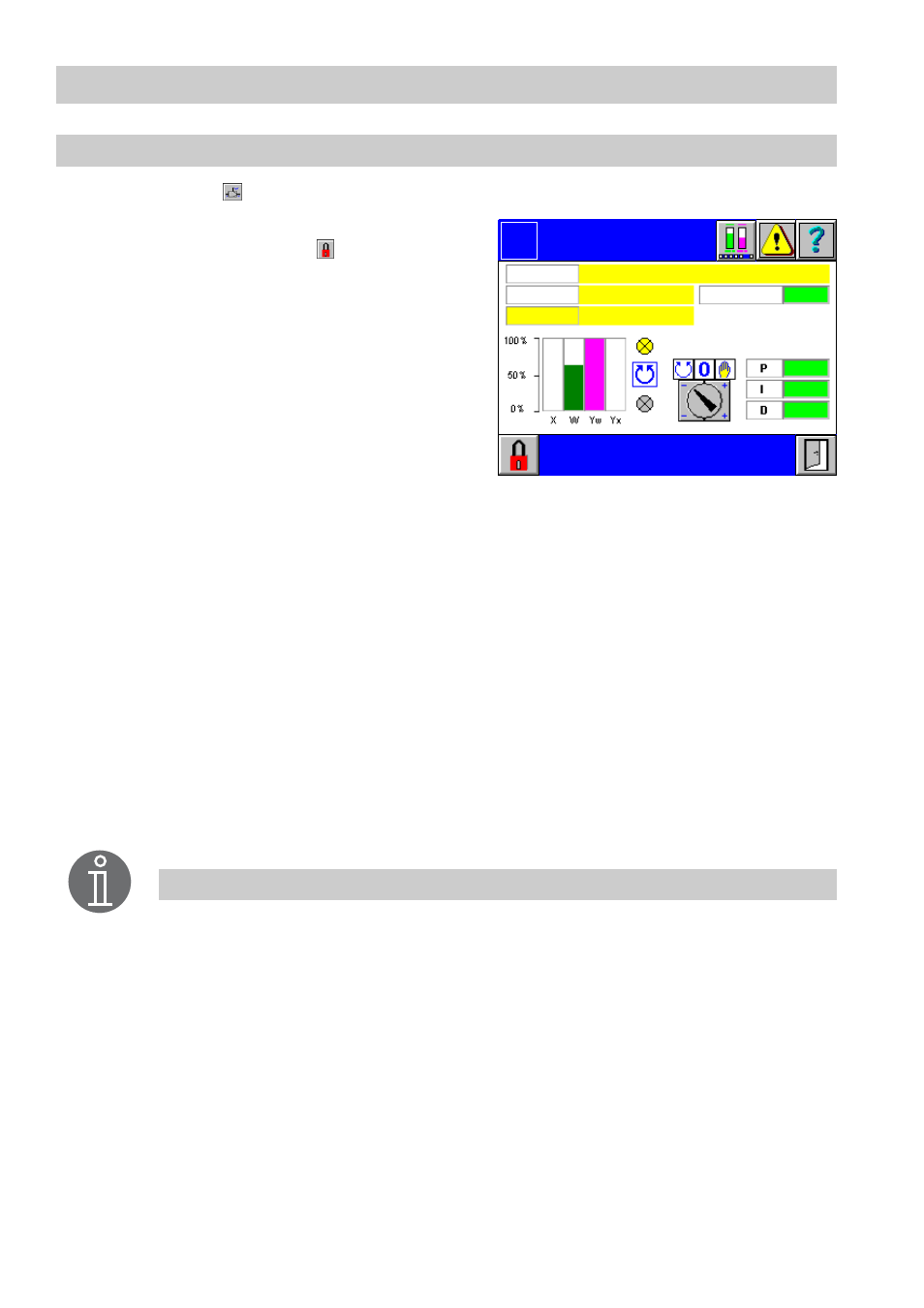

3-pos. controller
1. Press button in the menu 3-pos. controller setup .
2. The menu 3-pos. controller is password
protected. Press button and enter your
password.
3. The name of the controller is highlighted in
yellow. Below that the current actual value
and the setpoint are indicated.
4. To change the internal setpoint click in
the green input field.
5. The current value appears in the input
mask. Use the on-screen keyboard to
overwrite or modify the value.
6. Use the button to activate either automatic operation, off or manual operation. The
adjusted mode of operation will be indicated by a larger icon next to the button.
7. If manual operation is activated, a new mask with buttons will pop up. Use the buttons
to open or close the valve continuously. The selected button is highlighted and the
lamps at the left hand side of the buttons indicate the valve lift.
8. Use the input fields P (proportional), I (integral) and D (differential) to enter the control
parameters of the PID controller.
9. The current value appears in the input mask. Use the on-screen keyboard to over-
write or modify the value.
10. Below the status indicator Enabled/Disabled and the adjusted controller the actual
value (X), the setpoint (W), the manipulated variable (Yw) and the position feedback
(Yx) are graphically represented in the form of a bar chart.
3-pos. controller Logo
Controller 1
Actual
Enabled
0.0 % 0.0
0.0
0.0
0.0
Int. setpoint
Note
In this menu only an internal setpoint can be established.
If you change the switch setting from automatic operation to Off, the current
manipulated variable (Yw) of the controller will be transferred. This applies
only if the equipment is used as position controller.
If position feedback parameters have been entered, the controller will function
as a position controller. If no position feedback parameters have been entered
or the associated sensor is defective, the controller will work as 3-position
stepping controller.
