39
Menus of Inputs/ Outputs
– con tinued –

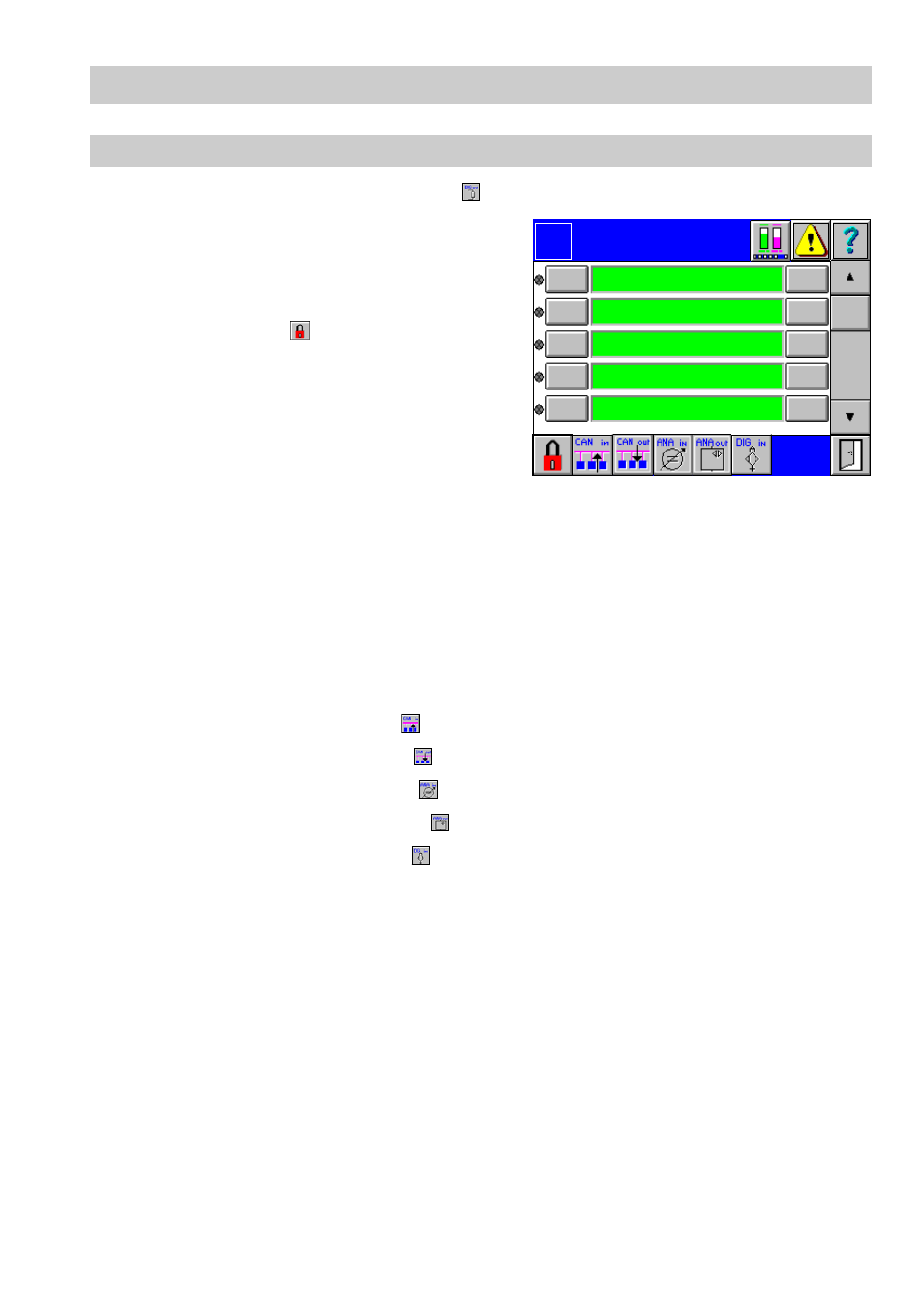

Digital outputs
1. In the menu Inputs or Outputs press .
2. The display field shows the connected
signals. Active outputs are indicated by a
yellow signal at the left side.
3. The menu Digital Outputs is password
protected. Press and enter your pass-
word.
4. To designate a signal click in the green in-
put field.
5. Use the on-screen keyboard to overwrite
or modify the value in the input mask.
6. To show the status of a signal press button Signal 1...10 at the left side. A new menu
will pop up.
7. Press button Alarm to link the digital output with an alarm (HiHi/LoLo) of the CAN
inputs or with analog inputs.
8. Select the signal that indicates the required parameters. For more information on the
setup and configuration of the equipment see chapters CAN Input and Analog Input.
After selecting an input establish the alarm limit HiHi or LoLo. When the alarm is
raised the digital output will be switched off.
9. To go to the CAN input press .
10. To go to the CAN output press .
11. To go to the analog input press .
12. To go to the analog output press .
13. To go to the digital input press .
Digital
Outputs
Logo
Sig. 1 Designation
Sig. 2
Sig. 3
Sig. 4
Sig. 5
Alarm
Alarm
Alarm
Alarm
Alarm
