User Interfaces
– continued –
Menu overview

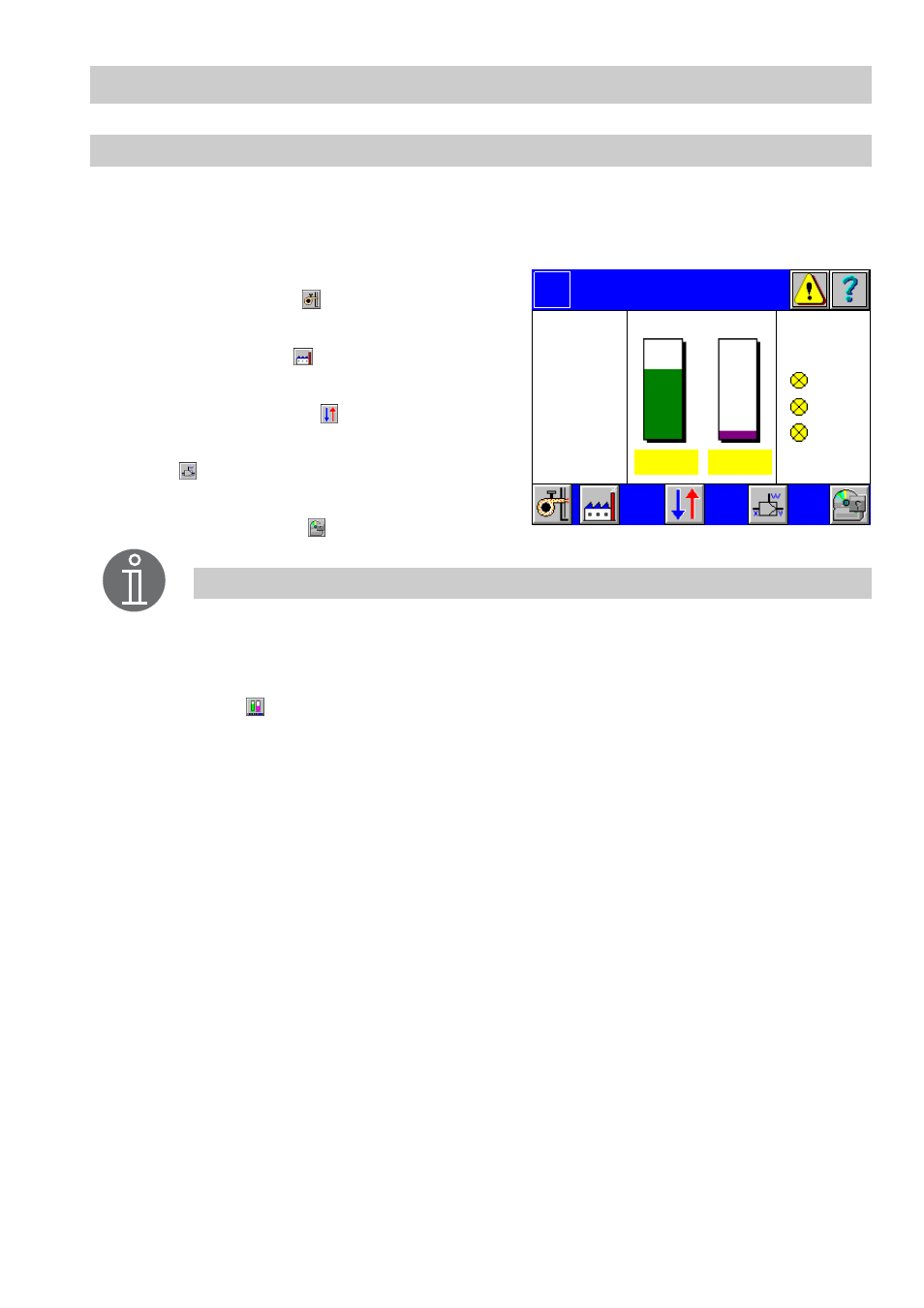

The display field shows all important current parameters of the boiler, e. g. level (CAN
input 1) and conductivity (CAN input 2) as well as specific burner data. The display is
made to the customer's specification and therefore serves here only as an example.
■ To show the configuration or current values
of the burner, press
.
■ To show the configuration or current values
of the boiler, press
.
■ To show the values or configuration of
inputs / outputs, press
.
■ To show or configure values of the controller,
press .
■ To show the configuration or current values
of the system, press
.
492.9 µs 71%
Overview Logo
Level Burner Boiler Conductivity
P 20.0%
Actual 87.0 °C
Setp. 88.0 °C
O² - 0.1% HW
LW 2
LW 1
Note
CAN input 1 is linked with level indication and CAN input 2 with conductivity
indication in the menu
Overview . The values of equipment configured for
these inputs are shown in the menu Overview .
Use , which is not shown in this menu, to jump from all submenus directly
to the menu Overview . If no inputs are made within a certain period of time,
the system automatically returns to the overview menu.
