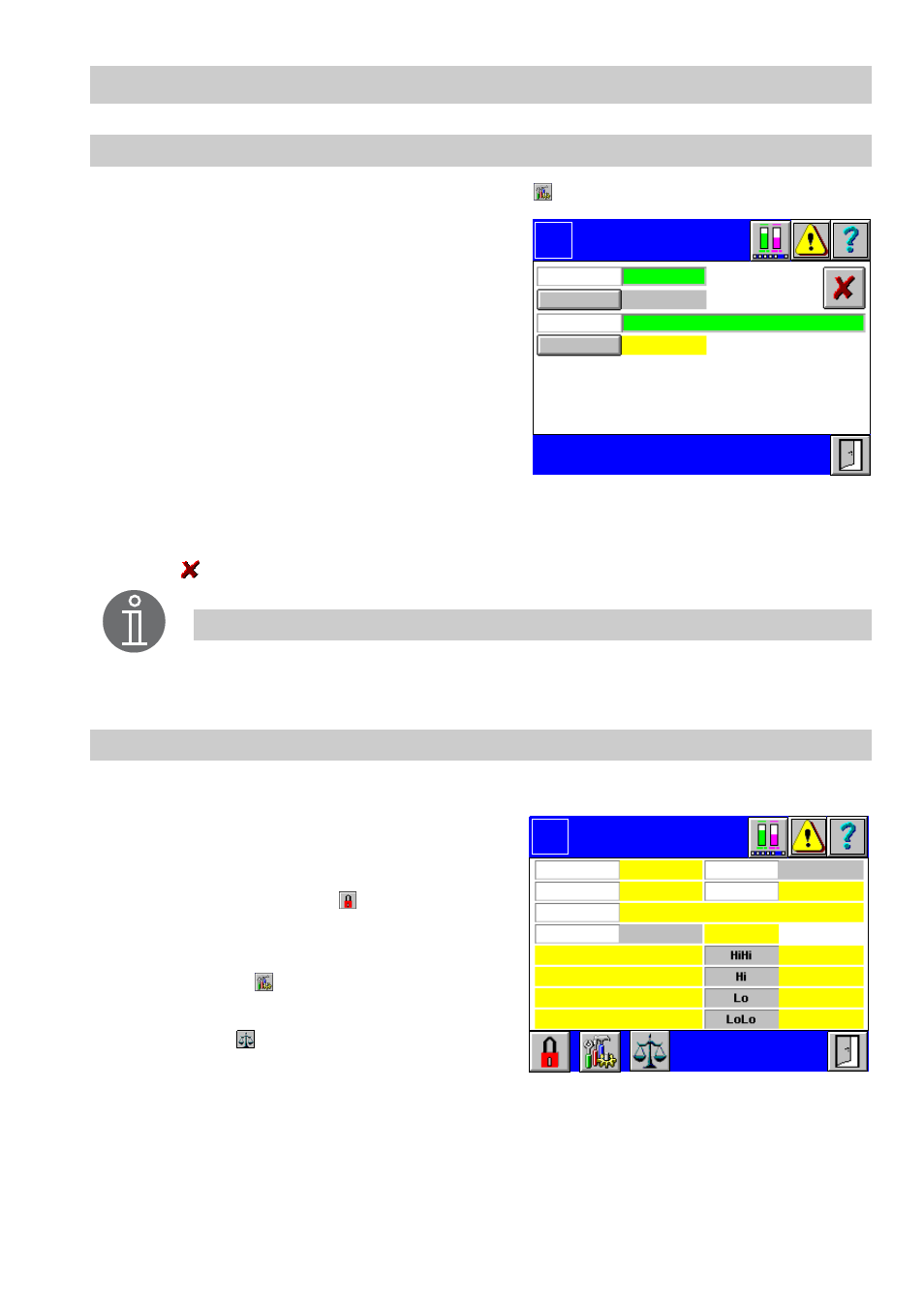

NRG 16-42 setup
1.
In the menu
NRG 16-42 CAN 1...10
press
.
2.
To establish or change the node ID
click in the green input field.
3.
Use the on-screen keyboard to overwrite
or modify the value in the input mask.
4.
Use button
Node On/Off
to activate or de-
activate the node ID.
5.
To name the NRG 16-42 click in the input
field
Name
.
6.
Use the on-screen keyboard to overwrite
or modify the value in the input mask.
7.
Use button
Sense 10/ 0.5 µS
to toggle between the two values. The adjusted value
is highlighted in yellow.
8.
Use
to delete the adjusted equipment or to change the type of equipment.
LRG 16-40 CAN 1...10
1.
Click in the menu
CAN 1..10 Input
in the green input field of the device in question
2.
The display field shows the current values
of the equipment.
3.
The menu
LRG 16-40 CAN 1..10
is pass-
word protected. Press
and enter your
password.
4.
To show the menu
LRG 16-40 Setup
press button
.
5.
To access the menu
LRG 16- 40 Calibra-
tion
press
.
NRG 16-42
Setup
Logo
0
Name
Node Off
Node ID
0.5 µS
Node On
Sense 10 µS
Delete
electrode?
Note
The node ID settings of SPECTOR
control
must agree with the settings of the
respective devices.
LRG 16-40
CAN 1
Logo
0
Name
0.0 µS
Off
Node ID
1234567890
Electrode online
Temp. in terminal box OK
Reading
Node
0 °C
0 µS
Temperature
0 µS
0 µS
0 µS
Electrode OK
PT1000 OK
Off
Compens.
