Chapter 3 - Using the Command Line Interface (CLI) 3-3
MN/22137, rev 1 Menu Descriptions
Menu Descriptions
This section details the CLI menus and associated screens, and briefly discusses
the function of each of the commands available on each menu.
Main Menu
The Main Menu, shown in figure 3-1, allows configuring both the Demodula-
tor and Router functions of the target CDD-56X.
Note: The menu item Vipersat Configuration shown in figure 3-1 will only be
displayed if the target CDD-56X has had the Vipersat option enabled as
described in the section “Setting Vipersat CDD-56X Operating Parame-
ters” on page 2-3.

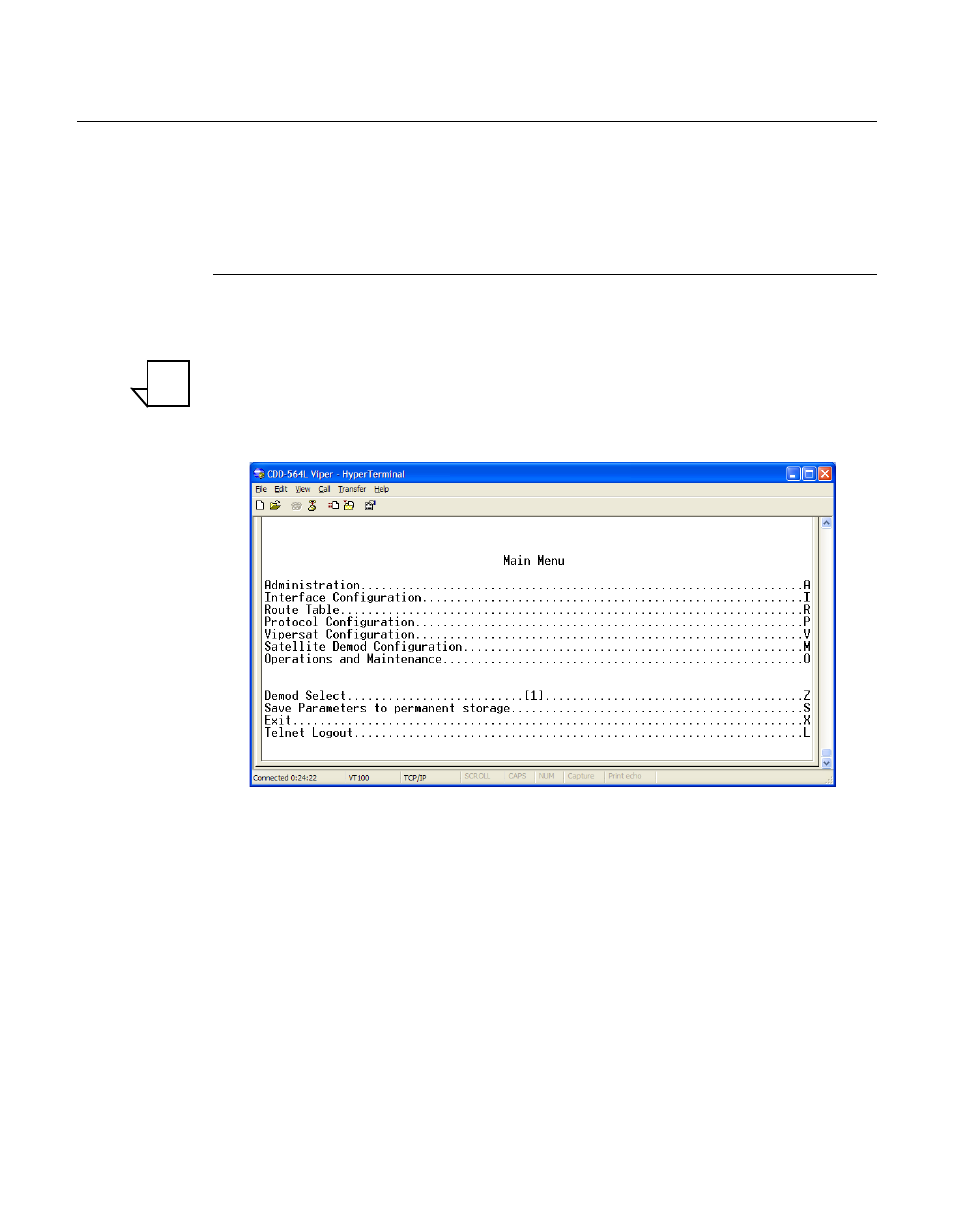

Figure 3-1 Main Menu screen
A Vipersat CDD-56X is normally shipped with the Vipersat option enabled.
The CDD-56X configuration can be determined by whether or not the command
line Vipersat Configuration is displayed on the menu, as shown in Figure 3-1.
Administration
The Administration menu provides access to the major Vipersat CDD-56X
features and commands. Entering an A at the prompt in the Main Menu, shown
in figure 3-1, displays the Administration screen shown in figure 3-2.
