Page 134: Remote (cdm-570l)
Entry Channel Mode Switching
MN/22137, rev 1
B-34
Vipersat CDD-56X Series User Guide

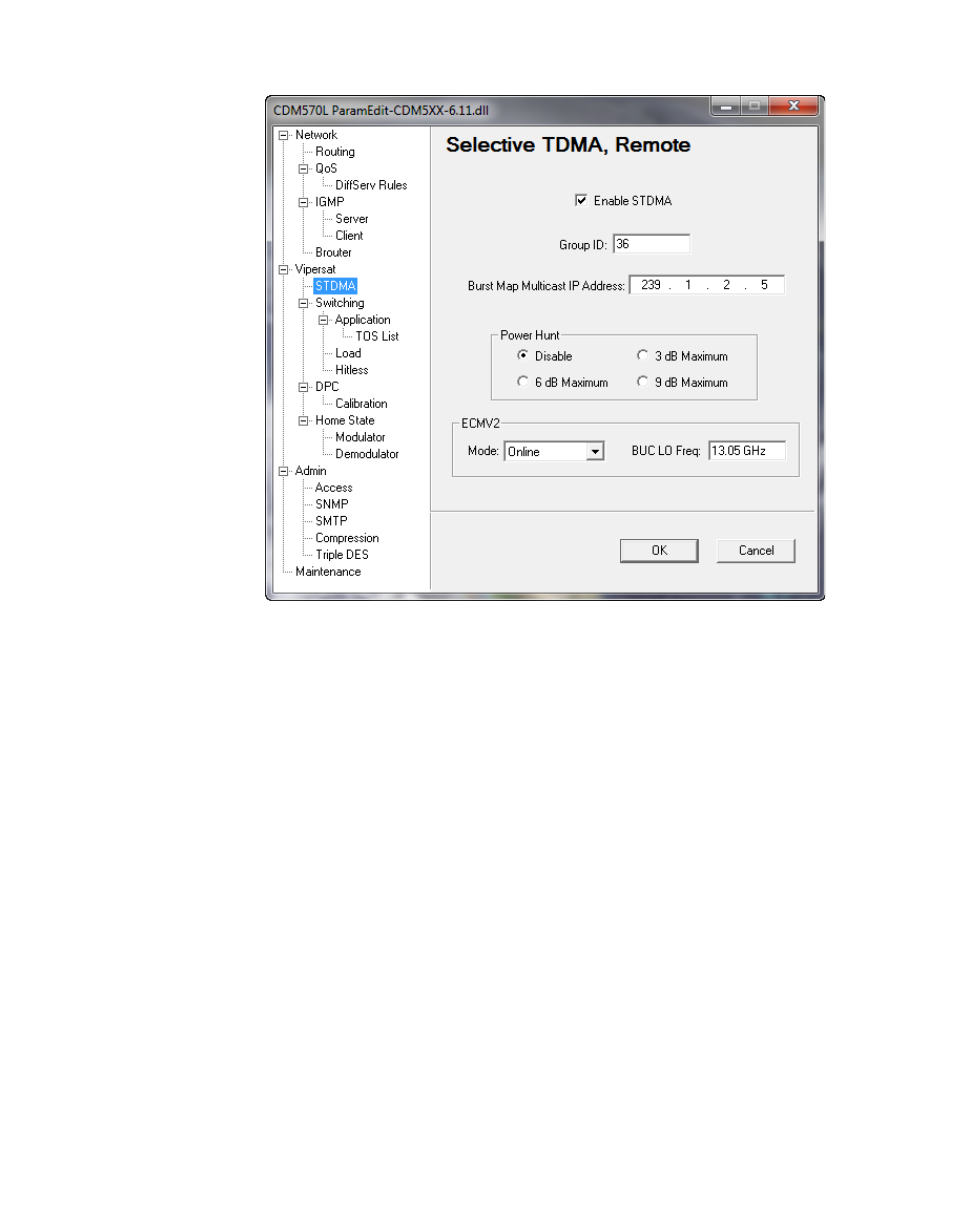

Figure B-21 Entry Channel Mode v2 Configuration, Remote (CDM-570L)
ECM Processing
A detailed representation of the sequence of steps that occur between the Hub
units (the channel controller and a switched demodulator), the Remote unit, and
the VMS during the ECM process is shown in figure B-22.
