CPA C-Band Indoor Solid State Power Amplifier Revision 1
Ethernet-based Remote Product Management MN/CPA-IN.IOM
6–20
Use the drop-down list to force SSPA#1 or, for 1:2 redundancy only, SSPA#2 to replace the
active operating SSPA as the primary unit.
For 1:1 configurations, the Backup SSPA is always fixed as SSPA#1.
Select the desired Backup SSPA, and then click [Change Backup Mode] to bring the primary unit
OFFLINE and take the selected Backup SSPA ONLINE.
6.4.4.4 Status pages
Use the ‘Status’ pages to monitor operations, review and manipulate the stored events, review
configuration parameters, etc.
Select the Events, Status, or FETs hyperlink to continue.
6.4.4.4.1 Status | Events
Use this page to monitor the current operating state (i.e., OK or faulted) of a variety of features,
and provides a scrollable stored events window showing the logged system faults and events.

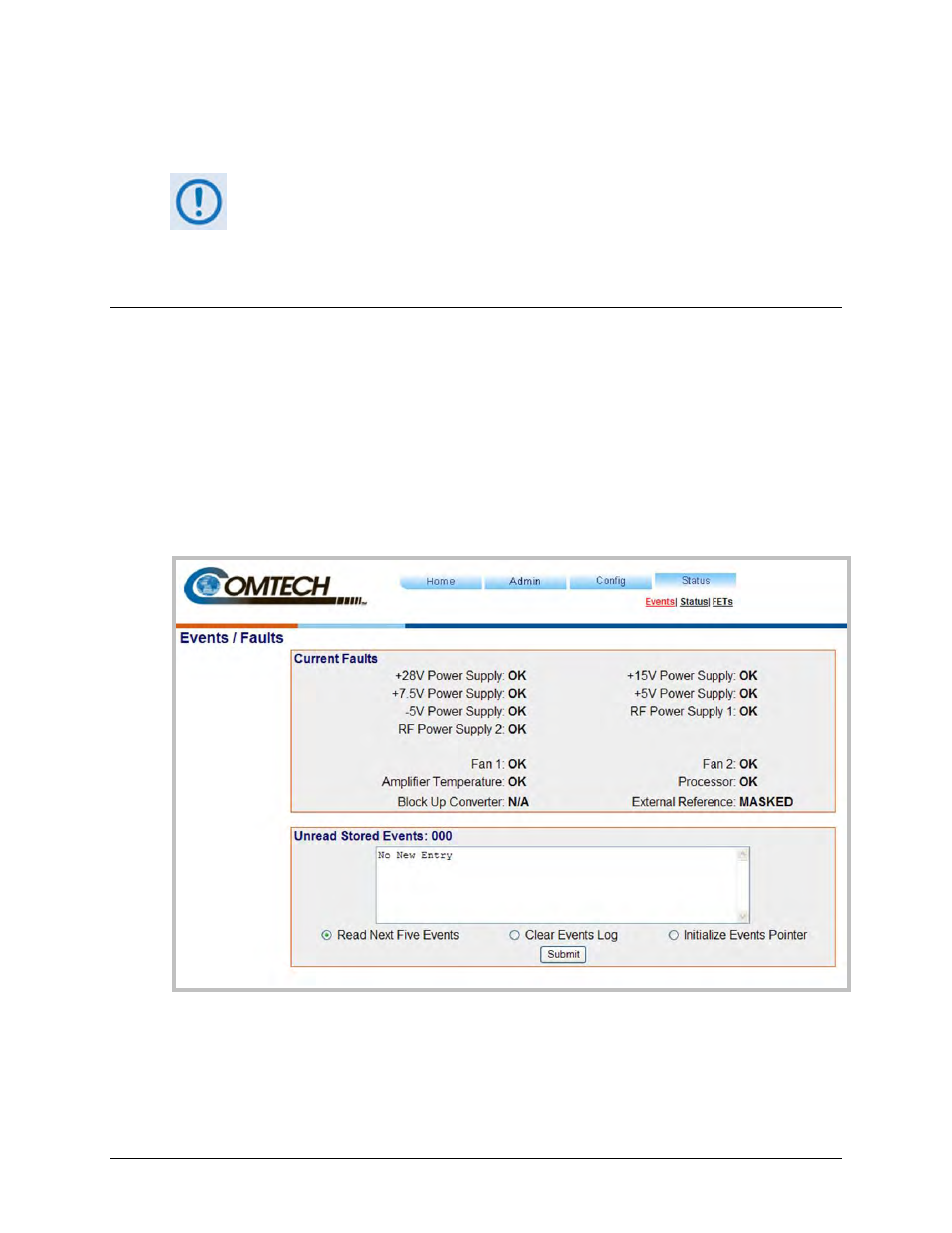

Figure 6-10. Status | Events page
Current Faults
This read-only section provides the current operating state of the SSPA. The information provided
may vary based on the SSPA’s active/optional operating features.
