Serial
• Interface Type – Use the drop-down list to select the operating serial mode as RS-485 or
RS-232.
• Remote Address – Enter a valid remote control address from 0001 to 9999.
• Baud Rate: – Use the drop-down list to select the operating baud rate as 100, 2400, 4800,
9600, 19200 or 38400 baud.
• Data bits / Stop Bits / Parity – Use the drop-down lists to select the asynchronous character
format as:
o 8-N-1 (8 data bits, no parity, 1 stop bit)
o 7-O-2 (7 data bits, odd parity, 2 stop bits)
o 7-E-2 (7 data bits, even parity, 2 stop bits).
Click [Change Serial Configuration] to save.
Alarm Mask

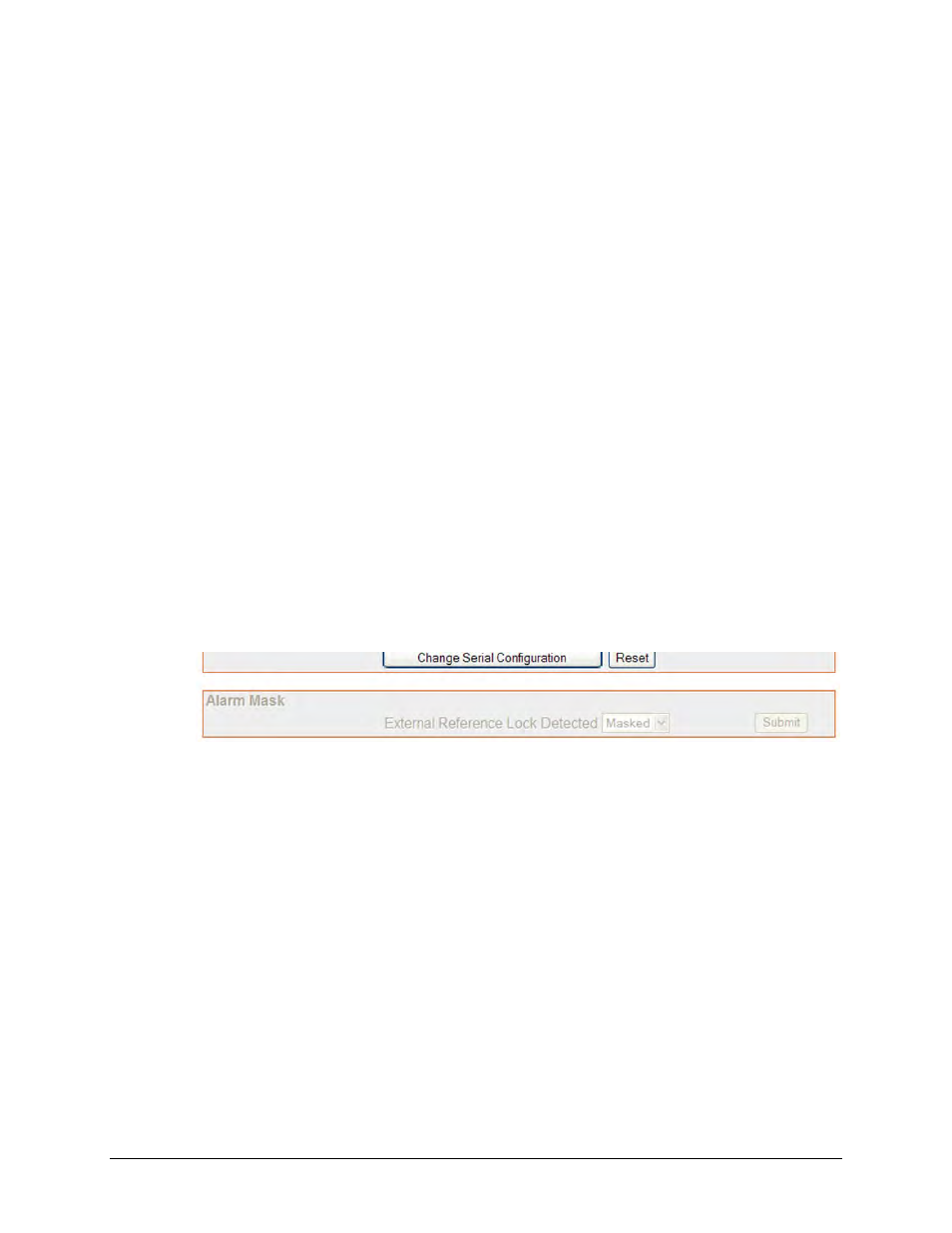

Note that, when the External Reference hardware option is not installed, this section is dimmed
and non-functional:
Otherwise, when the External Reference hardware option is installed, use the drop-down list to
define the External Reference Lock Detected alarm as Masked or Active, and then click
[Submit] to save.
