2.2 Operator panels
There are two operator panels for handling the machine. The operator panel for the dispenser
is shown below, it has a 4 digit LED display and 4 membrane keys.

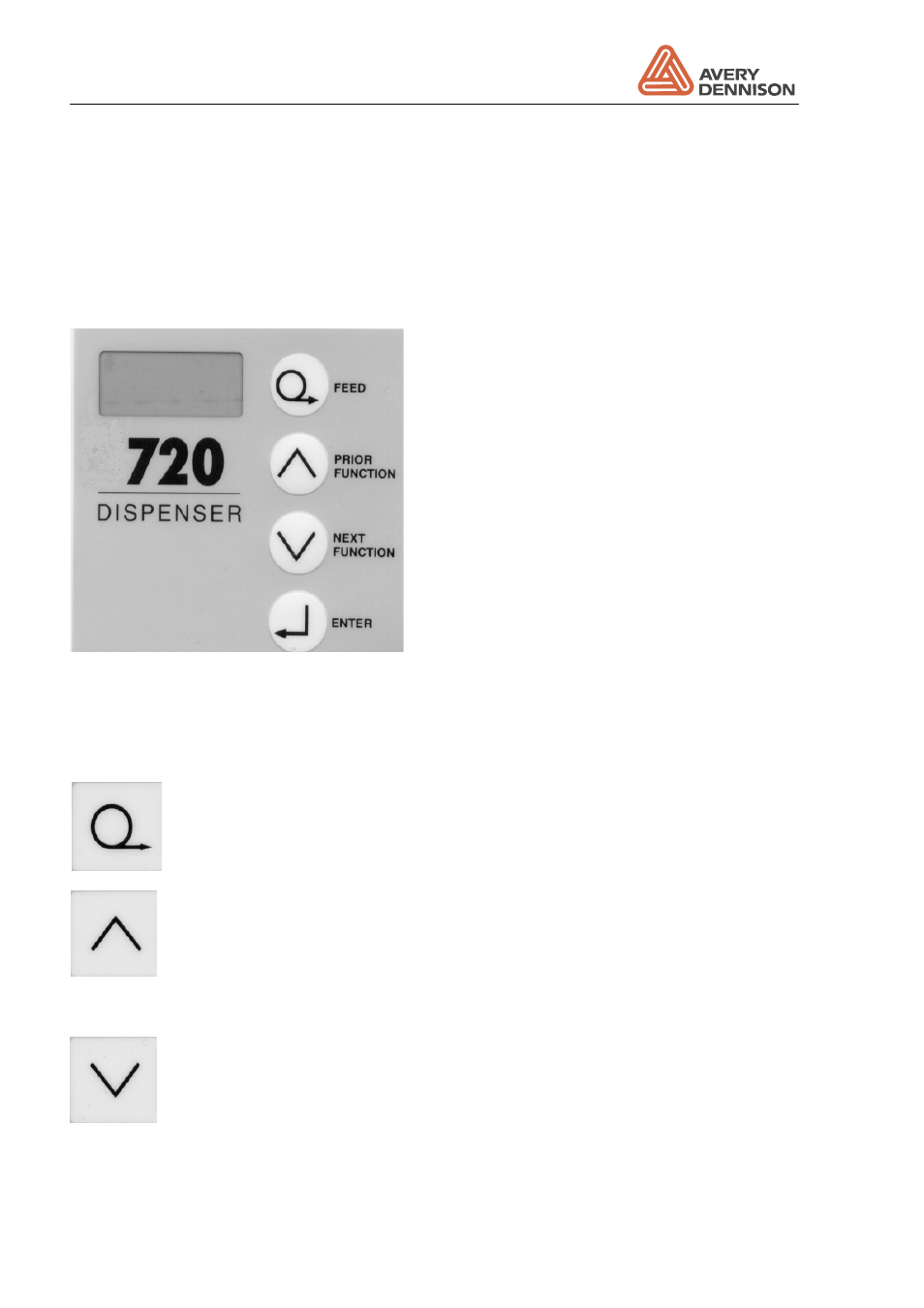

Figure 2 Operator panel dispenser
The 4 soft keys have following functions:
FEED
By pressing this key one label will be dispensed. When the machine
displays INIT pressing this key will start initialisation of the machine. An
initialisation has to be made each time a new material is used. If the FEED key is
pressed and held as the machine is turned on then the machine carries out an
automatic initialisation of the label parameters "CONT" and "LPIT".
PRIOR
This key moves up the menu or increases the value of a (Prior
function) parameter. If the up arrow key is pressed and held as the machine is
turned on the product menu is selected.
NEXT
This key moves down the menu or decreases the value of a (Next
function) parameter. If the down arrow key is pressed and held as the machine is
turned on the standard menu is selected.
