Avery Dennison ALX 720 - Manual (Page 102)

Operators Manual
ALX 720
4/09 Page 102 Connections and signals
10.2.3 Signals for the EP applicator
For controlling the applicator the signals air stream, cylinder valve and blow on are necessary.
After a product signal has occurred the labelling cylinder valve is switched active after the delay
STAD. However if at this time the applicator is not in the home position then error message
E__2 is generated. After the delay time APT1 the blow on valve is switched active for the time
APT2.
When APT2 is completed both the labelling cylinder valve and the blow on valve signals are
switched inactive. If the control does not read the home position in the time given - 3* (APT1+
APT2) - than the error message E__2 is generated.
Productstart
Cylinder valve
Dispense label
+ Airstream valve
Blowon valve
Homeswitch
1
2
Missing Label: Labeller not ready for dispense
Error: Applicator not in homeposition 3
Error: Homeposition not detected
STAD APT1
APT3
APT2
1
3
STAD
STAD
APT1 4 * (APT1 + APT2)
STAD
2

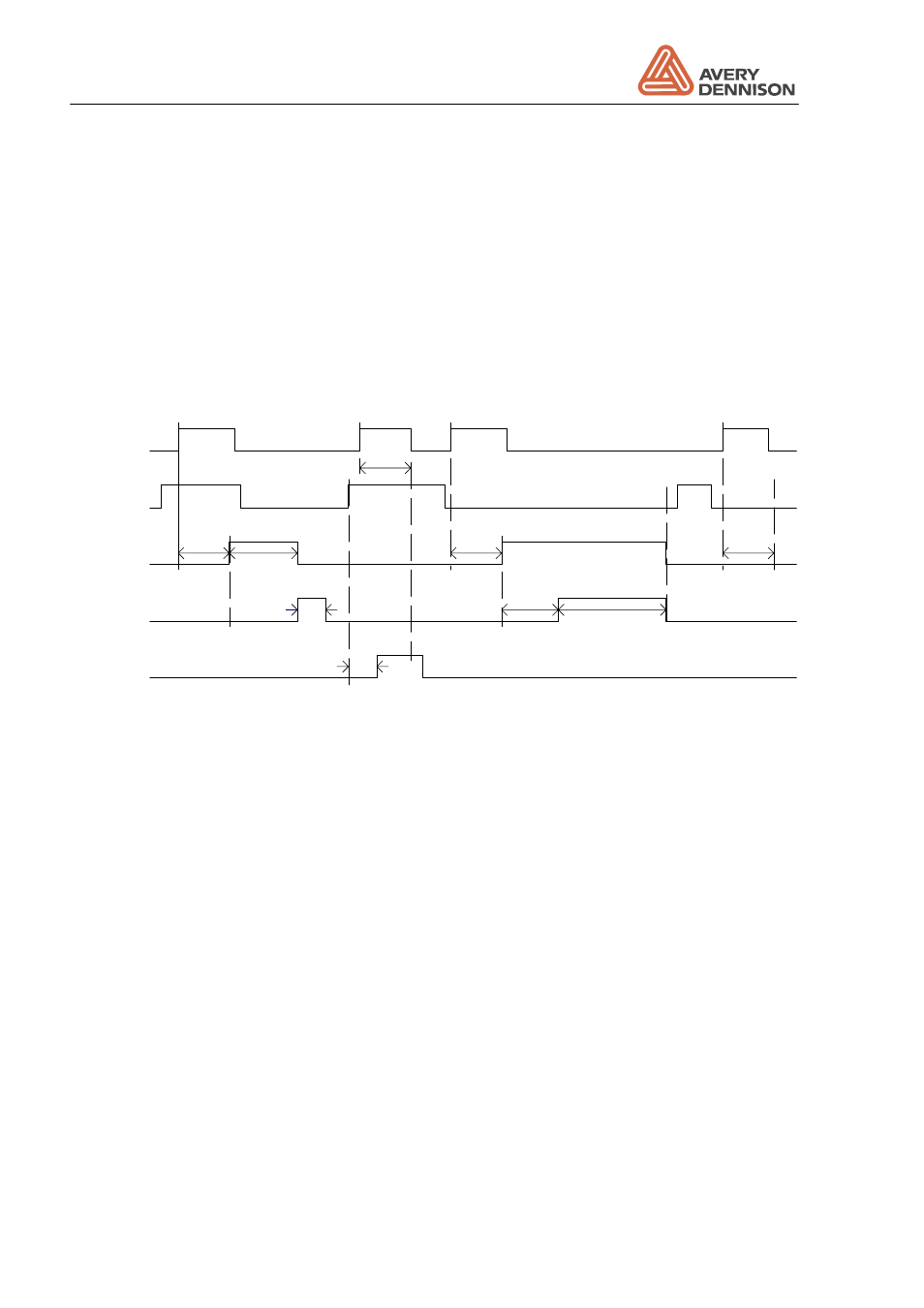

Figure 20 Timing EP applicator
